Connecting the telephone
Safety precautions
When installing, connecting and
operating the telephone, always
observe the following precautions:
u Only use the jacks and leads sup-
plied.
u Only connect the connecting
lead to the intended socket.
u Only connect approved accesso-
ries.
u Lay the connecting lead where it
will not cause accidents.
u Position the telephone on a non-
slip surface.
4
1
5
6
2
3
5

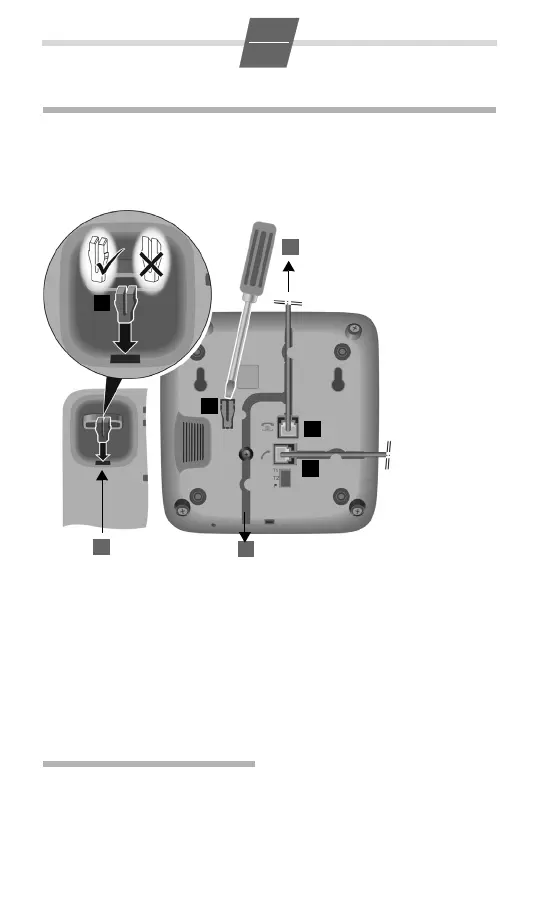

Wall mounting
¤ Drill two dowel holes into the wall at a distance of 99.4 mm and fix two
screws.
¤ Lift out the handset bracket (5) with a screwdriver and clip it into the hand-
set cradle (6).
¤ Hang the telephone on the projecting screw heads.
Please note: The handset bracket must be placed in the cradle with the slan-
ting edge facing forwards (see graphic), as otherwise the handset will not be
properly secured.
¤ Connect the telephone connector (1) to the main phone socket using the
supplied telephone cable.
¤ Guide the cable through the
cable channel of the handset
cradle: upwards for operating
the phone on the table (2);
downwards when mount-
ing the phone on the wall
(3).
¤ Connect the
handset to
the tele-
phone
using the
coiled
cable (4).
