Gilera Nexus 125 ie 2019 User Manual

01_14

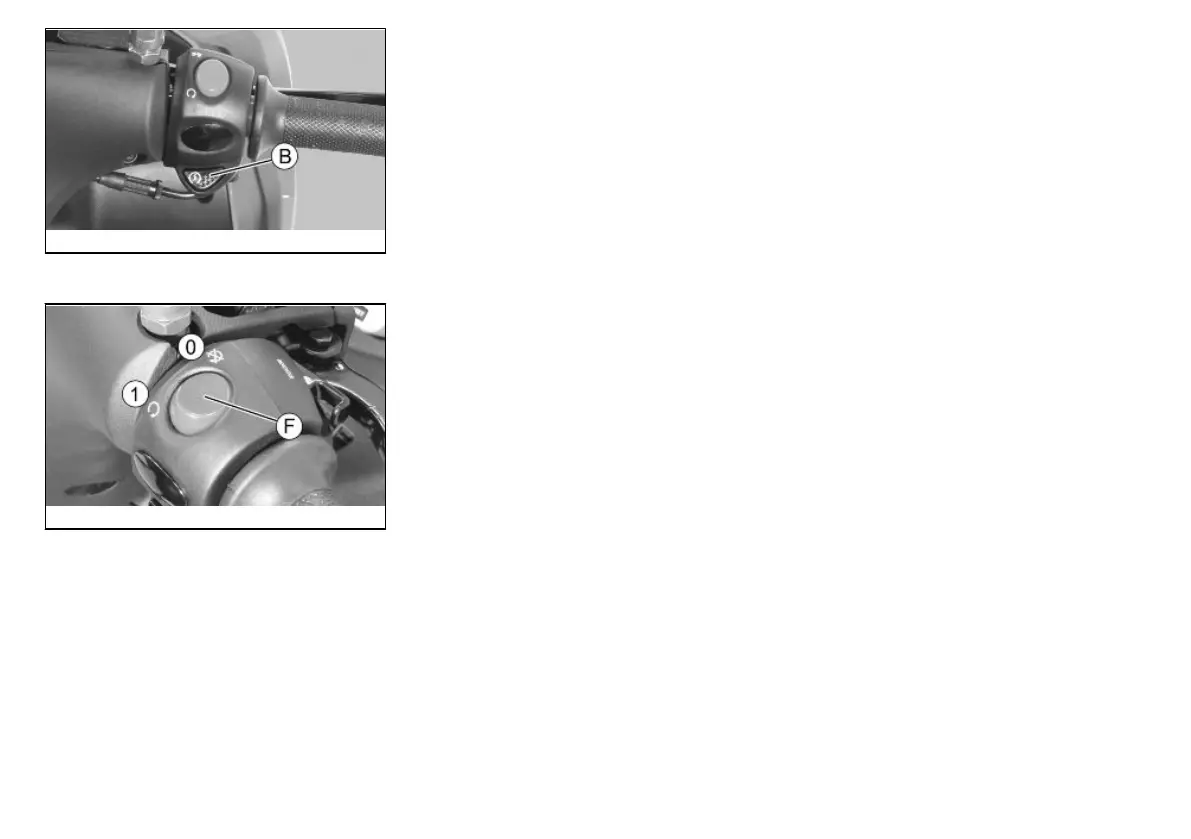

Start-upbutton (01_14)
To start the engine, pull either one of the two brake levers and press the starter button
«B».
01_15
Enginestopbutton (01_15)
The engine can be started when the emergency cut-off switch «F» is set to «1»
RUN; if the emergency cut-off switch «F» is set to «0» OFF , the engine cannot be
started, or it shuts off if it is already running.
Theimmobilizersystem
In order to enhance theft protection, the vehicle is equipped with a «PIAGGIO IMMO-
BILIZER » electronic engine locking device that is activated automatically when the
ignition switch is removed. Upon start-up, the «PIAGGIO IMMOBILIZER» system
checks the starter key, and only if this key is recognised will the Immobiliser system
allow the vehicle to be started.
19
1 Vehicle

Gilera Nexus 125 ie 2019 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	124 cc
Transmission	Automatic CVT
Fuel System	Electronic Fuel Injection
Seat Height	815 mm
Max Torque	9.2 Nm at 7, 250 rpm
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-15
Rear Tire	140/60-14
Length	2110 mm
Cooling System	Liquid-cooled
