Gilson HM-378 - Figure 5: Fire Brick Assemblies; Firebrick Component Diagram

Gilson Company, Inc. Gilson Binder Ignition System: HM-378
Page 22










 
RPHM-378-29
TopFireBrickAssembly–
AfterburnerChamber
RPHM-378-30
FirebrickAssemblyHalf–
BricksforAfterburner
(all4pieces)
RPHM-378-28
TopFirebrickAssembly–
MainChamber
RPHM-378-31
SideFirebrickAssembly–Main
Chamber
(2required–oneoneachside)
RPHM-378-32
BottomFirebrickAssembly–Main
Chamber
RPHM-378-38
FirebrickAssemblyForDoor
RPHM-378-33
BackFirebrickAssembly–Main
Chamber
Afterburner
Bottom

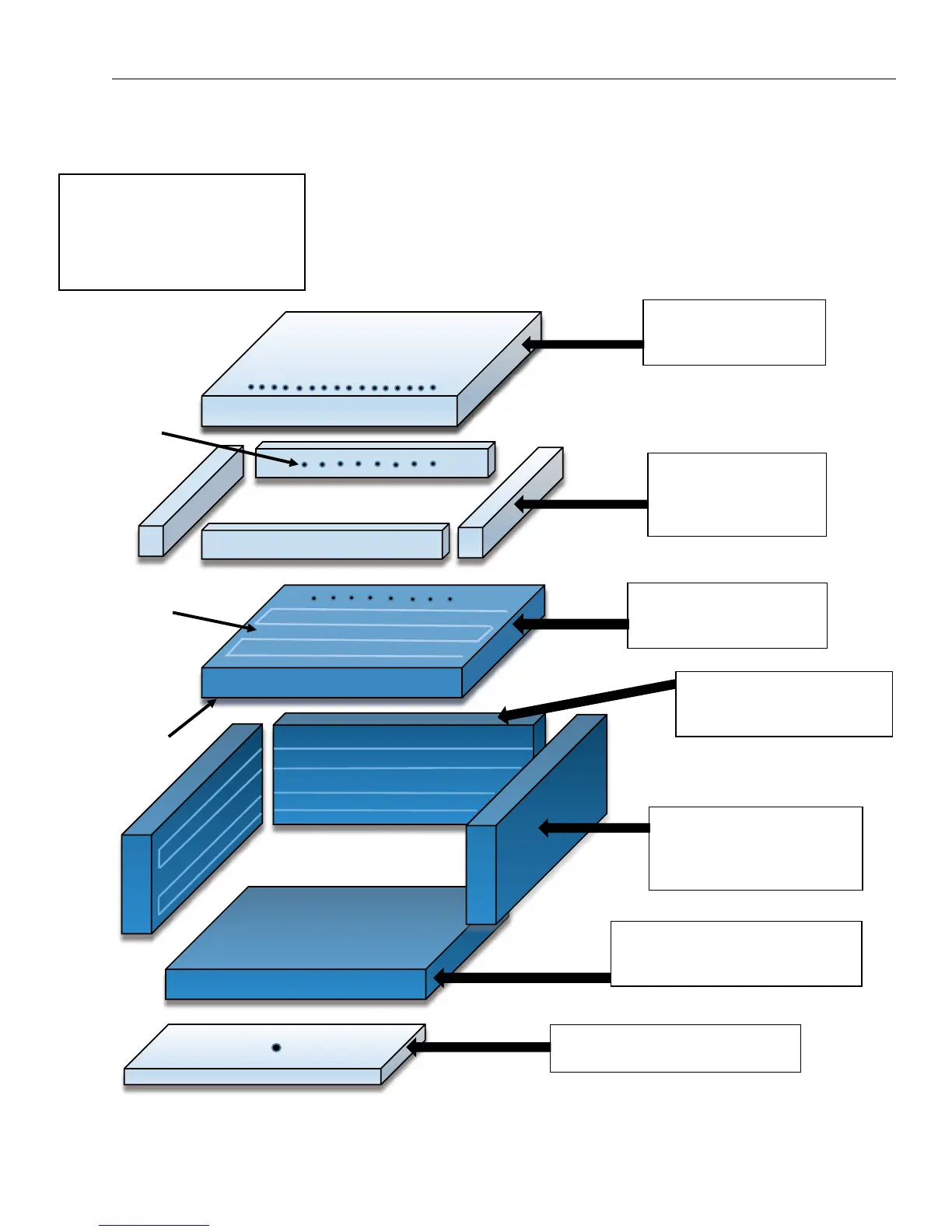

Gilson Binder Ignition Furnace
Fire Brick Replacement Assemblies
Figure 5
Vent holes to
be drilled by
installer
Main
Chamber
Top
NOTE: Vent holes are predrilled
from manufacturer on Top Fire
Brick Assembly - Afterburner
Chamber & Top Firebrick
Assembly – Main Chamber
