Safety system of the ESKIMO
It is imperative that you know the correct operation and assembly of your system safety before using
it. Always check your safety system before each use to make sure that it functions correctly.

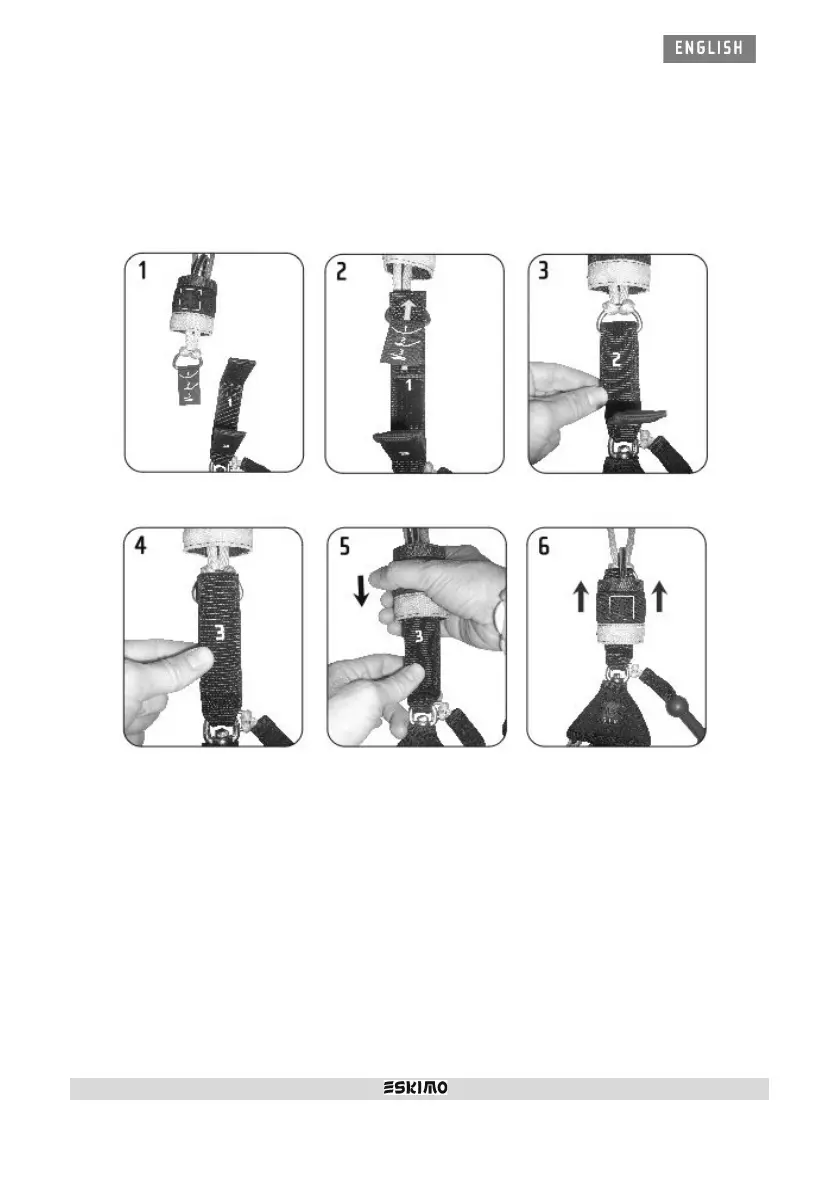

Main quickrelease
1. The sleeve from the main quick release is around the depower line. The depower line is
fixed with a lark's head knot on the metal D- ring of the quick release system.
2. Pass the rigid webbing n°2 of the quickrelease through the metal D-ring, in the direction of
the arrow on the picture.
3. Fold the webbing n°2 on the webbing n°1.
4. Fold the webbing n°3 against the 2 layers of webbing (n°1 and 2). Hold the 3 layers of
webbing (n°1, 2, 3) together.
5. Cover the 3 layers of webbing with the sleeve. Lock the quick release by pulling down the
solid sleeve against the swivel of the chicken loop.
6. To release : push the sleeve away from you, following the 2 arrows on the picture. You will
still be connected to the kite by the safety leash.
