Step 9 : Installing the rear cargo rack
The cargo rack maximum weight limit is
50 Kgs. It gets mounted into the rear end
of your GIN X e-bike (just above the rear
tyre)

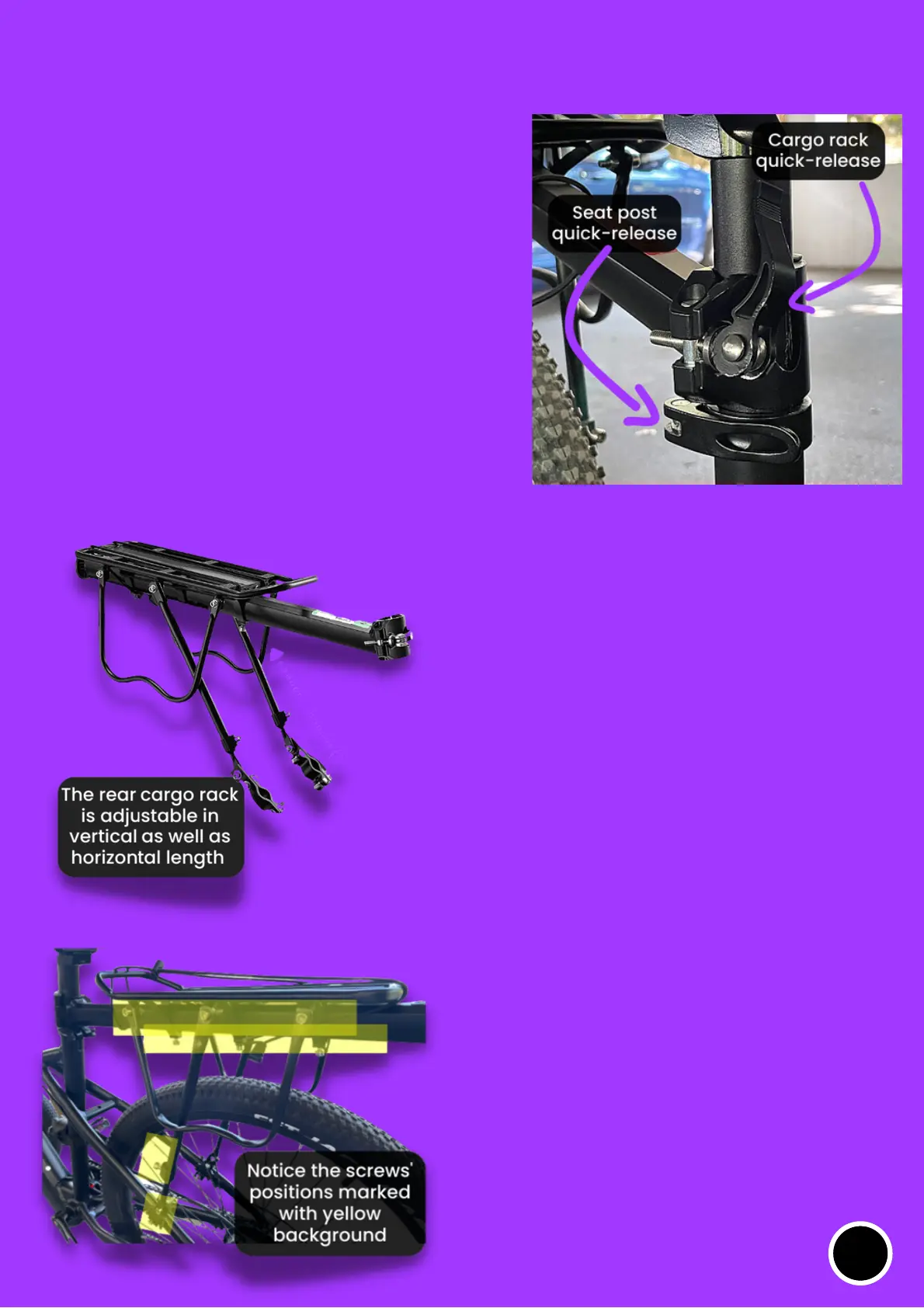

9.1 Attach the cargo rack against the seat
post through the quick release. Tighten it
once attached. Use the rubber pads
provided between the parts and the e-bike
frame gasket to avoid scratches and
friction to the frame
9.2 Loosen the screws to adjust
the vertical height or the
horizontal length of the cargo rack
9.3 Make sure that these screws are
tightened. A total of 15 bolts/screws
are present in the cargo rack
• 4 bolts at the lower side
• 6 bolts on the upper side
• 6 bolts at bottom the of rack to
adjust horizontal position
11
