gio Supra - Diagrams

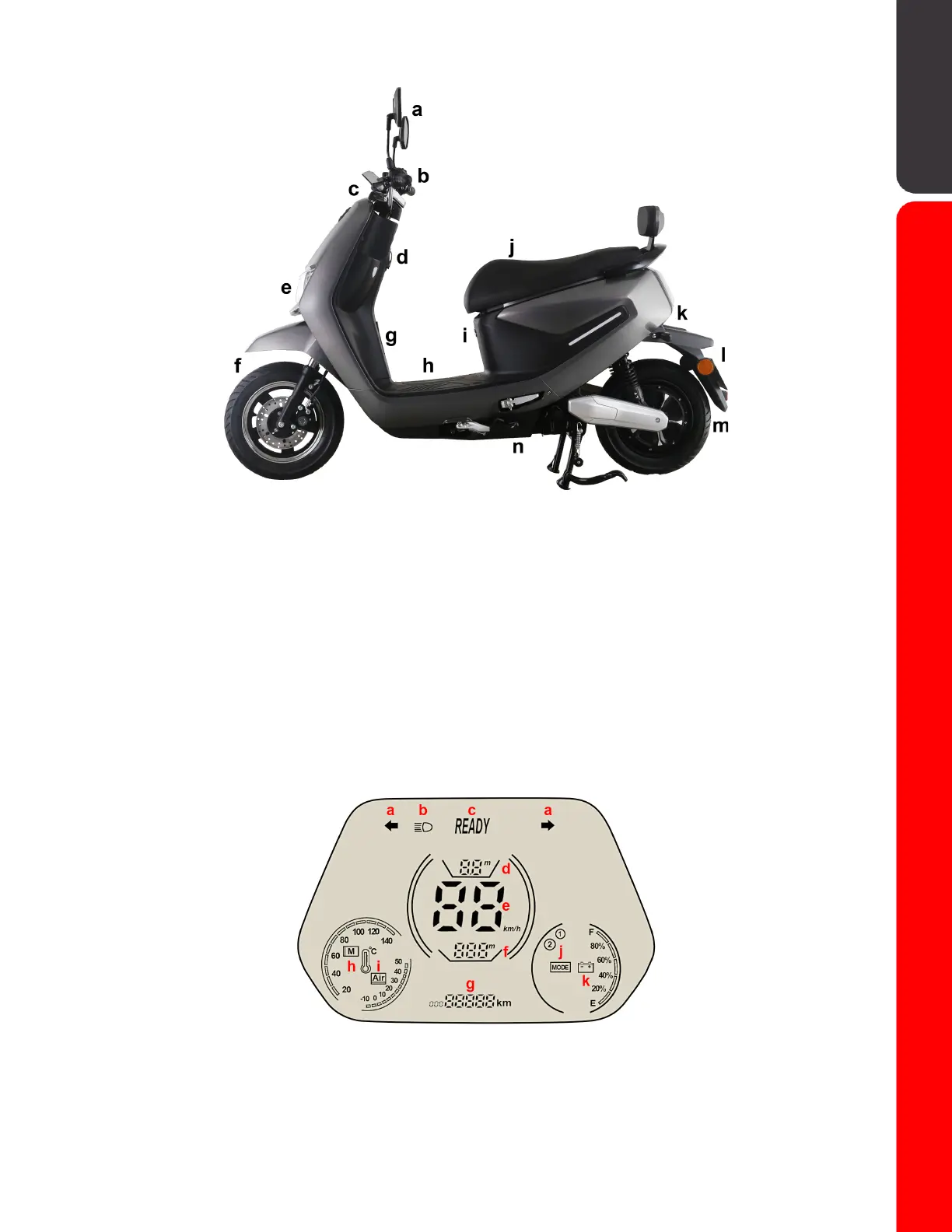

Scooter Diagrams
a
Mirrors
f
Front wheel, fender, brakes
b
Throttle, right brake lever,
g
VIN number cover plate
front R signal light, control switches
h
Footrest
(speed setting, lights)
i
Charge port
c
LCD Display, left brake lever,
j
Seat, battery & controller (internal)
front L signal light, control switches
k
Rear light, turn signals
(headlight intensity, turn signals, horn)
l
Plate mount, plate light
d
Ignition, bag hook, cupholder,
m
Rear wheel, fender, brakes, motor
usb power port
n
Foot pegs, kickstands (side & center)
e
LED headlight
LCD Display Screen
a
Turn signal indicator
g
Odometer (displays total distance for 5s
b
Headlight indicator
then switches to current trip distance)
c
System ready indicator
h
Motor temperature
d
Dry braking distance
i
Air temperature
e
Speedometer
j
Speed setting
f
Roll to stop distance
k
Battery gauge
