Installation
A
I
J
K
1
2
A
C
D
I
J
K

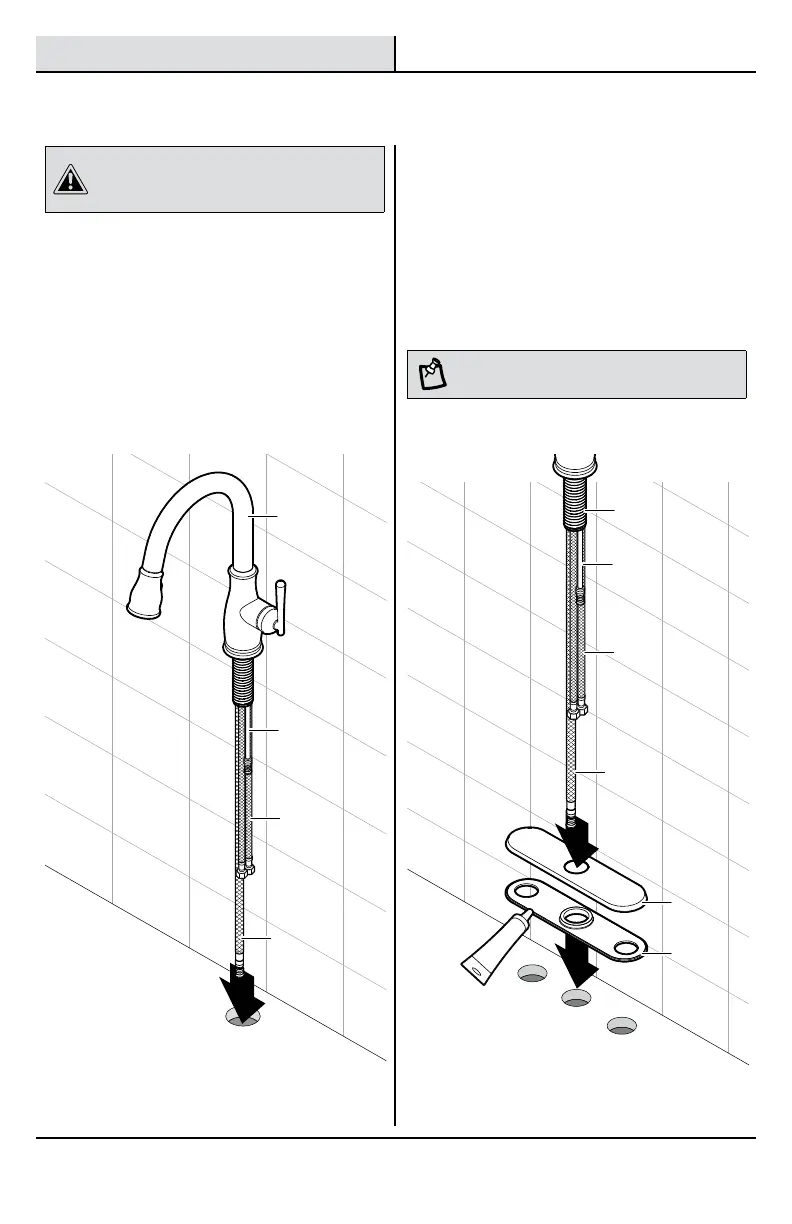

□ Shut off the water supply. Remove the old faucet.
□ Clean off the mounting surface.
□ WITHOUT DECK PLATE: Insert the outlet hose (I),
water supply lines (J) and pull-down spray hose
(K) through the mounting hole in the sink until the
faucet (A) sets on top of the sink.
□ WITH DECK PLATE: Install the faucet body through
the top of sink (not included). Place a bead of
clear silicone sealant (not included) around the
base of the putty plate (E). Align the hole in the
gasket (D) and deck plate (C) with the mounting
hole in the sink (not included). Insert the outlet
hose (I), water supply lines (J) and pull-down
spray hose (K) through the deck plate (C) and
mounting hole in the sink until the faucet (A) sets
on top of the deck plate (C).
1
Installing the faucet assembly
NOTE: If the sink is uneven, use silicone under the
gasket (D).
CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
