6
Installation (continued)
2
1
3
M
N
O
P
Q
2
1
1
3
L
I
K
L
K
K
F
I
F

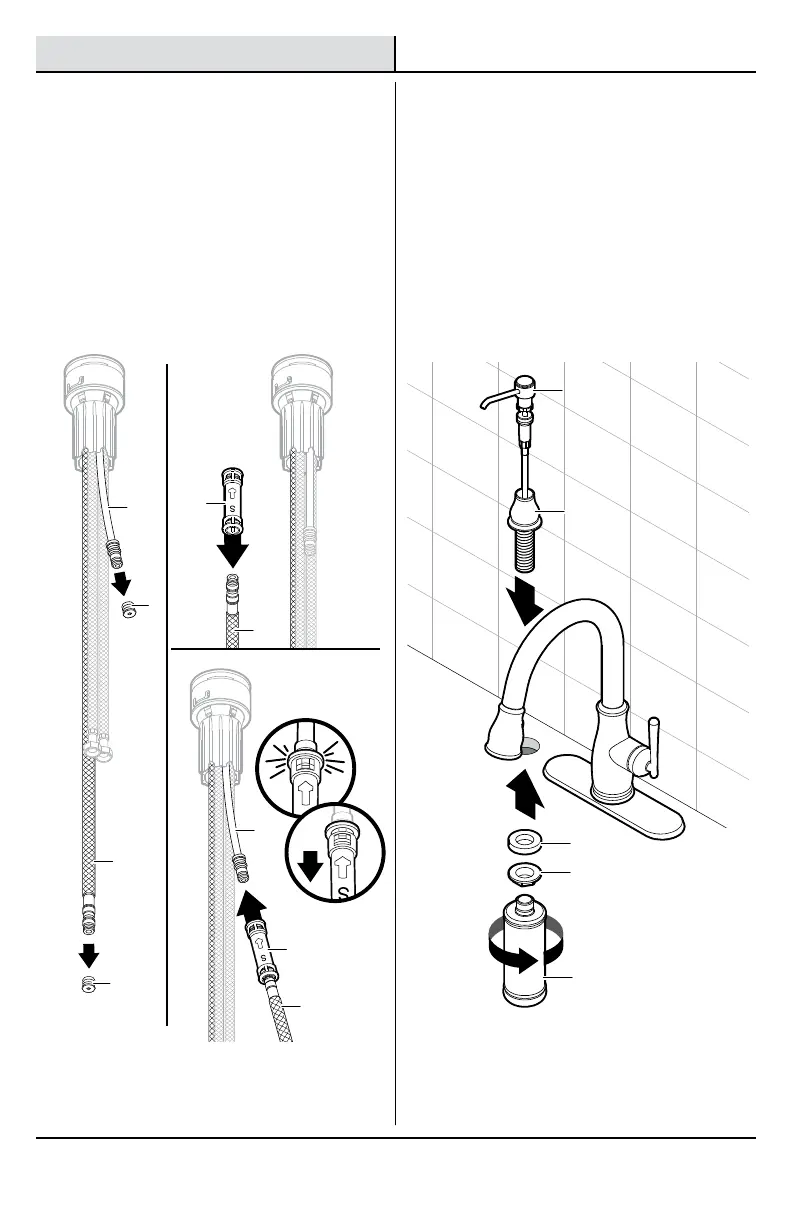

□ Remove bottle (Q), bottle lock nut (P) and washer
(O) from shank of dispenser holder (N). Remove
pump nozzle (M) from dispenser holder (N).
□ Insert shank of dispenser holder (N) and pump
nozzle (M) through top of sink.
□ Attach washer (O), bottle lock nut (P) and bottle
(Q) to dispenser holder (N) and screw tightly.
5
Installing the soap dispenser
assembly
4
Attaching the quick connector
□ Remove the cap (L) from the the pull-down spray
hose (K) and the outlet hose (I).
□ Attach the quick connector (F) to the pull-down
spray hose (K).
□ Attach the quick connector (F) to the outlet hose
(I). Pull down the quick connector (F) to ensure it
is secure.
