Gladiator GALG36KDYG - Complete the Assembly

6
■ The door with the lock assembly (P7) should be installed on the
right-hand side of the cabinet.
■ The door hinges are designed with keyhole slots at the top
and bottom so the door will hang on the cabinet while you are
fastening the screws.
1. Start 4 pcs Phillips-head screws (F3) in both the top and
bottom holes on each side of the cabinet.
2. Hang the right-hand side door (P7) from the top and bottom
screws, and hand tighten.
3. Insert the middle 4 pcs Phillips-head screws (F3) through the
door hinge into the cabinet and hand tighten.
4. Repeat steps 2 and 3 to attach the left-hand door (P6).
5. Align the doors and completely tighten the screws.
Complete the Assembly
1. Make sure there is a bolt or screw in each hole of the cabinet frame.
2. Move the cabinet to its nal location.
3. Place a level on an inside shelf, and if necessary, level the cabinet by adjusting the height of the leveling feet. Turn to the left to raise
or to the right to lower the leveling foot.
4. If the doors are not aligned, loosen all the screws attaching the door hinge to the cabinet. Adjust door to the desired height, and fully
tighten the screws.
5. Install Doors
F3
Phillips-head screw (12)
P1
P2
P3
P7
P5m
P5
P5m
A
A. Phillips-head screws (F3)

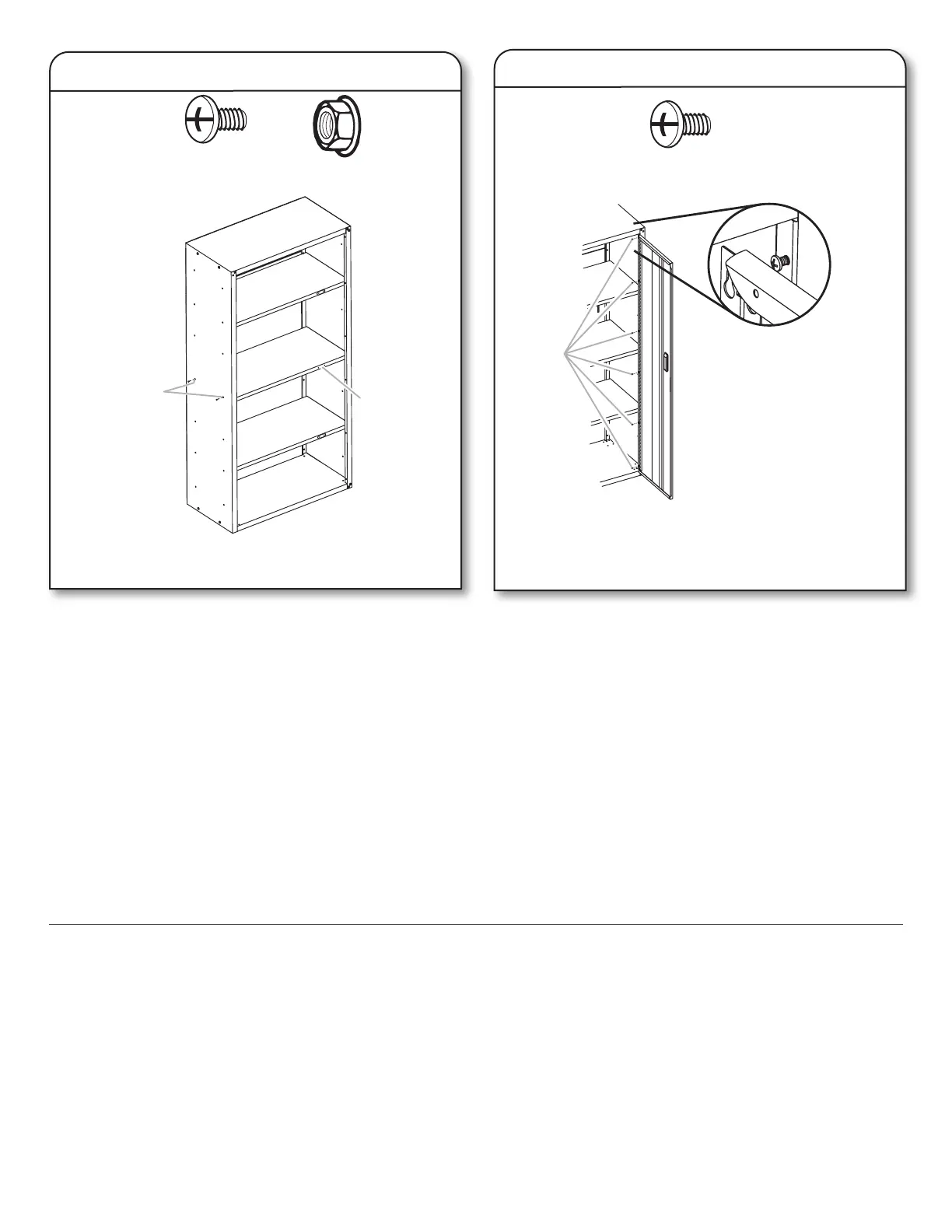

1. Place the shelf (P5) without the magnet in the cabinet so that
the long edge with the two holes is facing out.
2. Align the holes in the shelf ends with the pair of holes in the
middle of the cabinet sides (P1).
3. Using 2 pcs Phillips head screws (F3) and 2 pcs small ange
nuts (F5) per side, fasten the shelf (P5) to the sides (P1).
4. Determine where you want to place the other two shelves with
magnet (P5m). Align the holes in the shelf ends with the holes
in the cabinet side.
NOTE: Make sure the magnets in the long edges of the
shelves are facing the cabinet front.
5. Using 2 pcs Phillips head screws (F3) and 2 pcs small ange
nuts (F5) per side, fasten the shelves with magnet (P5m) to the
cabinet sides (P1). Completely tighten the nuts.
4. Install Shelves
■ Use the pair of holes located in the middle of the cabinet sides
to install a center shelf without the magnet (P5), so the doors
will lock. The other two shelves with magnet (P5m) may be
installed where desired.
F3
F5
Phillips-head screw (12)
Small ange nut (12)
A
P1
P2
P1
P3
P5
P5m
P5m
B
A. Middle pair of holes in cabinet side
B. Edge with holes
