Global M A730F - Microscope Components and Magnification

Section 5 Operating Instructions
5-4
5.11 Magnication Selection
All A-Series M A1003, M A1004 and M A1006 Microscopes have two magnication factor selection knobs, one
on each side of the microscope body. Either of these knobs should be turned until the desired magnication
factor is facing the indicator arrow on the left side of the microscope body.
See Section 9, Technical Information, for the magnication and focal length information.
5.10 Microscope Components

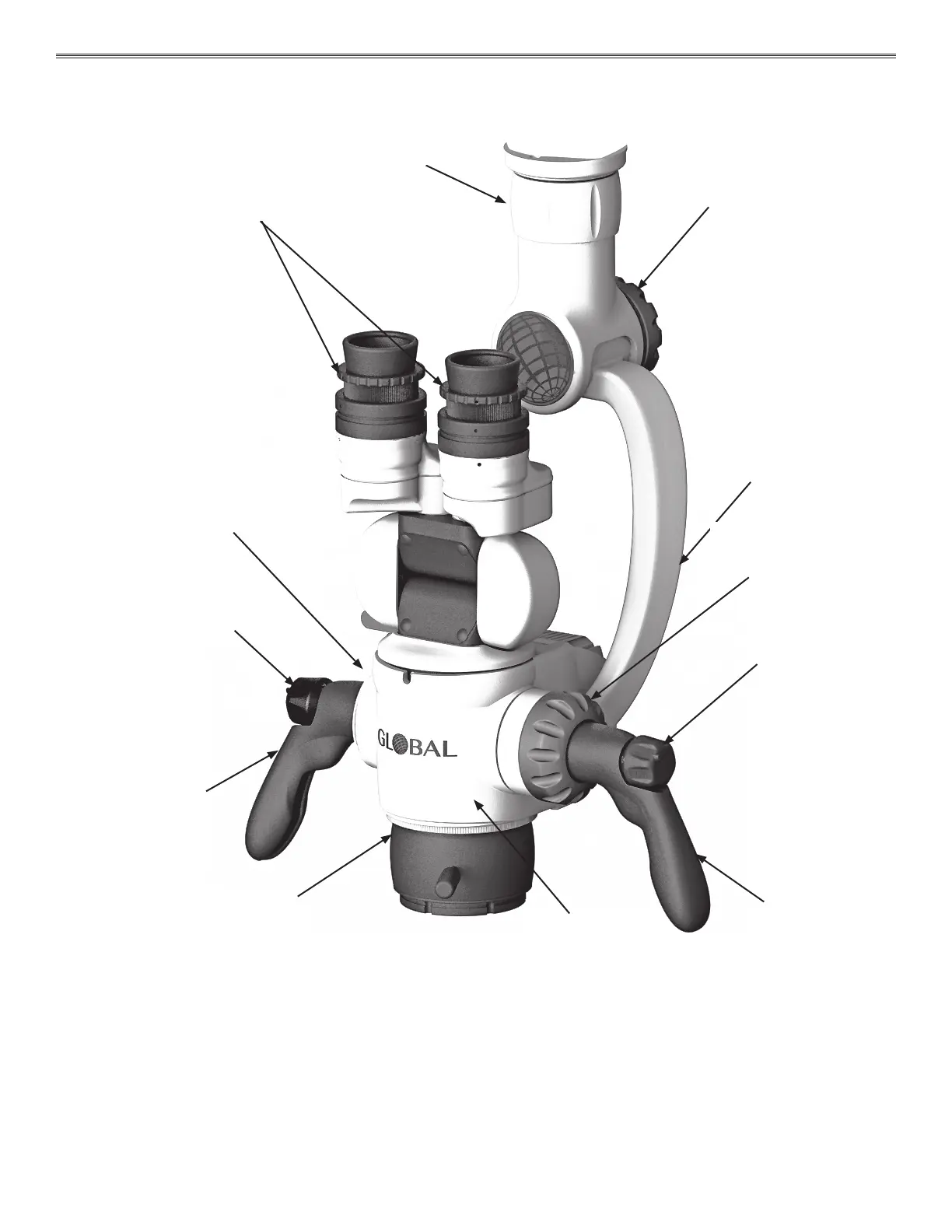

Figure 5-5 Microscope Components
Coupler Arm
Magnication
Selector Knob
Microscope
Maneuvering
Handle
Microscope Head
Microscope
Maneuvering
Handle
Magnication
Selector Knob
Pitch Angle
Adjustment Knob
Objective Lens
Roll Angle
Adjustment
Diopter Adjustment
Rings
Indicator Arrow
Pivot
Adjustment
