Globe RCW - 6-Inch RCW Dry Trim Arrangement

MAR 2018 GFV-305 (Formerly H-3) Page 6 of 11

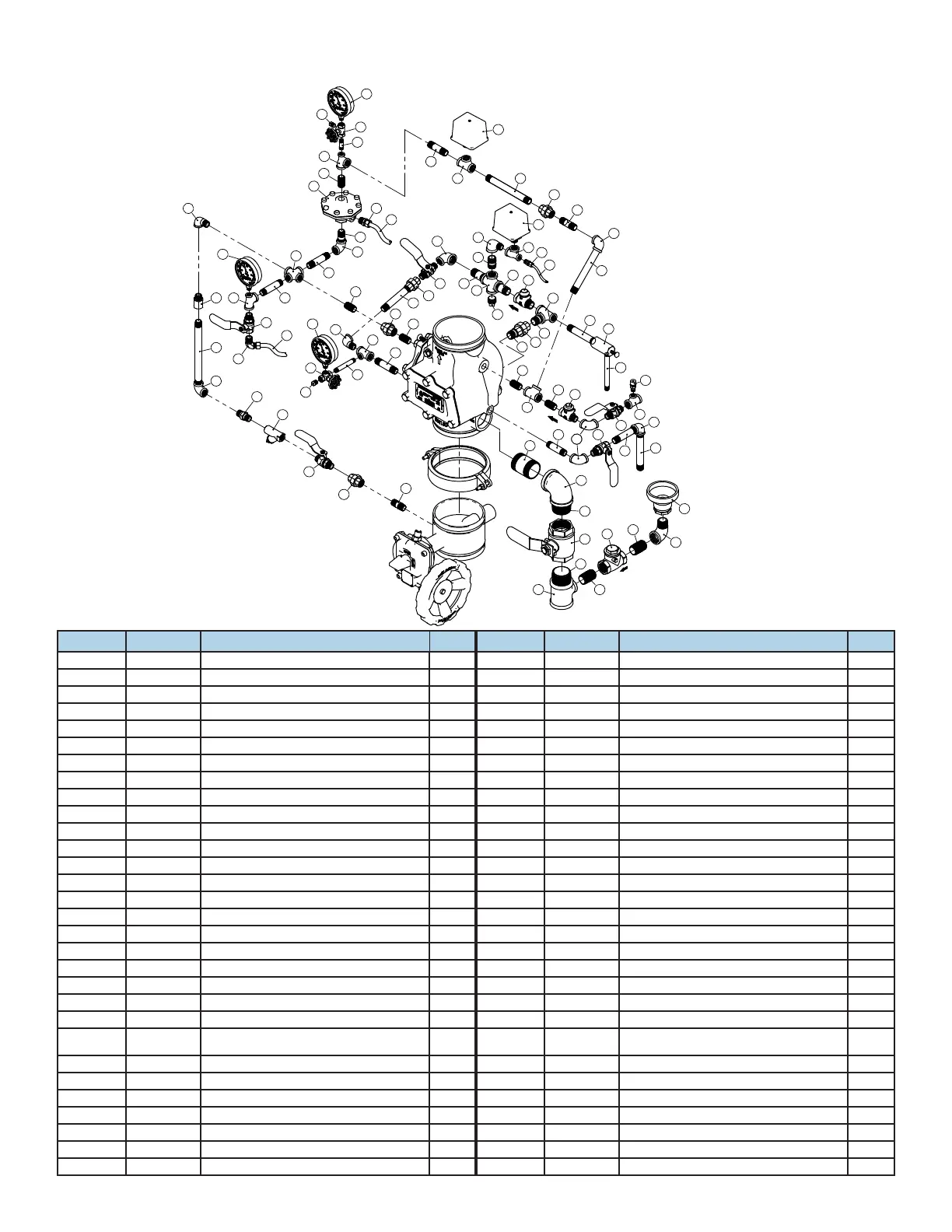

FIGURE 7: 6" RCW DRY TRIM ARRANGEMENT
ITEM NO. PART NO. DESCRIPTION QTY. ITEM NO. PART NO. DESCRIPTION QTY.
1 310802-G 2" x 3" GALV. NIPPLE 1 33 311224-G 3/4" x 1/2" GALV. STREET ELBOW 1
2 311208-G 2" 90° GALV. ELBOW 1 34 311801 1" CHECK VALVE (FxF) 1
3 310306-G 1/2" x 4" GALV. NIPPLE 1 35 311314-G 1/2" x 1/2" x 1/4" GALV. TEE 2
4 310301-G 1/2" x 1 1/2" GALV. NIPPLE 5 38 317395 1/2" RESTRICTOR 1
5 310305-G 1/2" x 3 1/2" GALV. NIPPLE 3 39 311404-G 3/4" GALV. UNION 1
6 323300 VELOCITY CHECK VALVE 1 40 310401-G 3/4" x 2" GALV. NIPPLE 1
7 311696-R 1/2" BALL VALVE MXF - RED HANDLE 2 41 311794-GR 1/2" BALL VALVE MxM - GREEN HANDLE 2
8 311313-G 3/4" x 1/2" x 3/4" GALV. TEE 1 42 310308-G 1/2" x 5" GALV. NIPPLE 2
9 317398 DRIP CUP ASSEMBLY 1 43 311683 1/4" 3-WAY VALVE 2
11 310413-G 3/4" x 1 1/2" GALV. NIPPLE 3 44 1340104 PS-10-2 ALARM SWITCH 1
12 310105-G 1/4" x 3 1/2" GALV. NIPPLE 1 45 1340404 PS-40-2 ALARM SWITCH 1
13 311001-G 1/4" GALV. PLUG 2 46 310304-G 1/2" x 3" GALV. NIPPLE 2
14 300119-D 3-1/2" WATER GAUGE (300PSI) 2 47 311203-G 1/2" GALV. ELBOW 5
15 300120-D 3-1/2" AIR GAUGE (250PSI) 1 48 311207-G 1" GALV. STREET ELBOW 1
16 311210-G 1/2" GALV. STREET ELBOW 4 49 311799-R 2" BALL VALVE (FxF) - RED HANDLE 1
17 300111-G 1/2" GALV. CROSS 1 50 310800-G 2" CLOSE GALV. NIPPLE 2
18 311004-G 3/4" GALV. PLUG 1 51 311338-G 2" x 2" x 1" GALV. TEE 1
19 311786 3/4" CHECK VALVE MxF 1 52 310501-G 1" x 2" GALV. NIPPLE 2
20 311403-G 1/2" GALV. UNION 4 54 310302-G 1/2" x 2" GALV. NIPPLE 1
21 311305-G 1/2" x 1/4" x 1/2" GALV. TEE 3 55 310101-G 1/4" x 1 1/2" GALV. NIPPLE 1
22 310161 1/4" TUBE CONNECTOR 1 56 317554 DRY PILOT ACTUATOR 1
23 M-320604 1/4" COPPER TUBE - 57 311303-G 1/2" GALV. TEE 2
24 310346 1/2" ELBOW TUBE CONNECTOR 1 62 317445
1/4" PRESSURE RELIEF VALVE (ADJ. PSI) FAC-
TORY SET @ 45PSI
1
25 310164 1/2" TUBE CONNECTOR 1 66 310310-G 1/2" x 6" GALV. NIPPLE 1
26 M-320591 1/2" COPPER TUBE -
68 310402-G 3/4" x 2 1/2" GALV. NIPPLE 1
27 317397 1/2" Y-STRAINER 1
64 310336-G 1/2" x 7" GALV. NIPPLE 1
28 317396 1/2" SPRING LOADED CHECK VALVE 1
72 311802 1/2" CHECK VALVE MxF 1
29 311794-R 1/2" BALL VALVE MxM - RED HANDLE 1
79 310110-G 1/4" x 6" GALV. NIPPLE 1
31 300112-G 3/4" GALV. CROSS 1
80 310303-G 1/2" x 2 1/2" GALV. NIPPLE 1
32 311212-G 3/4" x 1/2" GALV. REDUCING ELBOW 1
81 310313-G 1/2" x 7 1/2" GALV. NIPPLE 1
52
43
15
43
13
4
21
81
56
25
47
54
47
5
17
68
5
16
14
7
24
38
47
46
26
4
27
41
20
3
1
2
50
49
50
51
47
34
52
48
54
28
66
12
7
414
35
82
41
47
62
9
57
4
79
6
42
8
11
39
11
29
40
18
19
33
11
26
21
22
23
44
64
47
80
20
55
57
35
44
32
31
20
42
21
20
46
16
4
5
72
13
TO DRIP
CUP
TO DRIP
CUP
TO DRIP
CUP
B
A
REMOVE ITEM 64
IF UTILIZING OPTIONAL
ACCELERATOR TRIM
TO AIR MAINTENANCE DEVICE
• NOTE: PREASSEMBLED TRIM WITH BUTTERFLY VALVE SHOWN.
FOR PREASSEMBLED WITHOUT BUTTERFLY VALVE AND NON-
ASSEMBLED TRIM CONFIGURATION, ENSURE PRESSURE CHAMBER
SUPPLY IS CONNECTED FROM BELOW CONTROL VALVE.
