10
4000123944-2
The 30ci plus is delivered in two separate
packages:
• The boiler including fixing jig complete with
isolating valves and fittings.
• The flue system.

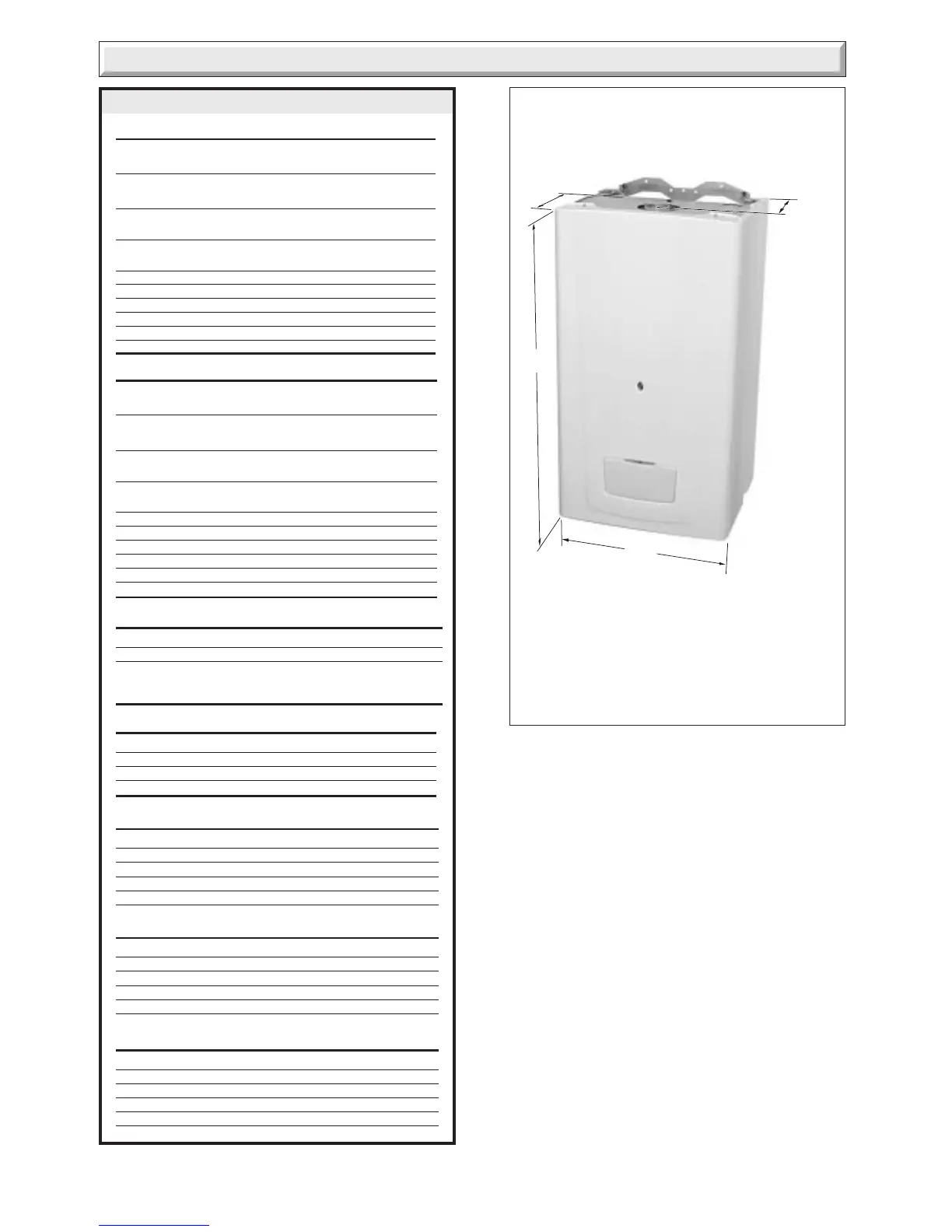

Diagram 1.1
Net lift weight (boiler only) 41 kg
Gross lift weight (boiler and packaging) 47 kg
1 Technical Data
11542a
365
232
798
450
Heat input (max) NET Q 32,6 kW
111,231 BTU/H
Heat input (min) NET Q 12,5 kW
42,650 BTU/H
Heat output (max) NET P 29,6 kW
100,995 BTU/H
Heat output (min) NET P 10,3 kW
35,144 BTU/H
Efficiency - Sedbuk D 79,6%
Maximum heating temperature 87° C
Expansion vessel effective capacity 8 litres
Expansion vessel charge pressure 0,5 bar
Maximum system capacity at 75°C 156 litres
Safety valve, maximum service pressure 3 bar
Heating
Heat input (max) NET Q 32,6 kW
111,231 BTU/H
Heat input (min) NET Q 12,5 kW
42,650 BTU/H
Heat output (max) NET P 29,6 kW
100,995 BTU/H
Heat output (min) NET P 10,3 kW
34,155 BTU/H
Maximum hot water temperature 65 °C
Minimum hot water temperature 38 °C
Specific flow rate (for 35°C temp rise) 12,1 litres/min.
Threshold flow rate 1,7 litres/min.
Maximum supply pressure 10 bar
Minimum supply pressure 0,5 bar
Hot water
Electrical supply 230 V ~ 50Hz
Electrical rating 122 W fused at 3A
Level of protection IPX4D
Fuse rating 1,25mA
Electrical
Products outlet diameter 60 mm
Fresh air inlet diameter 100 mm
Combustion products values CO (40 ppm)
CO2 (7,6%)
NOx (81ppm)
Combustion
Ø Burner injector 1,2 mm
Inlet pressure 20 mbar
Maxi. Burner pressure 13,3 mbar
Mini. Burner pressure 2,15 mbar
Gas rate maximum 3,45 m
3
/h
Natural Gas (G20)
Ø Burner injector 0,73 mm
Inlet pressure 29 mbar
Maxi. Burner pressure 25,5 mbar
Mini. Burner pressure 4,7 mbar
Gas rate maximum 2,53 kg/h
Butane Gas (G30)
Ø Burner injector 0,73 mm
Inlet pressure 29 mbar
Maxi. Burner pressure 32,5 mbar
Mini. Burner pressure 4,7 mbar
Gas rate maximum 2,53 kg/h
Propane Gas (G31)
30ci plus
