3.8 Timer
You can control the heating mode using
the timer.
Position for
the selection
switch
Functionality
0 Heating mode permanently
switched off
Heating mode intervals in
accordance with the timer
I Heating mode permanently
switched on
▶ Set the timer. (→ Page 11)
3.9 Operating levels
The product has two operating levels:
– The operator level shows the most im-
portant information and offers set-up
options which do not require any special
prior knowledge.
– Specialised knowledge is required in or-
der to use the installer level (access for
competent persons). This is therefore
protected by an access code.
Operator level – overview (→ Page 15)
4 Operation
4.1 Starting up the product
4.1.1 Opening the isolator devices
Conditions: The competent person who installed
the unit will explain where the isolator devices are
and how to handle them.
▶ Ensure that the gas isolator cock is fully
open.
▶ Ensure that the stop cocks in the heat-
ing installation's flow and return are
open.
▶ Ensure that the cold water stop cock is
open.
4.1.2 Starting up the product
▶ Press the (2) button.
◁ When the unit is switched on, the
"Basic display" is shown in the
display (1).

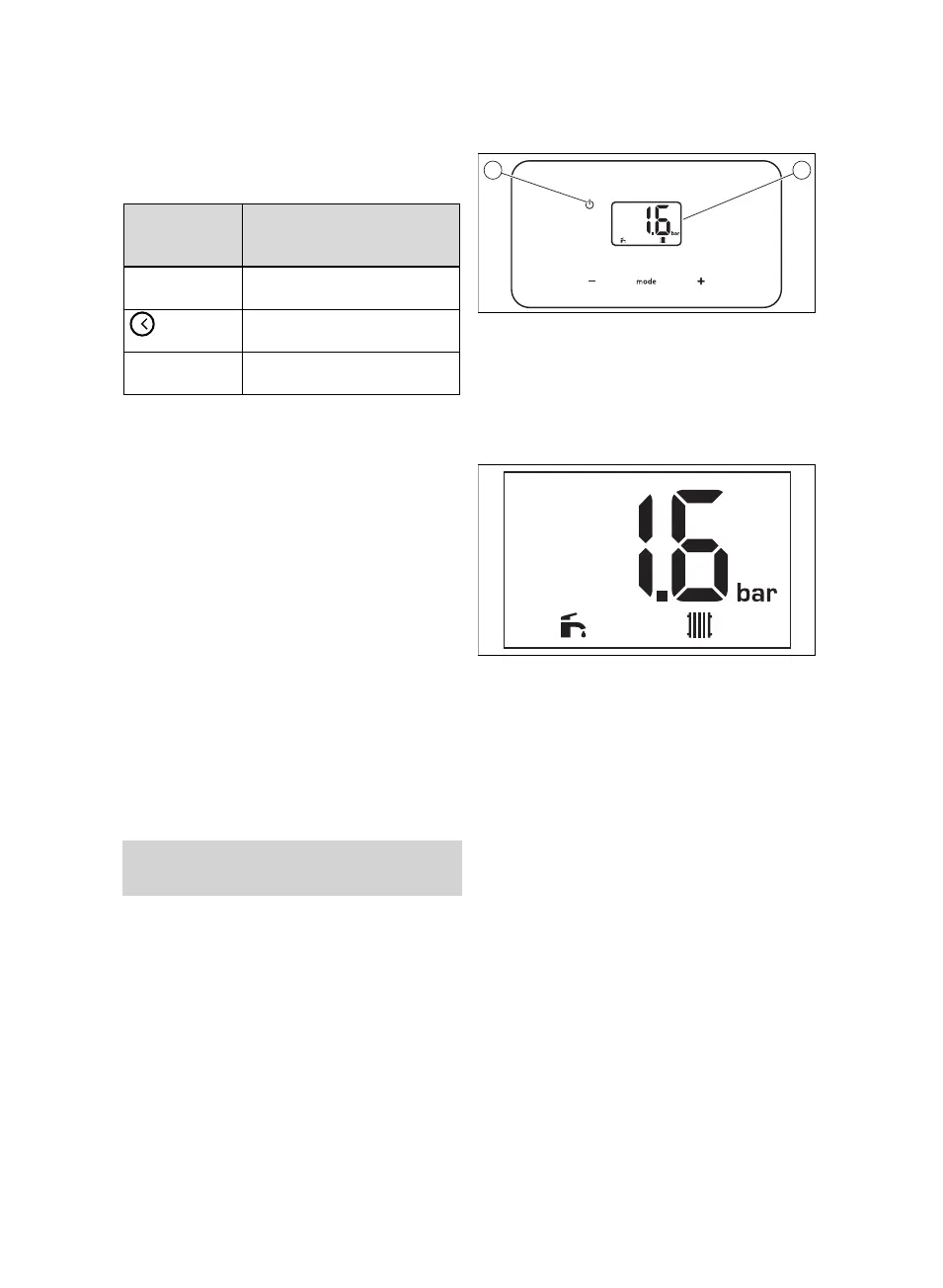

4.2 Basic display
The filling pressure in the heating installa-
tion and the operating mode are shown in
the display's basic display.
To return to the basic display:
– Wait more than five seconds without
pressing any buttons.
If a fault message is present, the basic
display switches to the fault code.
4.3 Checking the heating system
pressure
1. Once a month, check that the pressure
in the central heating system, which
is displayed on the user interface,
is between 0.1 MPa and 0.15 MPa
(1.0 bar and 1.5 bar).
◁ If the filling pressure is correct, no
action needs to be taken.
▽ If the filling pressure is too low, add
more water to the heating installa-
tion.
