21
13415
13416
BOILER MODULE
TANK MODULE
LOCATING
PIN (4 OFF)
ADJUSTABLE
FEET
FLOOR FIXING JIG
PLASTIC WASHERS
PIPE
RETAINING
BRACKET
PUMP WASHER
SEALING WASHER (beige)
(5 OFF)
SEALING WASHER
(white plastic) (4 OFF)
SEALING WASHER
1/2"

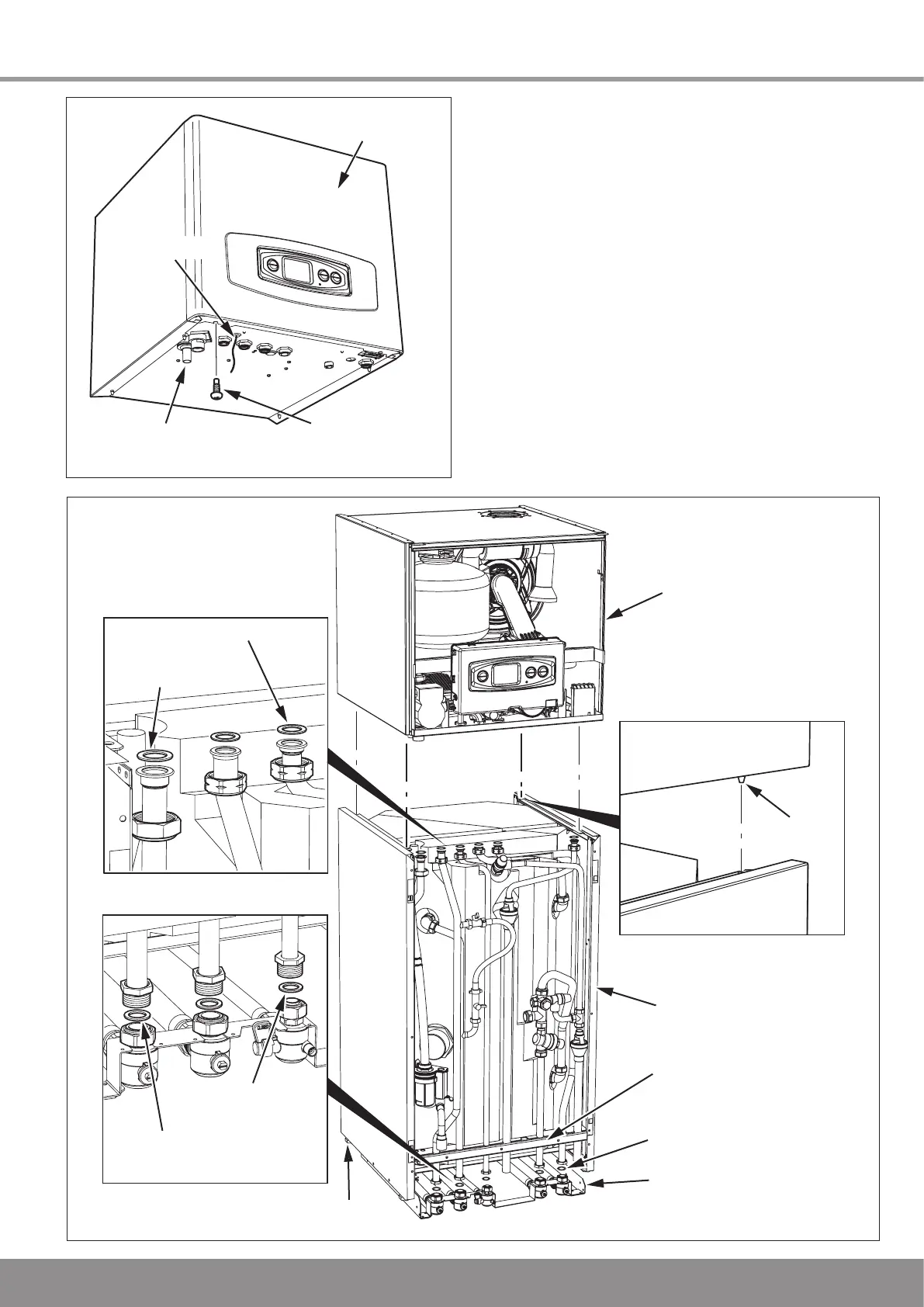

Diagram 8.3
BOILER MODULE
FRONT PANEL
SECURING
SCREW (2 OFF)
FLEXIBLE
CONDENSATE
HOSE CONNECTION
TANK
THERMISTOR
CABLE
Diagram 8.2
8 Gas, Water & Boiler Connection
8.3 Boiler Module Connection
Unpack the boiler module from its carton.
Position the boiler on top of the tank ensuring the correct
engagement of the locating pins, see diagram 8.3.
Remove the front panel securing screws and lift the panel off
at the top locating bracket, see diagram 8.2.
Position the plastic sealing washers as shown in diagram 8.3
and secure to the pipes to the connectors beneath the boiler
as shown in diagram 8.2.
On completion secure the pipe retaining bracket if previously
slackened and level the boiler using the adjustable feet.
