6.8 Removing/installing the front casing

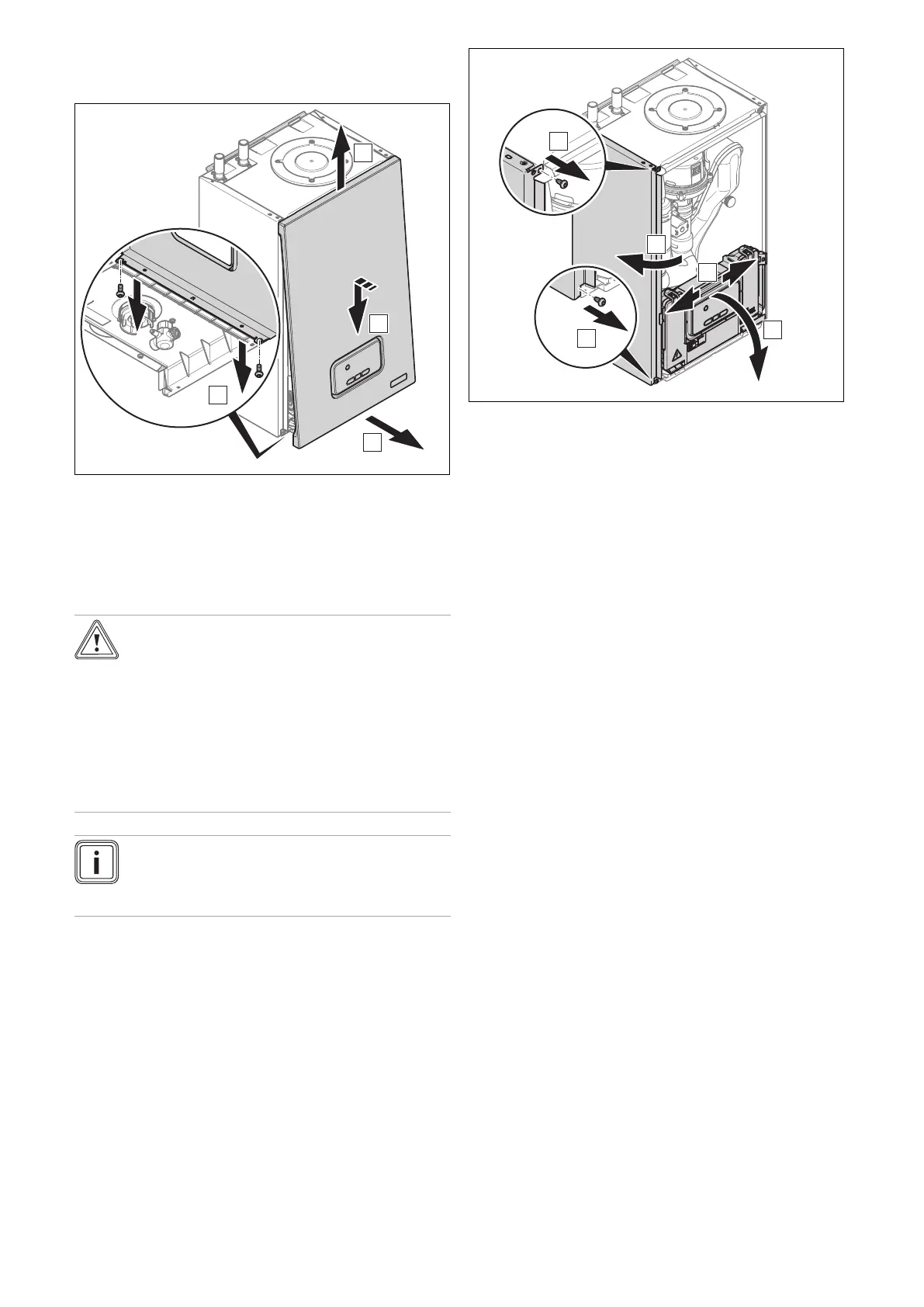

6.8.1 Removing the front casing
B
D
C
A
6.8.2 Installing the front casing
▶ Refit the components in the reverse order.
6.9 Removing/installing the side section
6.9.1 Removing the side section
Caution.
Risk of material damage caused by mech-
anical deformation.
Removing both side sections may cause
mechanical distortion in the product, which
may cause damage to the piping, for ex-
ample, and potentially result in leaks.
▶ Always only remove one side section –
never both side sections at the same time.
Note
If there is sufficient lateral clearance (at least
70 mm), you can remove the side section to fa-
cilitate maintenance or repair work.
C
D
A
B
E
6.9.2 Installing the side section
▶ Refit the components in the reverse order.
