START-UP EC 65
12/09 8
1. Selecting the installation site
The installation site must be level and horizontal.
The conditions in the SAFETY chapter under Work Places must be observed.
2. Removing the protective cover
Unscrew the screw (1).
Pull off the protective cover (2).
3. Mounting the crimp die
Note installation position:
Small cross section at front.
Large cross section at back.
Insert bottom die (1).
Screw in screw (2) loosely.
Insert top die (3).
Screw in screw (4) loosely.

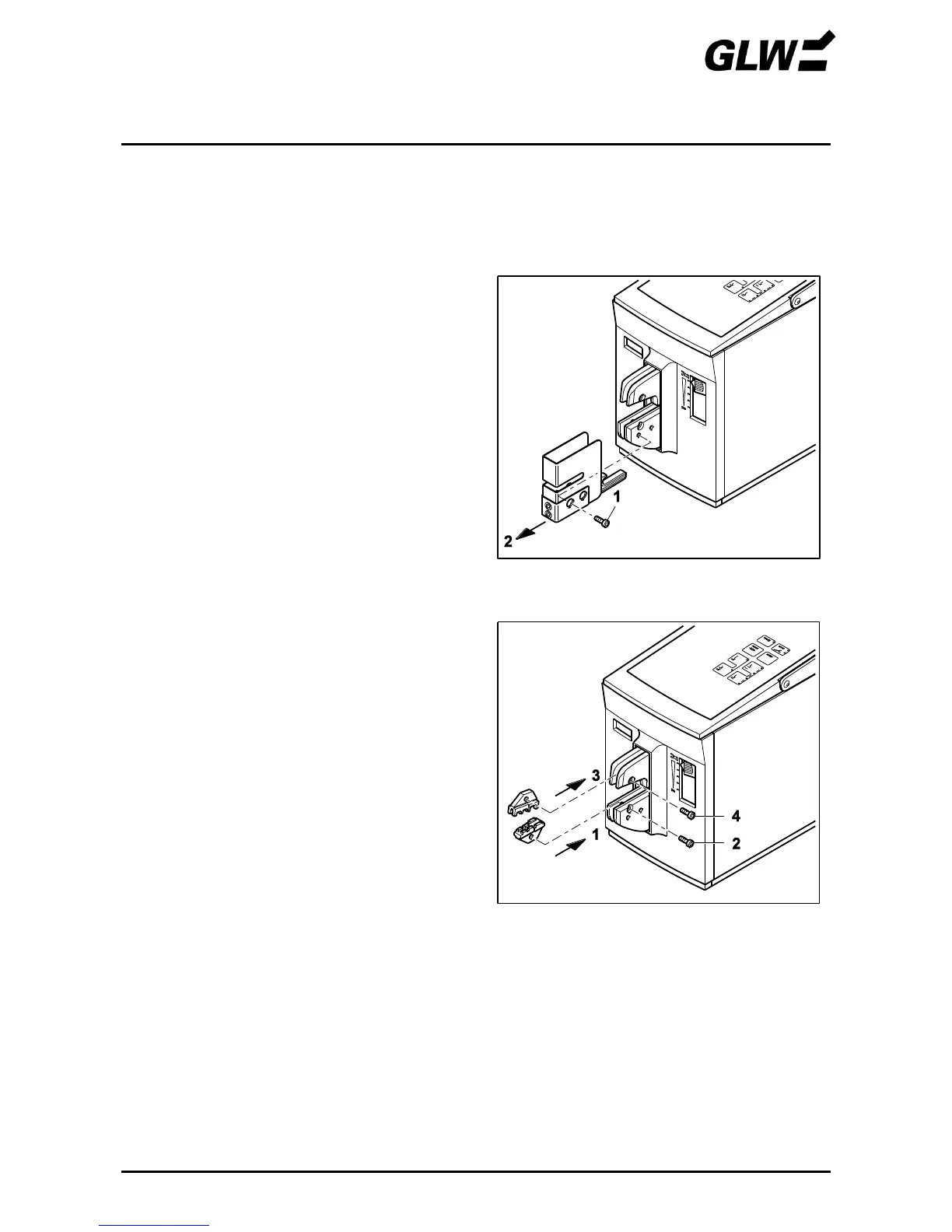

Figure 3 Removing the protective cover
Figure 4 Mounting the crimp die
