6. Centring the dies
!
Since the bores of the dies have a
slight clearance to the fastening
screws it is possible to offset the dies
to each other.
Centring / adjustment of the dies is
possible with the following adjustment
mode (steps 6 and 7).
 Press + simultaneously (1).
 + flash (2).
 Push force range adjusting slide (3) to
position 1.
 Press the foot switch (4) and keep it pressed.
 The crimp die (5) closes slowly until it meets
with a resistance and centres itself.
 Release the foot switch (6).
!
If the foot switch is released before the
crimp die is closed, this opens
automatically, the adjustment mode is
ended and lights.

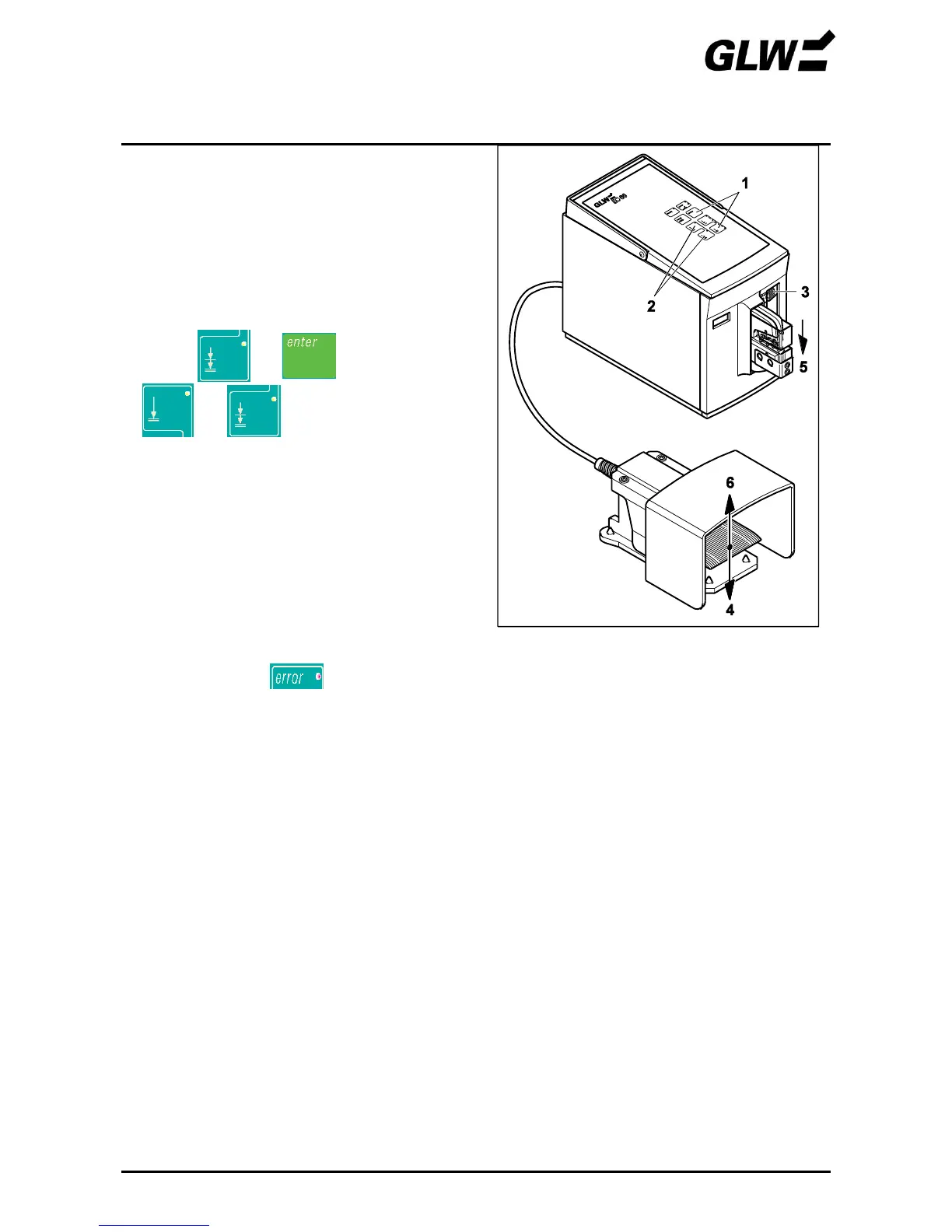

Figure 7 Centring the dies
