GLW EC 65 - Two-Step Crimping Procedure

OPERATION EC 65
12/09 15
Two-step crimping
1. Set mode 2
 Switch on the EC 65 at the power switch (1)
(press I).
 lights up (2).
 Set mode 2 (3).
 Read counter (4) if necessary and
reset to 0 with (5).
2. Clamp crimp contact
Centre the crimp contact (1) on the bottom die.
!
Pay attention to correct cross section
according to the company
supplementary sheet.
Press the foot switch (2) until the crimp contact is
clamped (3).
Release the foot switch (4).

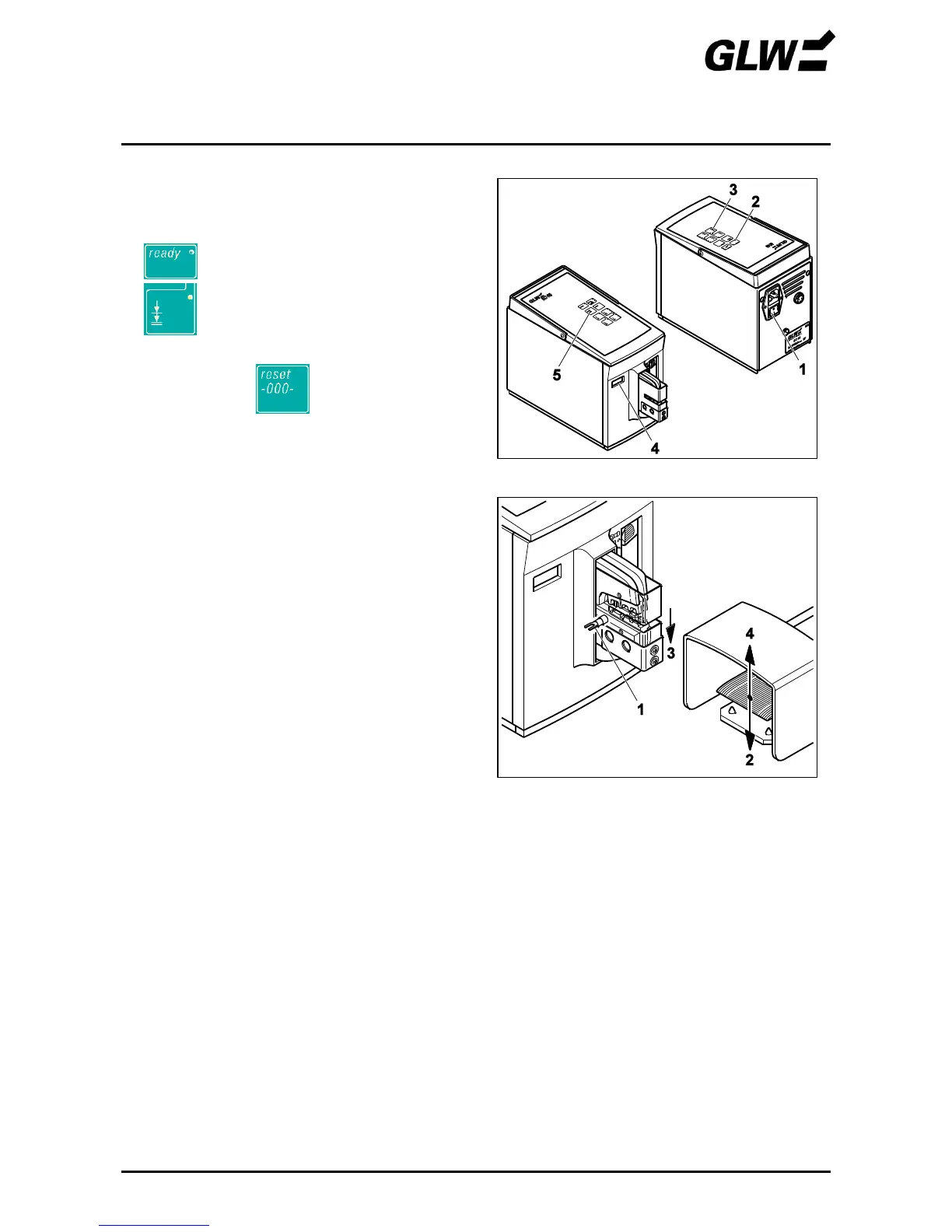

Figure 13 Set mode 2
Figure 14 Clamp crimp contact
