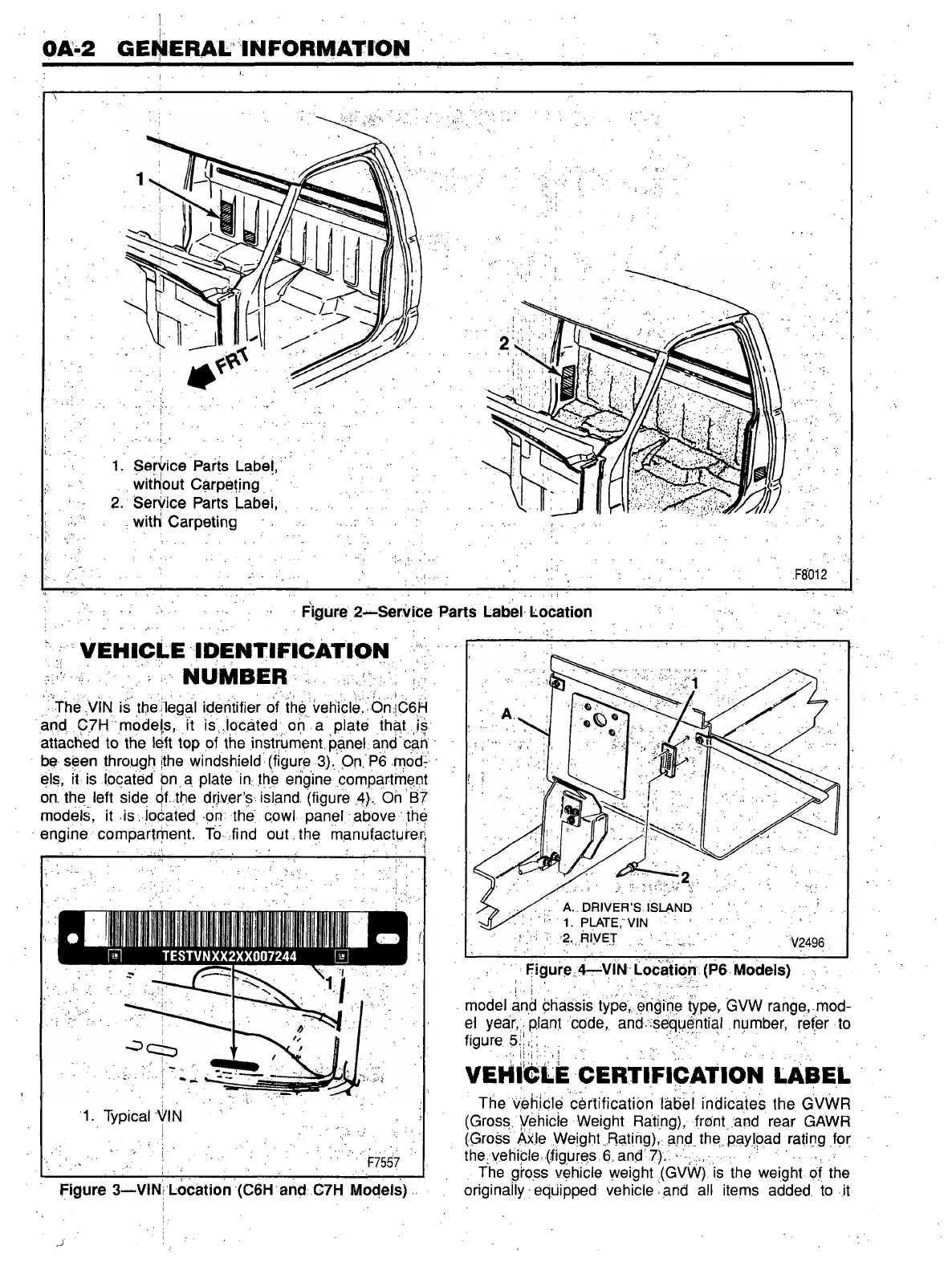

OA-2 GENERAL INFORMATION
1. Service Parts Label,
without Carpeting
2. Seryice Parts Label,
; with Carpeting
F8012
Figure 2—Service Parts Label Location
VEHICLE IDENTIFICATION
V- NUMBER
The .VIN is the legal identifier of the vehicle. On :C6H
and C7H models, it is located on a plate that is
attached to the left top of the instrument panel and can
be seen through ithe windshield (figure 3). On P6 mod
els, it is located bn a plate in the engine compartment
on. the left side of the driver’s island (figure 4), On B7
models, it is located on the cowl panel above the
engine compartment. To find out, the manufacturer,
1. Typical yIN
i | ■’ '' ; F7557
Figure 3—VINi Location (C6H and C7H Models)
Figure 4—VIN Location (P6 Models)
model and chassis type, engine type, GVW range, mod
el year, plant code, and sequential number, refer to
figure
VEHICLE CERTIFICATION LABEL
The vehicle certification label indicates the GVWR
(Gross yehicie Weight Rating), front and rear GAWR
(Gross Axle Weight Rating), and the, payload rating for
the vehicle (figures 6 and 7). : 7
The gross vehicle weight (GVW) is the weight of the
originally; equipped vehicle .and all items added, to it
j'
