8
Accessories
The tool is supplied with the
following accessories:
- 4mm Hex key
- Chuck Key
Unpacking
Carefully remove all parts from
the packaging and check that
they are in good condition.
Check that the following parts
are supplied.
Bags of fittings comprising:
- 4mm hex key
- Belt tension lock knob
- Support lock
- 3 x 8mm x 20mm bolts
- 3 x feed handles
- Keyed chuck
- Chuck key
- Collar stop
- Collar screw
- Collar nut
We recommend that you purchase your accessories in the
store from where you purchased the tool. Use good quality
accessories and the brand recommended by the vendor.
Assembly
The following tools are required
to assemble the drill press
• 4mm hex key (supplied)
• Wrench (not supplied)
• Phillips head screwdriver
(not supplied)
Assembly time
The DP2 drill press will take
approximately 15 minutes to
assemble.
IMPORTANT. If any parts are
missing , please contact the place
of purchase. DO NOT attempt
to operate the machine until the
missing parts are available.
WARNING. Ensure the machine
is disconnected from the mains
plug at all times during assembly
and maintenance.

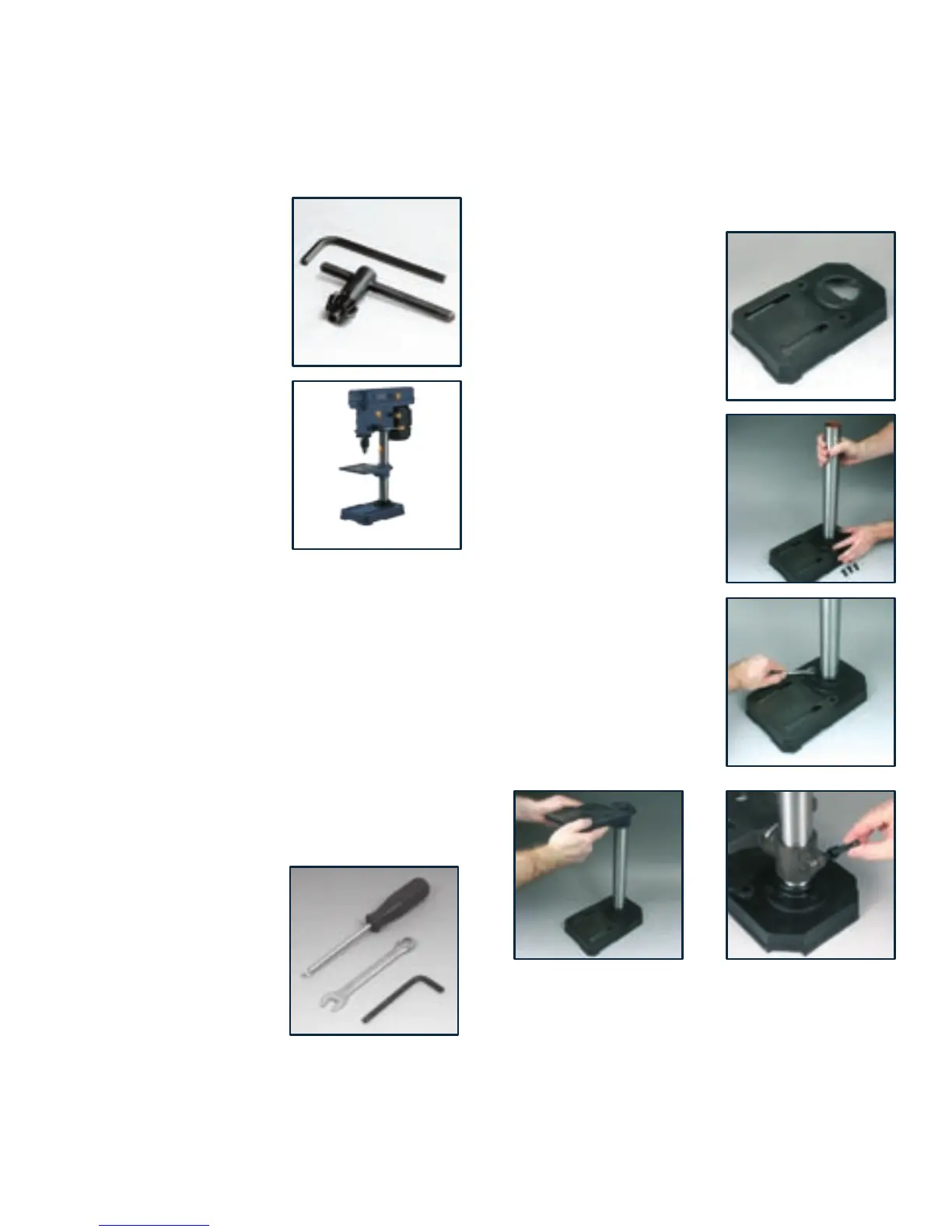

Place the base (8) on a flat
surface.
Place the column support (6) on
base and align the 3 holes in the
column support with the holes in
the base (8).
Using the 3 x 8mm diameter x
20mm long column support bolts
secure the column support to the
base and tighten with a wrench
(not supplied).
Slide the table assembly (10)
onto the column (5).
Install the support lock (9) handle, from the right side into
the rear of the table support (10) and tighten by hand. Once
tightened, ensure the table is fixed and cannot move.
