Climate Controls

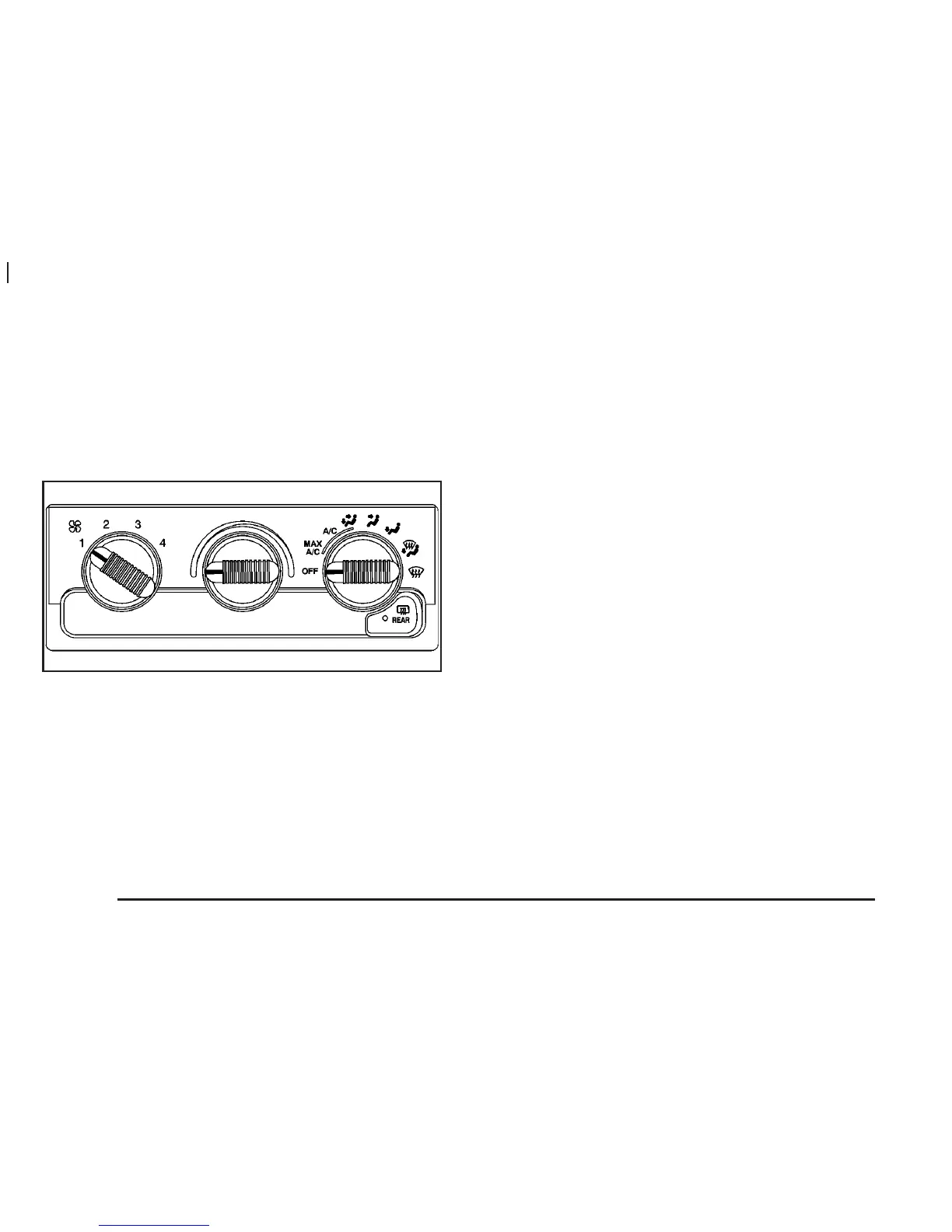

Climate Control System
With this system you can control the heating, cooling
and ventilation for your vehicle.
Directing the Airflow
Mode Knob: Turn the right knob clockwise or
counterclockwise to direct the airflow inside of your
vehicle.
H (Vent): This mode directs air to the instrument
panel outlets, with a little air directed toward the floor
outlets.
) (Bi-Level): This mode directs half of the air to the
instrument panel outlets, then directs most of the
remaining air to the floor outlets. A little air is also
directed toward the windshield and the side window
outlets. Cooler air is directed to the upper outlets and
warmer air to the floor outlets.
6 (Floor): This mode directs most of the air to the
floor outlets with a little air directed to the windshield and
the side window outlets.
9 (Fan): Turn the left knob clockwise or
counterclockwise to increase or decrease the fan speed.
Turn the mode knob to OFF to turn off the fan.
The mode knob can also be used to select defog or
defrost mode. For more information, see “Defogging and
Defrosting” later in this section.
3-18
