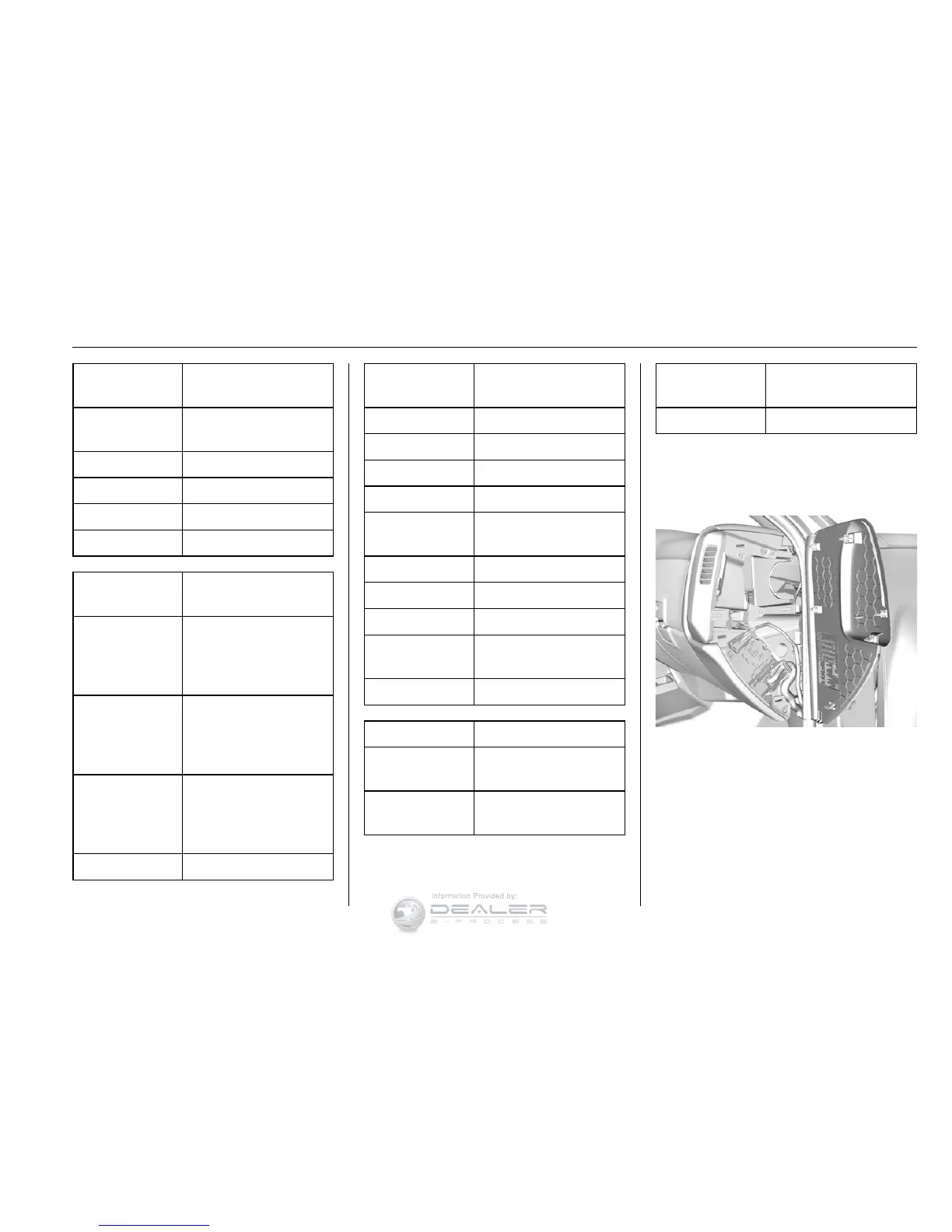

Micro Fuses
(2 Pin)
Usage
51 Engine Control
Module
52 Interior Heater
53 Spare
54 Aeroshutter
55 Front Washer
Micro Fuses
(3 Pin)
Usage
56 Air Conditioning
Compressor/
Battery Regulated
Voltage Control
57 Air Conditioning
Compressor
Module/
Battery Pack
58 Transmission
Control Module/
Engine Control
Module
59 Headlamps
Micro
Relays
Usage
60 Fuel Pump
61 Upfitter 2
62 Upfitter 3
63 Upfitter 4
64 Trailer Parking
Lamps
65 Run/Crank
66 Upfitter 1
67 Fuel Pump 2
68 Air Conditioning
Control
69 Starter
Mini Relays Usage
70 Rear Window
Defogger
71 Engine Control
Module
Solid State
Relay
Usage
72 Cooling Fan Clutch
Instrument Panel Fuse
Block (Right)
The right instrument panel fuse
block access door is on the
passenger side edge of the
instrument panel.
Pull off the cover to access the fuse
block.
