9.0 Wiring Diagram
To protect the Battery and the Solar Panel, we strongly recommend that you place an inline fuse
on the positive wire on both the “Solar” and “Battery” Circuits. 30A fuse for the GP-PWM-30-SQ,
as close to the battery / panel as possible.
The Solar Controller has 4 terminals which are clearly marked ‘Solar’
and ‘Battery’. There is a (12V) and earth (GND) terminal for each

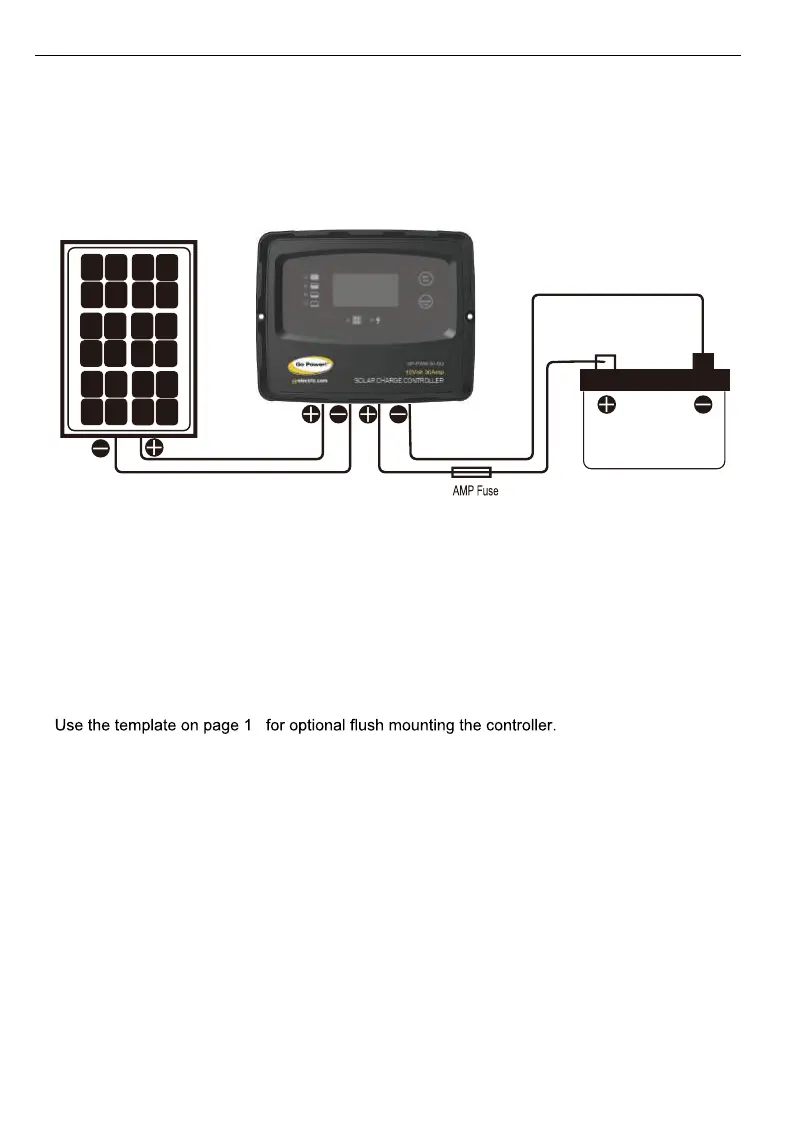

circuit. Refer to the wiring diagram below.
Note: The fuse or breaker used
should be no larger than 30 amps
Solar Panel +
Solar Panel –
Battery +
Battery -
