MAXIMUM POWER POINT TECHNOLOGY

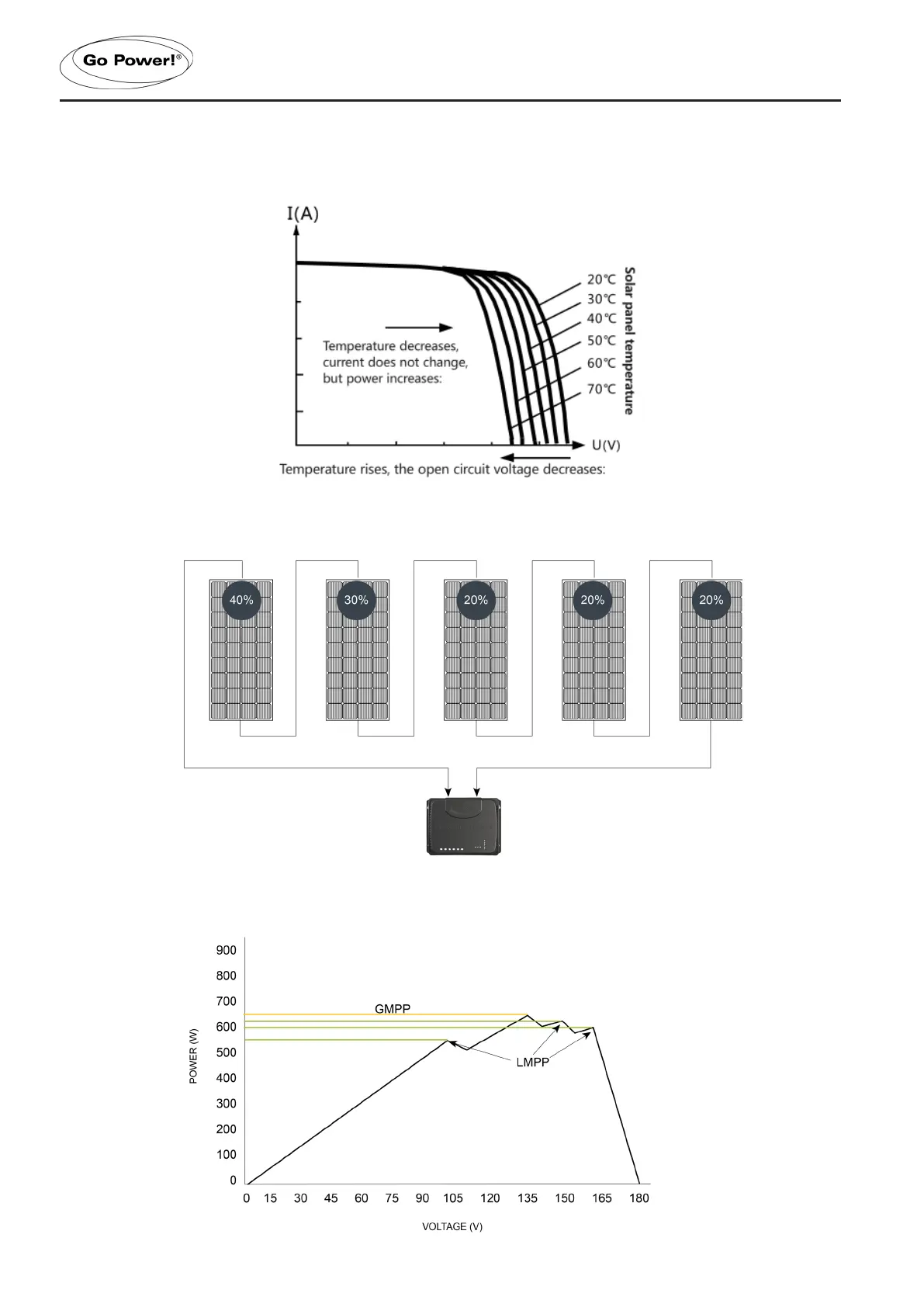

The graph below shows how the IV curve of a solar panel changes with varying temperatures.
In partially shaded conditions there can also be multiple peaks in the P-V curve that can confuse an MPPT algorithm.
Shown in the diagram below is a series string of solar panels.
A corresponding graph below shows lower maximum power points (LMPP) and the greater maxim power point (GMPP)
that will result in maximum energy transfer. The GP-RVC series has a smart algorithm that will always choose the right
peak.
