Go Power GP-RVC-MPPT-30 User Manual

gpelectric.com | [page 7]
Maximum Power Point Tracking (MPPT) is an advanced charging technology that more e󰀩ciently harvests power from
solar panels in all conditions. It does this by continuously tracking the I-V curve of the solar array and modifying operating

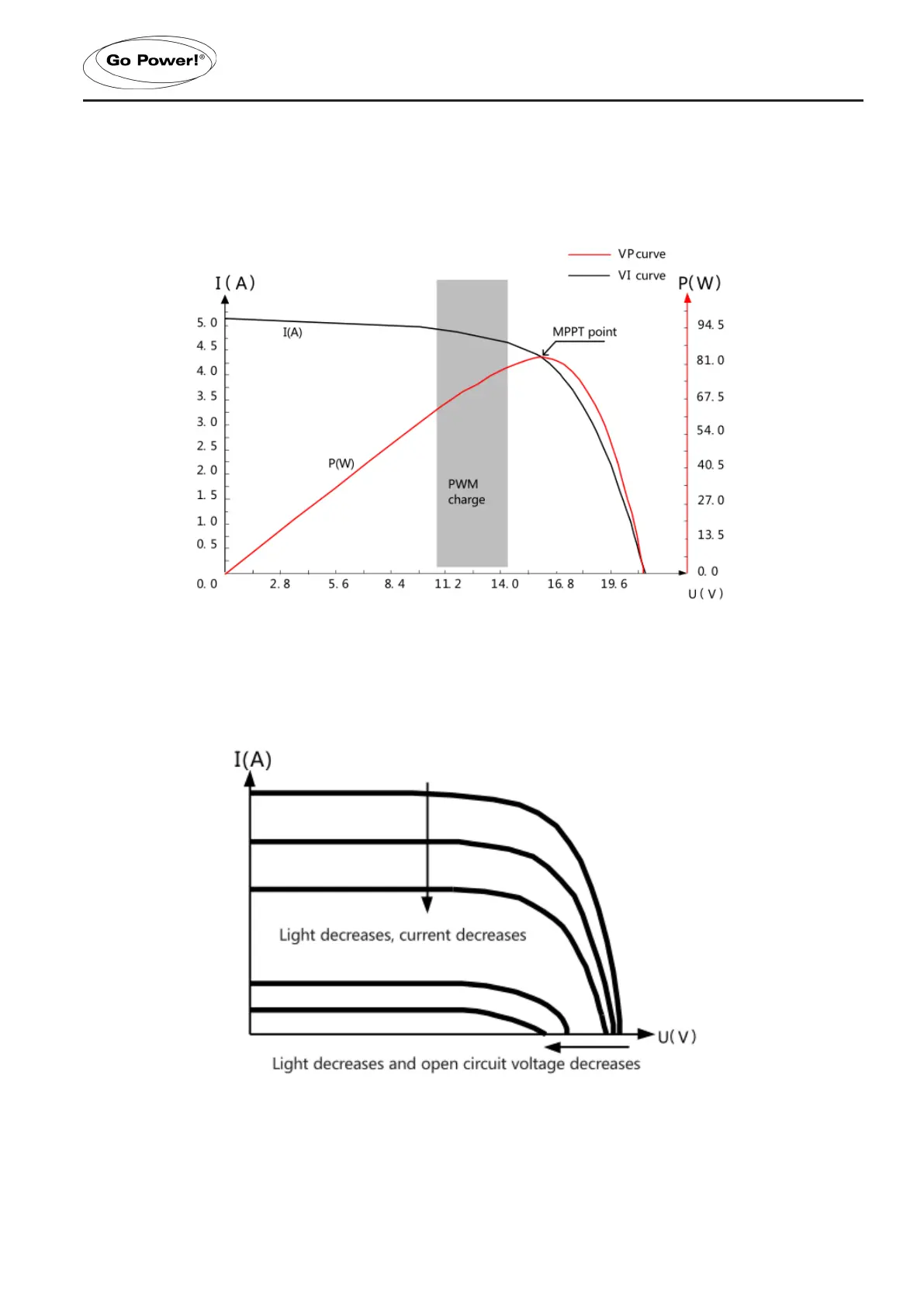

conditions to maximize output power. The graph below shows the MPPT point compared to a traditional PWM charger,
which always runs the solar array at a voltage close to the battery voltage.
Due to di󰀨erences in ambient temperature and light conditions, the maximum power point often changes. The MPPT
controller can adjust parameters according to quickly changing conditions to keep the system near to its maximum
working point. The whole process is fully automatic and does not require any adjustments or interference by users.
The graph below shows how the IV curve of a solar panel changes with varying sunlight conditions.
4. MAXIMUM POWER POINT TECHNOLOGY

Go Power GP-RVC-MPPT-30 Specifications

General

Battery Voltage Range	8V – 32V
Battery Type	Lead Acid (AGM, GEL, Flooded), LiFePO4
Max Charge Current	30A
Conversion Efficiency	≤98%
MPPT Tracking Efficiency	>99%
No-Load Loss	<10mA
Max Panel Input Voltage	100Voc
Max PV Power Input	600W@12V / 1200W@24V
Grounding	Negative
Protection	Solar/battery reverse polarity Solar/battery over voltage Solar/battery short circuit Over temperature
Operating Temperature	-35 to 45°C
Storage Temperature	-35 to 75°C
Humidity	95% N.C.
Water Ingress Protection	IP32
Altitude	< 3000m
Max Wire Gauge	8 AWG

Weight and Dimensions

Dimensions (H x W x D)	3.15” x 7.78” x 5.5”
Weight	3.14lbs (1.42kg)
