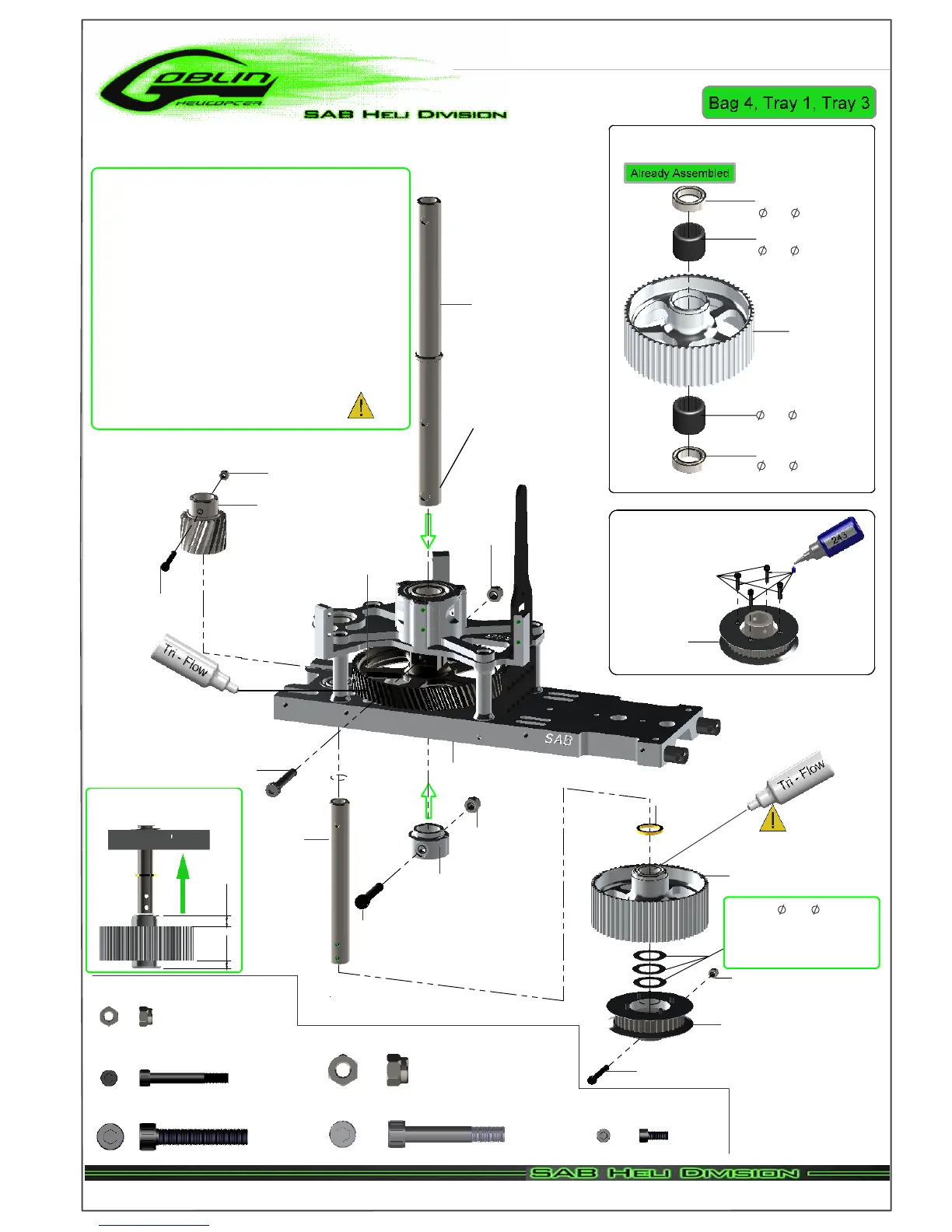

Goblin SPEED - Page 12

......
x2
19T Drive Pinion
(H0361-S)
Metric Hex Nylon Nut M3
(HC206-S)
68T Main Gear
(H0320-S)
Metric Hex Nylon
Nut M2.5
(HC200-S)
Front Tail Pulley Low Assembly
(H0172-S)
M4 Locking Collar
(H0121-S)
Secondary
Shaft
(H0157-S)
37T Pulley
(H0172-S)
Socket Head Cap Screw
M2x5mm
......
x3
Bearing
10x 15x4mm
(HC420-S)
Check the axial play
See Note 1.
Washer
10x 16x0.2mm
(HC232-S)
One Way Bearing
10x 14x12mm
(HC442-S)
60T Pulley Assembly
(H0171-S)
Bearing
10x 15x4mm
(HC420-S)
Socket Head Cap Screw Shouldered
M2.5x19mm
(HC033-S)
Note 1:
When you tighten the collar ( H0121-S ) on
the main shaft, ensure there is no axial play. Push
down the main shaft while pulling up the locking
collar. Tighten the screw M4x22 at this time.
Note 2:
The pinion and gear are designed to have zero
backlash. This leads to initial “rough” rotation.
After some run in flights ( 3-5 flights ) it will begin
to rotate freely, ensuring perfect contact and
the ability to transmit maximum power.
It is very important to lubricate these two
elements with a lubricant ( Tri-Flow
Synthetic grease).
One Way Bearing
10x 14x12mm
(HC442-S)
6.25 4.8
Main Shaft
(H0122-S)
Main Structure
Assembly 1
Metric Hex Nylon Nut M2.5
Socket Head Cap Screw M4x22mm
......
x1
Socket Head Cap Screw
Shouldered M4x25mm
(HC111-S)
Socket Head Cap Screw Shouldered
M2.5x19mm
Socket Head Cap Screw Shouldered M4x24mm
......
x1
......
x2
Metric Hex
Nylon Nut M4
(HC212-S)
Metric Hex Nylon
Nut M4
(HC212-S)
Socket Head Cap Screw
M4x22mm
(HC104-S)
Socket Head Cap
Screw Shouldered
M3x18mm
(HC079-S)
60T Pulley
(H0171-1)
60T Pulley Assembly
(H0171-S)
Metric Hex Nylon Nut M4
......
x2
Socket Head Cap
Screw M2x12mm
(HC014-S)
Front Tail Pulley Assembly
(H0172-S)
Bush One Way
(H0110-S)
Note:
Put a small amount of grease
every 30/40 flights on the main
gear (for example Tri- flow
Synthetic grease)
Note 2
The perfect play is 0.5mm
add or remove shim for this
Note: Correct insertion of
the one-way pulley
Copyright © 2013 - SAB Heli Division - All rights reserved
Page 10
Chapter 5, Transmission Assembly
