Goblin SPEED - Page 13

Spring
de 8 / df0.5 / LL8
(HC315-S)
Flanged Bearing
5x 9x3mm
(HC410-S)
Flanged Bearing
3x 7x3mm
(HC402-S)
......
x1
......
x1
Flanged Bearing 5x 9x3mm
......
x2
Flanged Bearing 3x 7x3mm
......
x2
Tail Belt Idler
Washer
3x 4x0.5mm
......
x1
Washer 3.2x 6x0.5mm
(HC180-S)
Belt Tensioner
Arm
......
x1
Washer 3x 4x0.5mm
(HC176-S)
Button Head Cap Screw M3x4mm
Belt Tensioner Support
(H0174-S)
Socket Head Cap Screw M3x12mm
Socket Head Cap Screw M3x40mm
Socket Head Cap
Screw M3x12mm
(HC062-S)

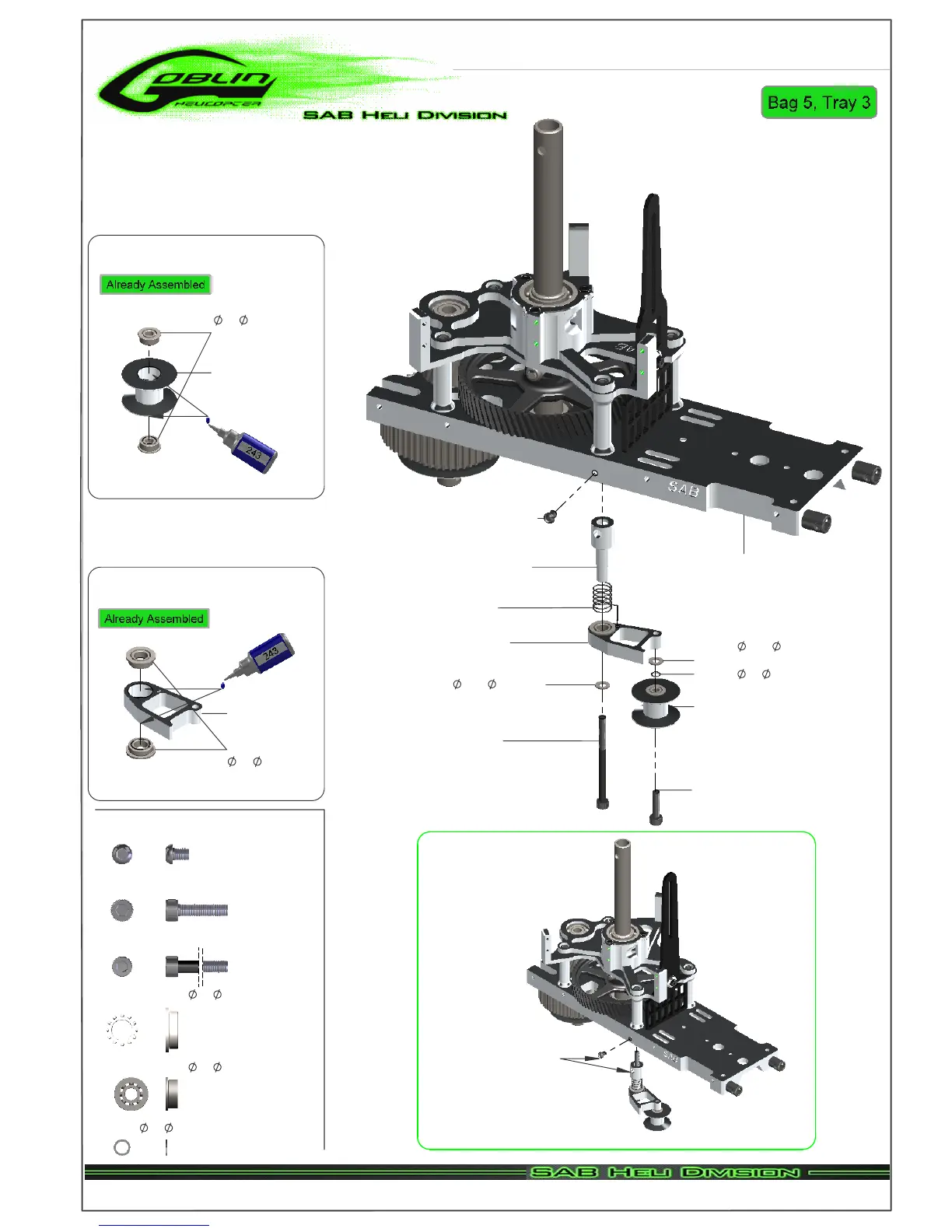

Tail Belt Idler Assembly
(H0174-S)
Belt Tensioner Arm
Assembly
(H0174-S)
Washer
3.2x 6x0.5mm
(HC180-S)
Socket Head Cap
Screw M3x40mm
(HC091-S)
Main Structure
Assembly 3
Tail Belt Idler Assembly
(H0174-S)
Button Head Cap Screw
M3x4mm
(HC038-S)
Belt Tensioner Arm Assembly
(H0174-S)
Note:
Position without preload.
Insert the screw in the
hole through the aluminum
support as in the picture.
Copyright © 2013 - SAB Heli Division - All rights reserved
Page 11
Chapter 5, Transmission Assembly
