Goblin SPEED - Page 38

Servo
Assembly 1
Servo
Assembly 2
Servo
Assembly 3
12
1
3
30
22
13
32
34
7
20
23
31
34
35
32
29
24
33
48
5
15
6
26
21
11
25
19
18
17
36
9
4
16
10
8
16
37
43
42
40
39
41
27
38
Swashplate Set - H0023
Servo Assembly 1, 2, 3
44
10
11
14
46
28
49
45
47
50
Head System
POS COD Name Specification Quantity
1 H0023 Swashplate Set 1
3 H0144 Damper Derlin 2
4 H0031 Uniball Spacers Aluminum 3
5 H0205 Unibal Radius Arms Plastic 2
6 H0132 Radius Arms Aluminum 2
7 H0182 Main Blade Grips Aluminum 2
8 H0063 Uniball M3 x 4
5 H18 1
9 H0064 Uniballs M2.5
5 H6 3
10 H0065 Uniballs M3 x 4
5 H3 8
11 H0066 Plastic Ball Linkages Plastic 8
12 H0075 Servo Spacers Carbon Fiber 6
13 H0079 Spindle Carbon Steel 1
14 H0135 Center Hub Aluminum 1
15 H0183 Blade Grip Arms Aluminum 2
16 HC008 Socket Head Cap Screws M2 x 8mm 7
17 HC020 Socket Head Cap Screws M2.5 x 8mm 3
18 HC026 Socket Head Cap Screws M2.5 x 12mm 9
19 HC044 Socket Head Cap Screws M3 x 6mm 3
20 HC102 Socket Head Cap Screws M4 x 10mm 2
21 HC062 Socket Head Cap Screws M3 x 12mm 2
22 HC111 Socket Head Cap Screw Shouldered M4 x 24mm 1
23 HC116 Socket Head Cap Screw Shouldereds M5 x 35mm 2
Head System
POS COD Name Specification Quantity
24
HC122
Button Head Cap Screws M6 x 10mm
2
25
HC140
Threaded Rods M2.5 x 18mm
3
26
H0346
Linkages Assembly
2
27
HC170
Washers 2 x 5 x 0.5mm
3
28
HC176
Washers 3 x 4 x 0.5mm
2
29
HC194
Washers 6 x 14 x 1.5mm
2
30
HC212
Metric Hex Nylon Nut M4 H5
1
31
HC218
Metric Hex Nylon Nuts M5 H4.8
2
32
HC230
Washers 10 x 16 x 1mm
4
33
HC402
Flanged Bearings 3 x 7 x 3mm
4
34
HC422
Bearings 10 x 19 x 5mm
4
35
HC438
Thrust Bearings 10 x 18 x 5.5mm
2
36
HC232
Washers 10 x 16 x 0.2mm
2
42
HC002
Socket Head Cap Screws M2 x 5mm
3
43
HC430
Bearing Rads 30 x 37 x 4mm
2
44
HA024
Oring 3050
2
45
H0235
Spacer Arm 2.5 x 4 x 6.3mm
2
46
H0134
Spacer Arm 3 x 5 x 2.7mm
2
47
HC032
Socket Head Cap Screws M2.5 x 18mm
2
48
HC068
Socket Head Cap Screws M3 x 16mm
2
49
HC400
Flanged Bearings 2.5 x 6 x 2.5mm
4
50
H0158
Blade Washers 5 x 24 x 1mm
4
Copyright © 2013 - SAB Heli Division - All rights reserved
Page 36

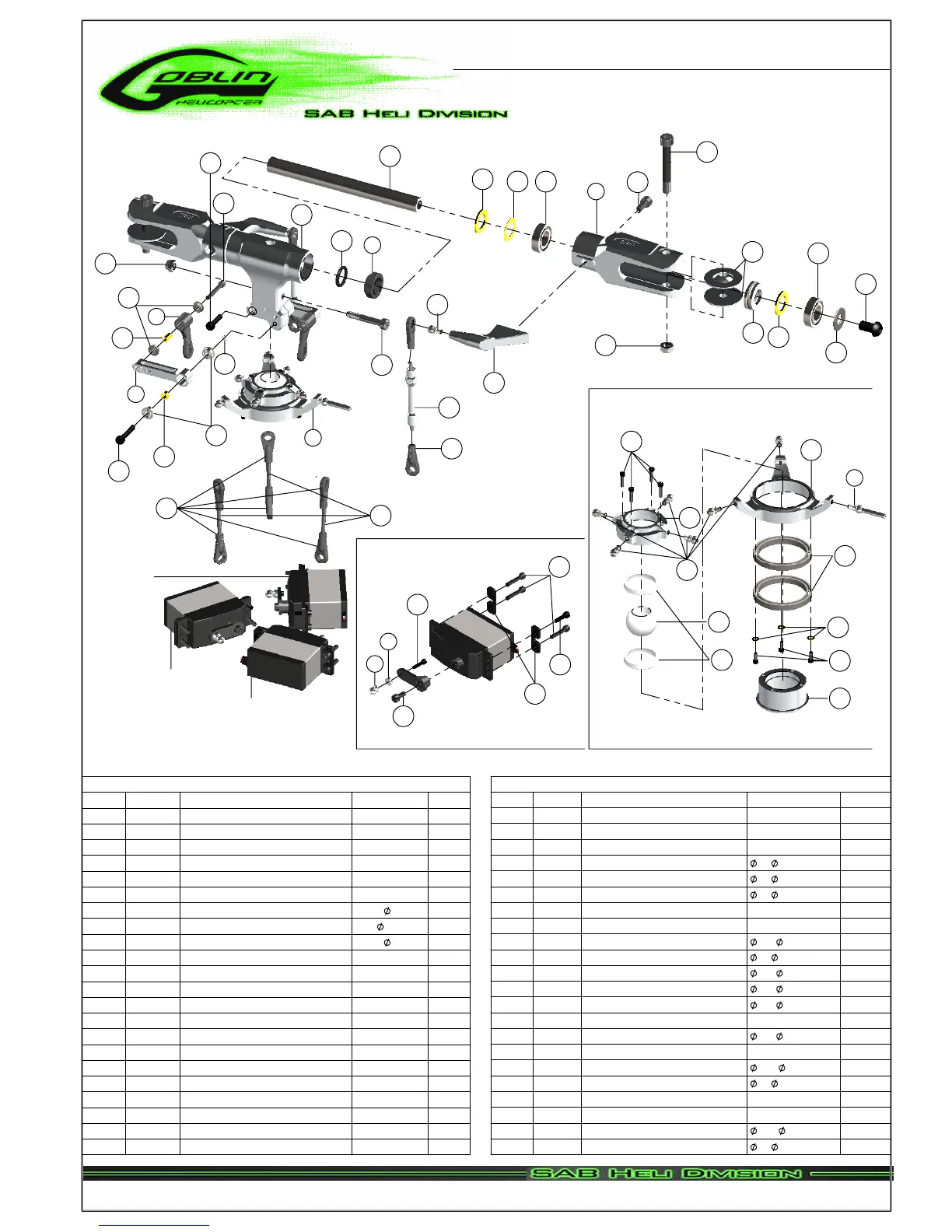

Chapter 17, Exploded view, Head System
