TAIL SYSTEM
POS COD Name Specification Quantity
1 H0007 Finishing Washer M3 Aluminum 4
2 H0029 Spacer
8.1 x 9.2 x 3.2mm 1
3 H0031 Uniball Spacer 1
4 H0040 Tail Servo Locks Plastic 2
5 H0041 Locking Element Tails Carbon Fiber 2
6 H0045 Linkage Tail Support Plastic 1
7 H0053 Tail pitch slider 01 Aluminum 1
8 H0054 Tail pitch slider 02 Aluminum 1
9 H0055 Tail pitch slider 03 Aluminum 1
10 H0058 Bell crank base Aluminum 1
11 H0059 Bell crank lever Aluminum 1
12 H0060 Spacer
3 x 4 x 9.6mm 1
13 H0064 Uniballs M2.5
5h6 2
14 H0065 Uniballs M3x4
5h3 1
15 H0066 Plastic ball links Plastic 2
16 H0072 Bush bell crank Aluminum 1
17 H0075 Servo spacer Carbon fiber 2
18 H0076 Grip link bushs Aluminum 2
19 H0078 Washers
3.1 x 12 x 1.8mm 2
20 H0082 Boom spacers 2
21 H0102 Tail pulley 27t 1
22 H0261 Tail pitch slider link Plastic 2
23 H0325 Tail rotor shaft 1
24 H0326 Tail rotor hub 1
25 H0327 Tail blade grip 2
26 H0329 Tail spindle 1
27 H0330 Washer
Spacer 5x 9x0.75mm
2
28 H0349 Washer
Spacer 7.5x 10x0.5mm
2
29
H0358
Block Nut
1
TAIL SYSTEM
POS COD Name Specification Quantity
30
H0366
Yellow Tail Boom
1
H0383
Orange Tail Boom
31
H0371 Vertical Fin
1
32
H0373 Tail Side Plate Aluminum
1
34 HC020 Socket Head Cap Screws M2.5 x 8mm 4
35 HC026 Socket Head Cap Screws M2.5 x 12mm 4
36 HC050 Socket Head Cap Screws M3 x 8mm 3
37 HC062 Socket Head Cap Screws M3 x 12mm 6
38 HC079 Socket Head Cap Screws Shoudered M3 x 18mm 2
39 HC086 Socket Head Cap Screws M3 x 22mm 1
40 HC096 Button Head Cap Screws M4 x 6mm 2
41 HC134 Flat Head Cap Screws
M3x8mm 1
42 HC150 Set Screws M3 x 20mm 1
43 HC153 Set Screws M4 x 6mm 1
44 HC165
Nylon Screw M8x20mm
2
45 HC176 Washer 1
46 HC206 Metric Hex Nylon Nuts M3 6
47 HC239 Carbon Rod
2.5 x 4 x 702mm 1
48 HC242
Threaded Rods
M2.5 x 40mm 2
49 HC304
Belt Gates 2061-3GT-06
1
50 HC335
Oring
Rubber 2
51 HC402
Flanged Bearings
3 x 7 x 3mm 2
52 HC411
Bearings
5x 10x4mm
4
53 HC414
Flanged Bearings
6 x 13 x 5mm 2
54 HC418
Flanged Bearings
8 x 12 x 3.5mm 2
55 HC435
Thrust Bearings
5x 10x4mm
2
56 HA015
Double-sided tapes
2
Copyright © 2013 - SAB Heli Division - All rights reserved
Page 37

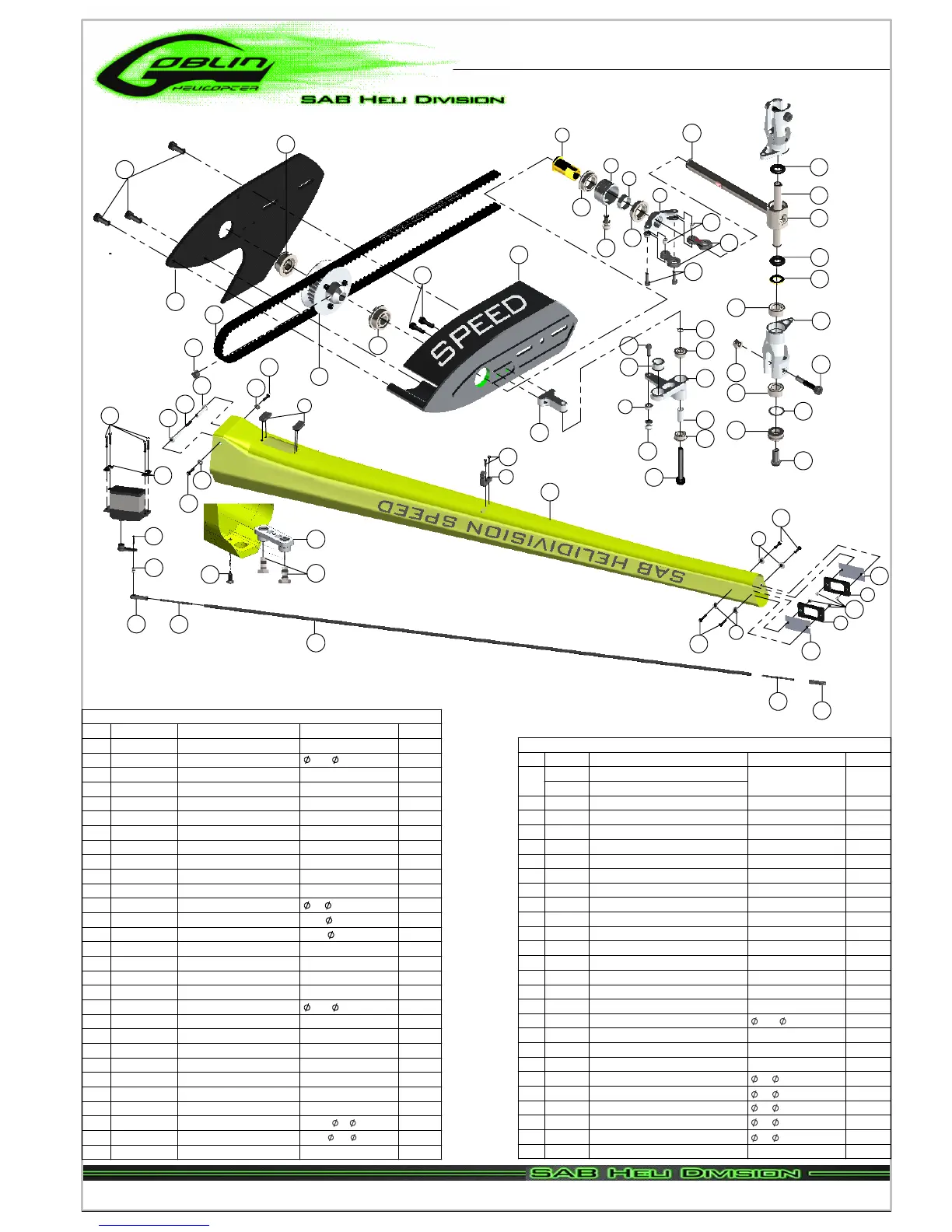

Chapter 17, Exploded view, Tail System
