- 1 x CF Battery Tray.
- 6 x Flat Head Cap Screws
M2.5x5mm.
- 2 x Canopy Mount Base.
- 1 x Main Structure.
- 1 x Servo Support.
Battery Tray
[H0002-S]
Frame Spacer
[H0003-S]
- 3 x Frame Spacers.
- 10 x Finishing Washers M3.
Finishing Washer M3
[H0007-S]
Main Structure
[H0009-S]
Servo Support
[H0010-S]
Strong Main Gear
[H0320-S]
- 1 x CF Swashplate
Anti-Rotation Guide.
- 1 x Finishing Washer M3.
- 1 x Socket Head Cap Screw
M3x8mm.
Swashplate Anti-Rotation Guide
[H0017-S]

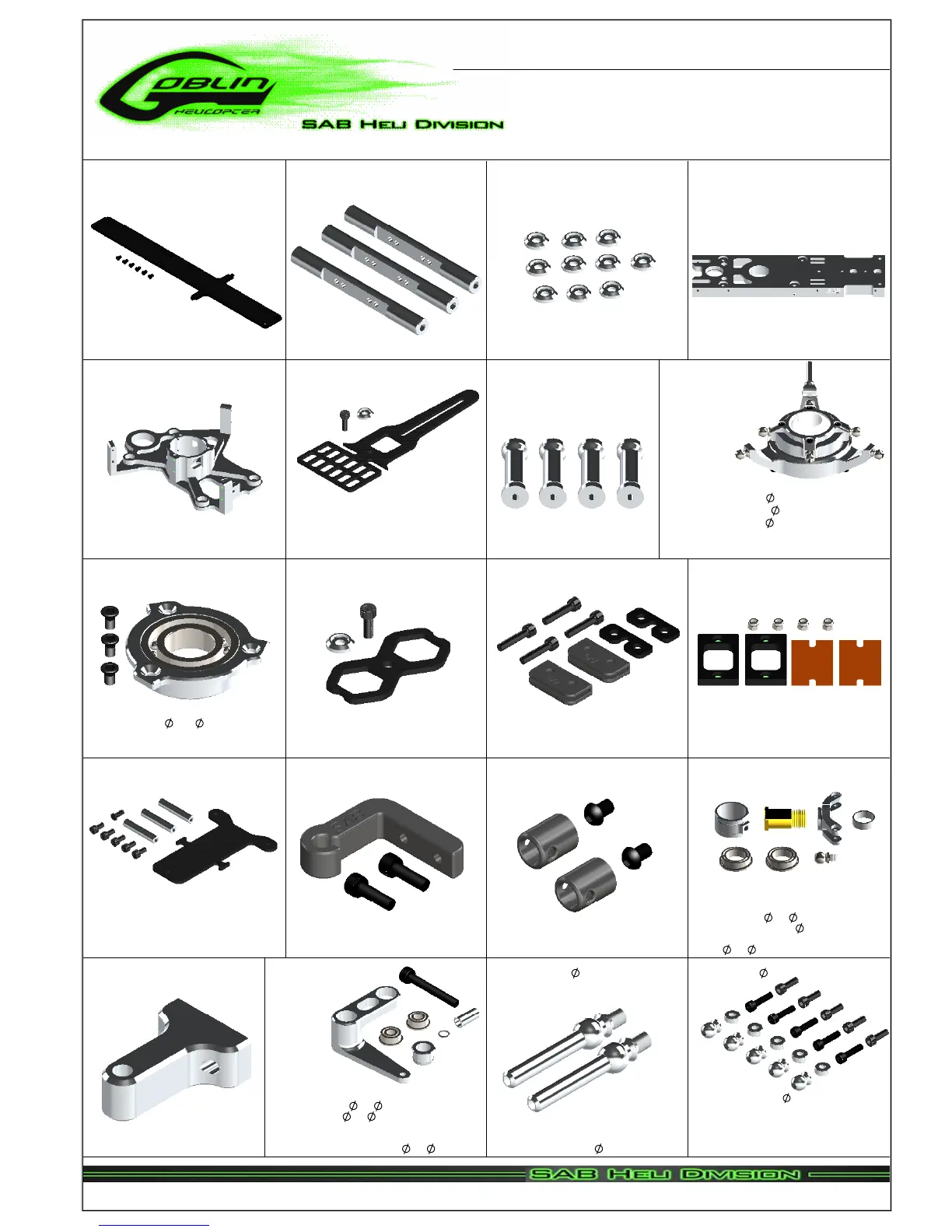

Chapter 18, Spare Parts
- 1 x Main Gear .
- 1 x Socket Head Cap Screw
M4x25mm.
- 1 x Metric Hex Nylon Nut M4 H5.
Column
[H0018-S]
4 x Columns.
- 1 x Swashplate Assembly.
- 2 x Bearings 30x
37x4mm.
- 4 x Uniballs M3x4
5 H3.
- 1 x Uniball M3x4
5 H18.
- 3 x Socket Head Cap Screws M2x5mm.
- 4 x Socket Head Cap Screws M2x8mm.
Swashplate
[H0023-S]
- 1 x Bearing Support.
- 1 x Bearing
12x
24x6mm.
- 3 x Flat Head Cap Screws
M2.5x5mm.
Bearing Support
[H0024-S]
- 1 x Safety Lock Tail Boom.
- 1 x Finishing Washer M3.
- 1 x Socket Head Cap Screw
M3x8mm.
Safety Lock Tail Boom
[H0038-S]
- 2 x Tail Servo Locks.
- 2 x Servo Spacers.
- 4 x Socket Head Cap Screws
M2.5x12mm.
Tail Servo Lock
[H0040-S]
- 2 x Locking Element Tails.
- 4 x Metric Hex Nylon Nuts M3.
- 2 x Double Sided Tapes.
Locking Element Tail
[H0041-S]
Spacer Flybarless
[H0043-S]
- 3 x Spacer Flybarless.
- 1 x Supporto Flybarless.
- 1 x Flat Head Cap Screw M3x8mm.
- 5 x Socket Head Cap Screws
M3x6mm.
- 1 x Linkage Tail Support.
- 2 x Socket Head Cap
Screws M2.5x6mm.
Linkage Tail Support
[H0045-S]
- 2 x Antenna Guide.
- 2 x Button Head Cap
Screws M3x4mm.
Antenna Guide
[H0050-S]
- 1 x Tail Pitch Slider 01.
- 1 x Tail Pitch Slider 02.
- 1 x Tail Pitch Slider 03.
- 1 x Spacer
8x
9x3.2mm.
- 1 x Uniball M3x4
5H3.
- 2 x Flanged Bearings
8x
12x3.5mm
Tail Pitch Slider
[H0053-S]
22T Pulley
[H0175-21-S]
- 1 x 19T Pulley.
- 1 x Set Screws M4x4.
- 1 x 22T Pulley.
- 1 x Set Screws M4x4.
- 1 x 37
T Pulley.
- 4 x Socket Head Cap Screws
M2x8mm
- 1 x Socket Head Cap Screw
Shouldered M2.5x19mm.
- 1 x Metric Hex Nylon Nut M2.5H3.5.
37T Pulley
[H0172-S]
- 1 x 23T Pulley.
- 1 x Set Screws M4x4.
23T Pulley
[H0175-23-S]
- 1 x 21T Pulley.
- 1 x Set Screws M4x4.
21T Pulley
[H0175-21-S]
- 1 x 20T Pulley.
- 1 x Set Screws M4x4.
20T Pulley
[H0175-20-S]
19T Pulley
[H0175-19-S]
18T Pulley
[H0175-18-S]
- 1 x 18T Pulley.
- 1 x Set Screws M4x4.
- 1 x 60T Pulley .
- 1 x Bush One Ways.
- 2 x Bearings
10x
15x4mm
- 2 x One Way Bearing 10x14x12mm.
- 1 X Washer
10x
16x0.2mm
60T Pulley
[H0171-S]
20T Drive Pinion
[H0125-S]
- 1 x 20T Drive Pinion.
- 1 x Socket Head Cap Screw
Shouldered M2.5x19mm.
- 1 x Metric Hex Nylon Nut
M2.5 H3.5.
- 1 x Bearing 3
Support.
- 1 x Motor Support.
- 1 x Flanged Bearing
6x
13x5mm.
- 2 x Socket Head Cap Screws M3x8mm.
- 2 x Set Screws M5x20mm.
- 2 x Washers
5.3x
15x1mm.
- 2 x Metric Hex Nylon Nuts M5H4.8.
- 2 x Finishing Washers M3.
- 2 x Socket Head Cap Screws
M3x10mm.
- 2 x Metric Hex Nylon Nut M3 H4.
- 2 x Springs de 5.8/ df0.5 / LL9.
- 2 x Springs de 3/ df0.5 / LL12.
Motor Support
[H0143-S]
Canopy Mount Base
[H0801-S]
ESC Support
[H0088-S]
- 1 x ESC Support.
- 2 x Frame Spacer.
- 4 x Flat Head Cap Screws M2.5x5mm.
- 1 x CF Main Frame.
- 1 x Bell Crank Base.
Bell Crank Base
[H0058-S]
Bell Crank Lever
[H0059-S]
- 1 x Bell Crank Lever.
- 1 x Bush Bell Crank.
- 1 x Washer
3x
4x0.5mm.
- 1 x Spacer
3x
4x9.6mm.
- 1 x Socket Head Cap Screw
M3x22mm.
- 2 x Flanged Bearings
3x
7x3mm.
- 1 x Uniball M3x4
5H18
- 5 x Uniballs M2
5H6.
- 5 x Uniball Spacers.
- 5 x Socket Head Cap
Screws M2x8mm.
- 5 x Socket Head Cap
Screws M2x6mm.
Uniball M2
5H6
[H0064-S]
Uniball M3x4
5H18
[H0063-S]
Copyright © 2013 - SAB Heli Division - All rights reserved
Page 38
