Goblin SPEED - Page 7

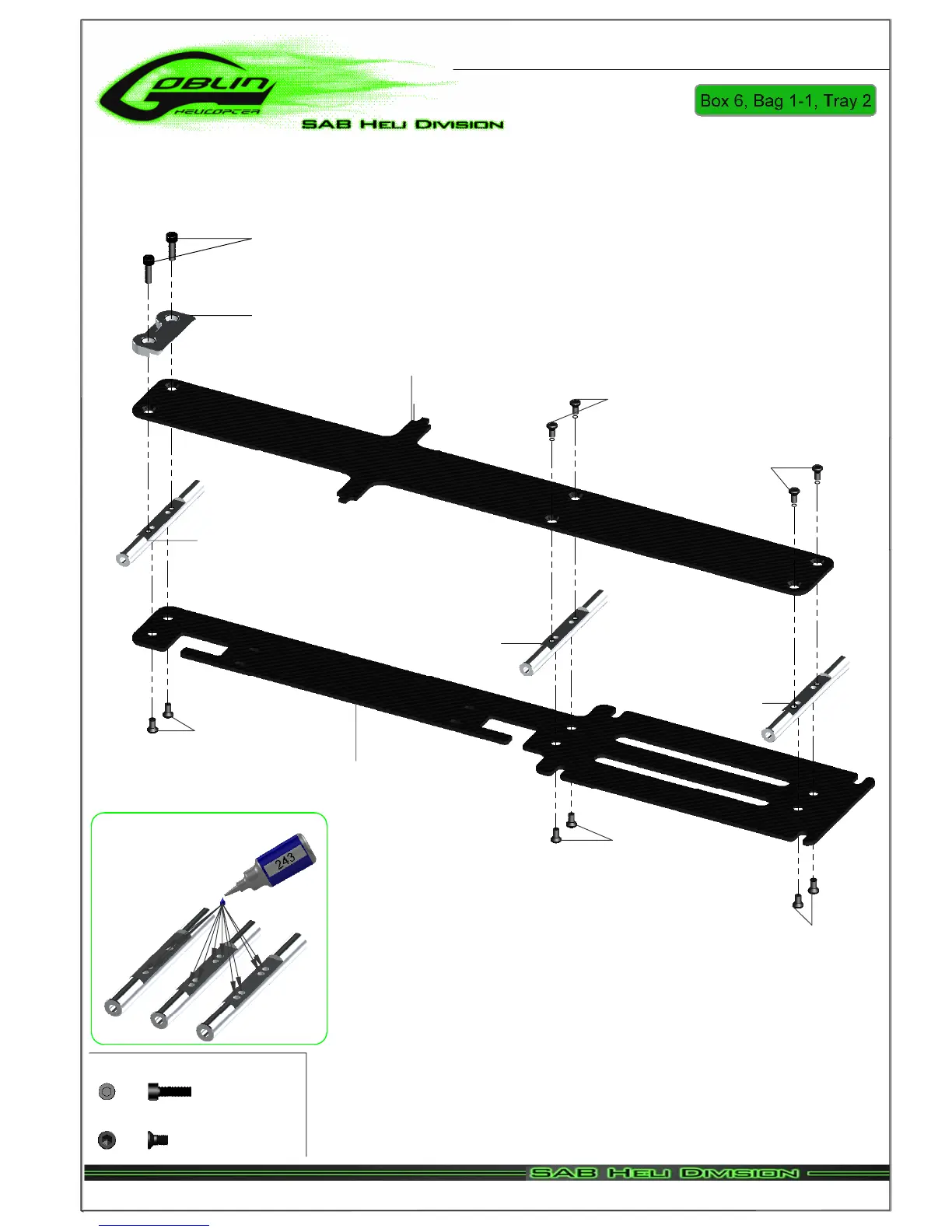

Frame Spacer
(H0003-S)
......x10
Flat Head Cap Screw M2.5x5mm
Flat Head Cap Screw
M2.5x5mm
(HC128-S)
Stop Battery Plate
(H0150-S)
Socket Head Cap Screw
M2.5x8mm
(HC020-S)
Frame Spacer
(H0003-S)
Frame Spacer
(H0003-S)
Frame Spacer
(H0003-S)
Frame Spacer
(H0003-S)
ESC Support
(H0369-S)
ESC Support Assembly
Flat Head Cap Screw
M2.5x5mm
(HC128-S)
ESC Support
(H0153-S)
Flat Head Cap
Screw M2.5x5mm
(HC128-S)
Flat Head Cap Screw
M2.5x5mm
(HC128-S)
Battery Support Assembly
Flat Head Cap Screw
M2.5x5mm
(HC128-S)
Flat Head Cap Screw
M2.5x5mm
(HC128-S)
Flat Head Cap Screw
M2.5x5mm
(HC128-S)
Battery Tray
(H0002-S)
Socket Head Cap Screw M2.5x8mm
......x2
Note:
