Goblin SPEED - Page 8

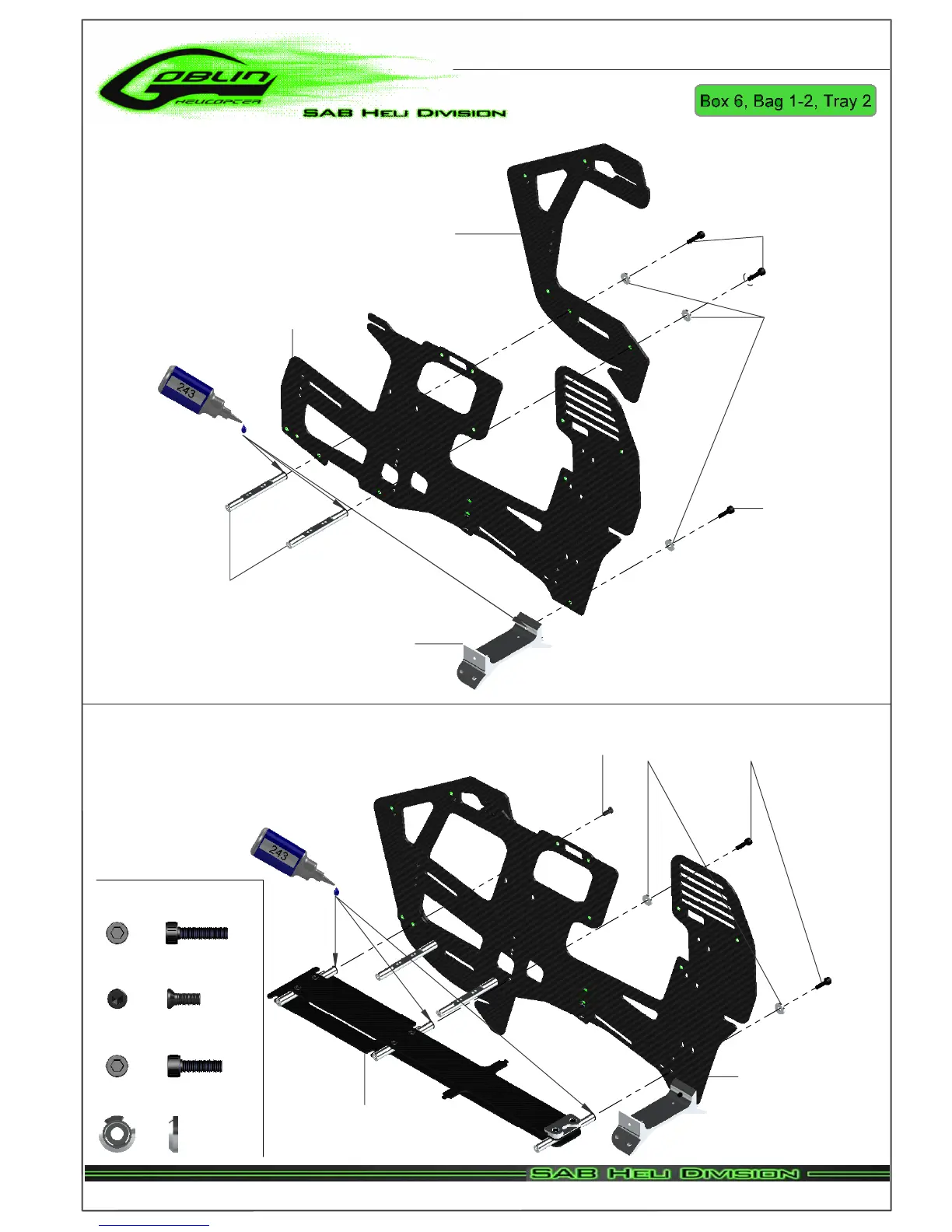

Socket Head Cap
Screw M3x10mm
(HC056-S)
Finishing Washer M3
(H0007-S)
Main Frame 1
(H0354-S)
......x3
Finishing Washer M3
......x5
Socket Head Cap
Screw M3x12mm
(HC62-S)
Socket Head Cap
Screw M3x10mm
(HC056-S)
Finishing
Washer M3
(H0007-S)
Flat Head Cap
Screw M3x8mm
(HC134-S)
Socket Head Cap Screw
M3x10mm
Flat Head Cap Screw
M3x8mm
......x1
Socket Head Cap Screw
M3x12mm
......x2
Note:
Landing Gear Support
(H0005-S)
Frame Spacer
(H0003-S)
Vertical ESC Support
(H0368-S)
Landing Gear Mount Speed
(H0374-S)
Right Main Frame Assembly
Right Main Frame Assembly
Battery Support
Assembly
