01. Flash Head
02. LED Modeling Lamp(01~10)
03. Wireless Sensor
04. Focus Assist Beam
05. Sync Cord Jack
06. Type-C USB Port
07. Battery Remove Button
08. Hotshoe
09. LCD Panel
10. Hotshoe Fixing Buckle
11. Lithium Battery
● Body
● Control Panel
● LCD Panel

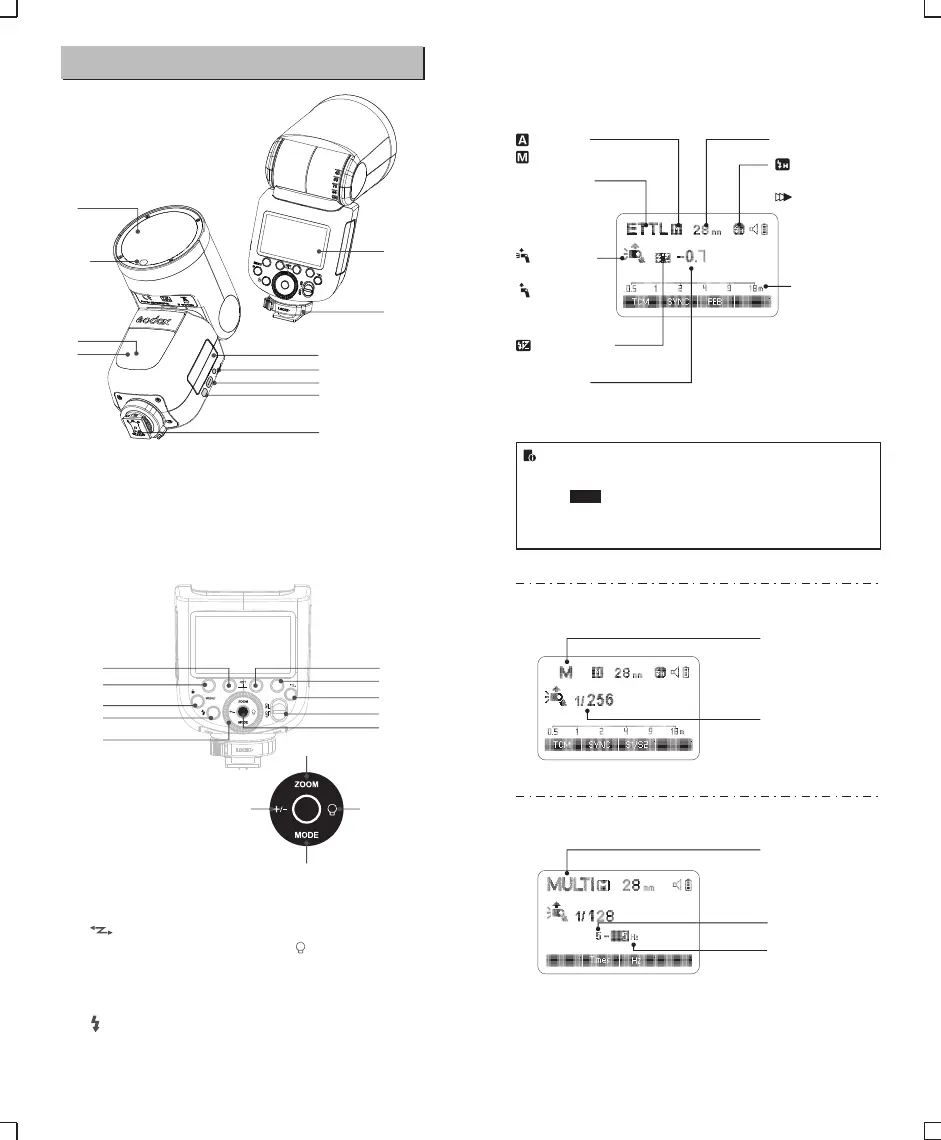

Name of Parts
(1)E-TTL Autoflash
Zoom : zoom display (Page 54)
: Automatic
: Manual(Page 44)
ETTL : E-TTL II
autoflash
: Master unit
flash ON
: Master unit
flash OFF
Focus length (Page 4)5
: High-speed sync
(Page 43)
: Second curtain
sync (Page 43)
: Flash exposure
compensation (Page 41)
Distance indicator
display
Flash exposure
compensation amount
(2)M Manual Flash
● The display will only show the settings currently applied.
● The functions displayed above function buttons 1 to 4, such
as and <A/B/C/D> , change according to settings’
status.
● When a button or dial is operated, the LCD panel illuminated.
M : Manual flash
Manual flash output
(3)Multi Flash
Multi : Stroboscopic flash
Number of flashes
Flash frequency
12. <MENU>Flash Menu
Button/Locking Button
13. < >Wireless Selection
Button
14. Select Dial
15. Set Button
16. ON/OFF Power Switch
17. < > Test Button / Flash
Ready Indicator
18. <ZOOM> Focus Length
Setting
19. <MODE>Mode Selection
Button
20. < >Modeling Lamp Setting
21. <+/->Power Output
22. Function Button 1
23. Function Button 2
24. Function Button 3
25. Function Button 4
SYNC
09
05
07
08
04
01
06
02
10
11
17
23
24
15
13
12
25
16
22
14
18
19
21 20
- 35 -
- 36 -
03
