02. LED Modeling Lamp(01~10)
01. Flash Head
03. Wireless Sensor
04. Focus Assist Beam
05. Sync Cord Jack
06. Type-C USB Port
08. Hotshoe
09. LCD Panel
10. Hotshoe Fixing Buckle
11. Lithium Battery
07. Battery Remove Button
● Body
● Control Panel
● LCD Panel

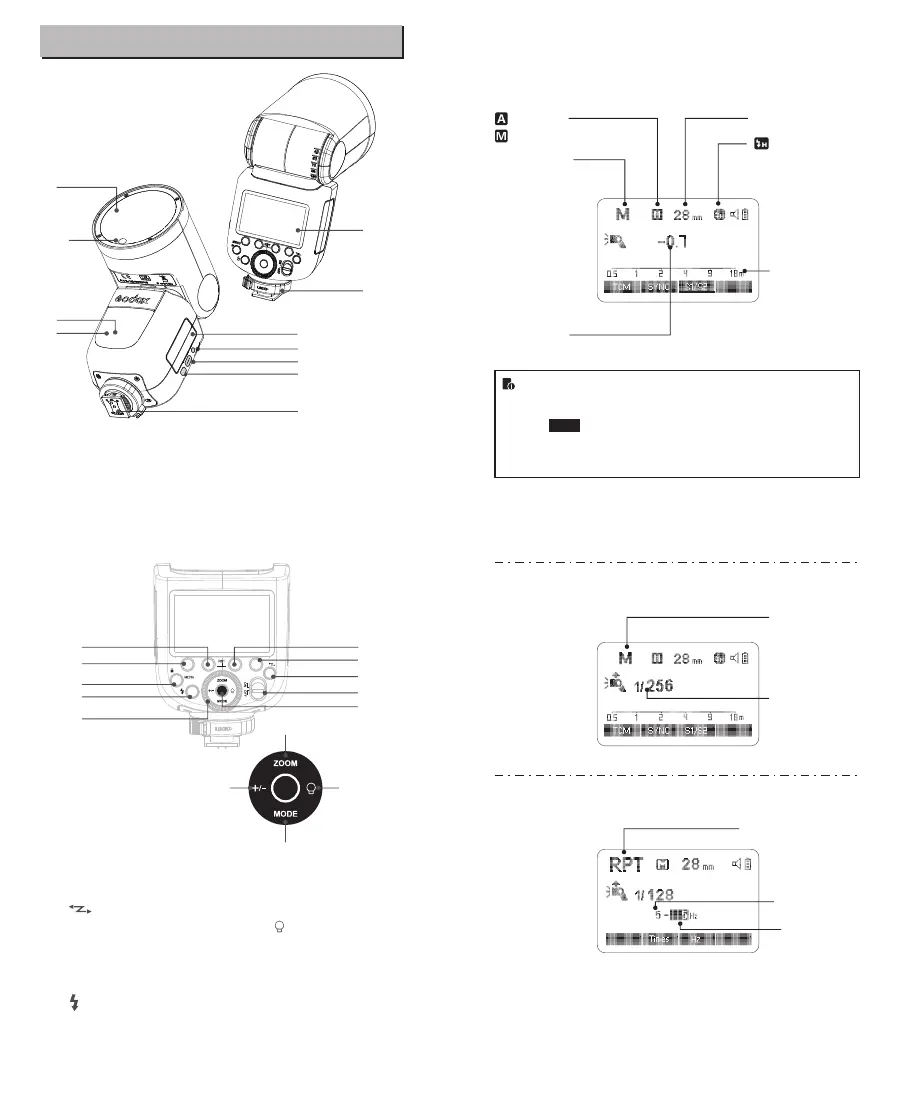

Name of Parts
(1)i-TTL Autoflash
Zoom : zoom display (Page 51)
: Automatic
: Manual(Page 41)
i-TTL : i-TTL
autoflash
Focus length (Page 1)5
: High-speed sync
(Page 40)
Distance indicator
display
Flash exposure
compensation amount
(2)M Manual Flash
● The display will only show the settings currently applied.
● The functions displayed above function buttons 1 to 4, such
as and <M/A/B/C> , change according to settings’
status.
● When a button or dial is operated, the LCD panel illuminated.
M : Manual flash
Manual flash output
(3) RPT Flash
RPT: Stroboscopic flash
Number of flashes
Flash frequency
17. < > Test Button / Flash
Ready Indicator
19. <MODE>Mode Selection
Button
20. < >Modeling Lamp Setting
21. <+/->Power Output
25. Function Button 4
15. Set Button
24. Function Button 3
14. Select Dial
18. <ZOOM> Focus Length
Setting
22. Function Button 1
12. <MENU>Flash Menu
Button/Locking Button
13. < >Wireless Selection
Button
23. Function Button 216. ON/OFF Power Switch
SYNC
09
05
07
08
04
01
06
02
10
11
17
23
24
15
13
12
25
16
22
14
18
19
21 20
03
