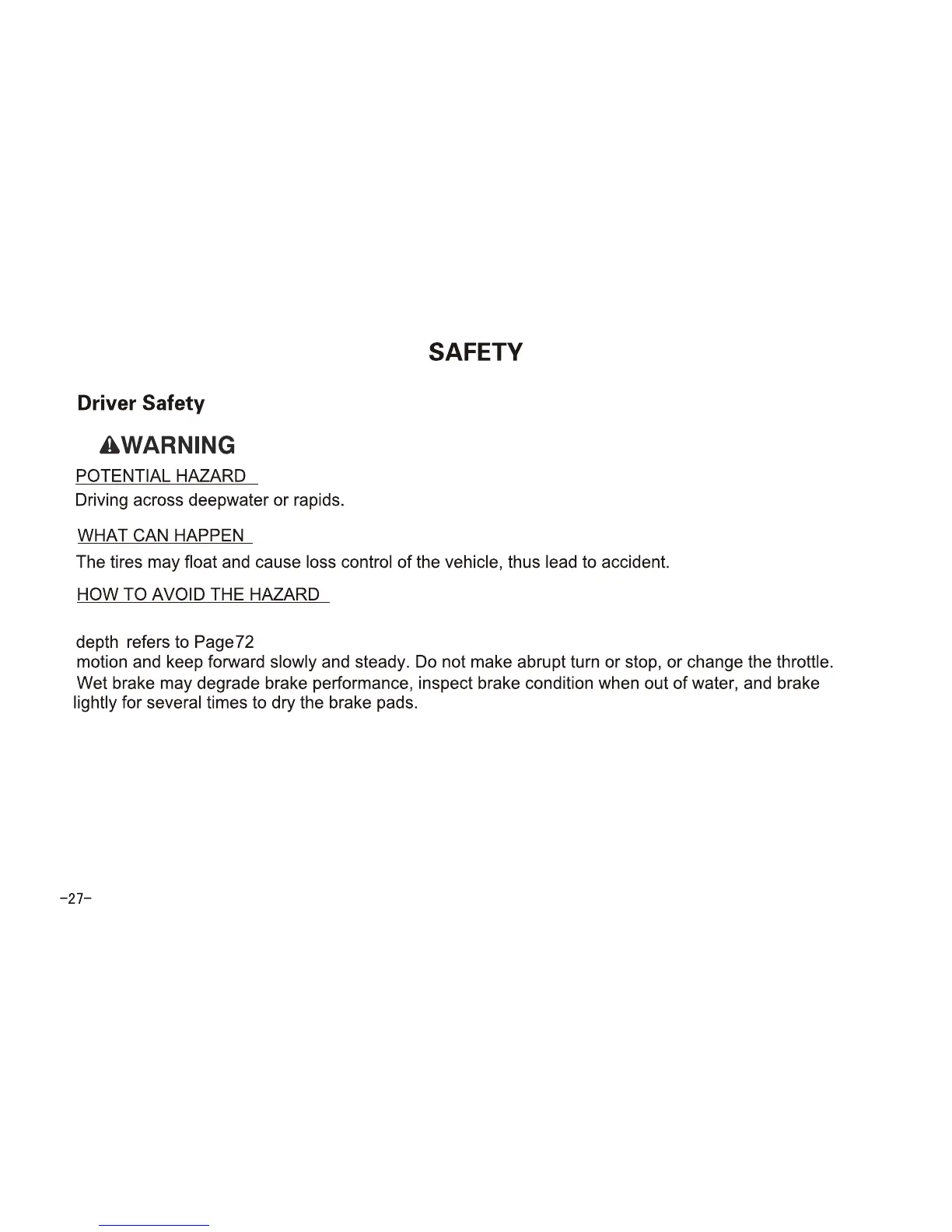

Avoid operating ATV in deepwater or rapids, if it is unavoidable to enter water that exceeds max

you must drive slowly and keep balance, avoid sudden operational
