Gojo LTX - Transmitter Module Installation Procedure; Initial Door Release and Preparation; Module Placement and Antenna Routing

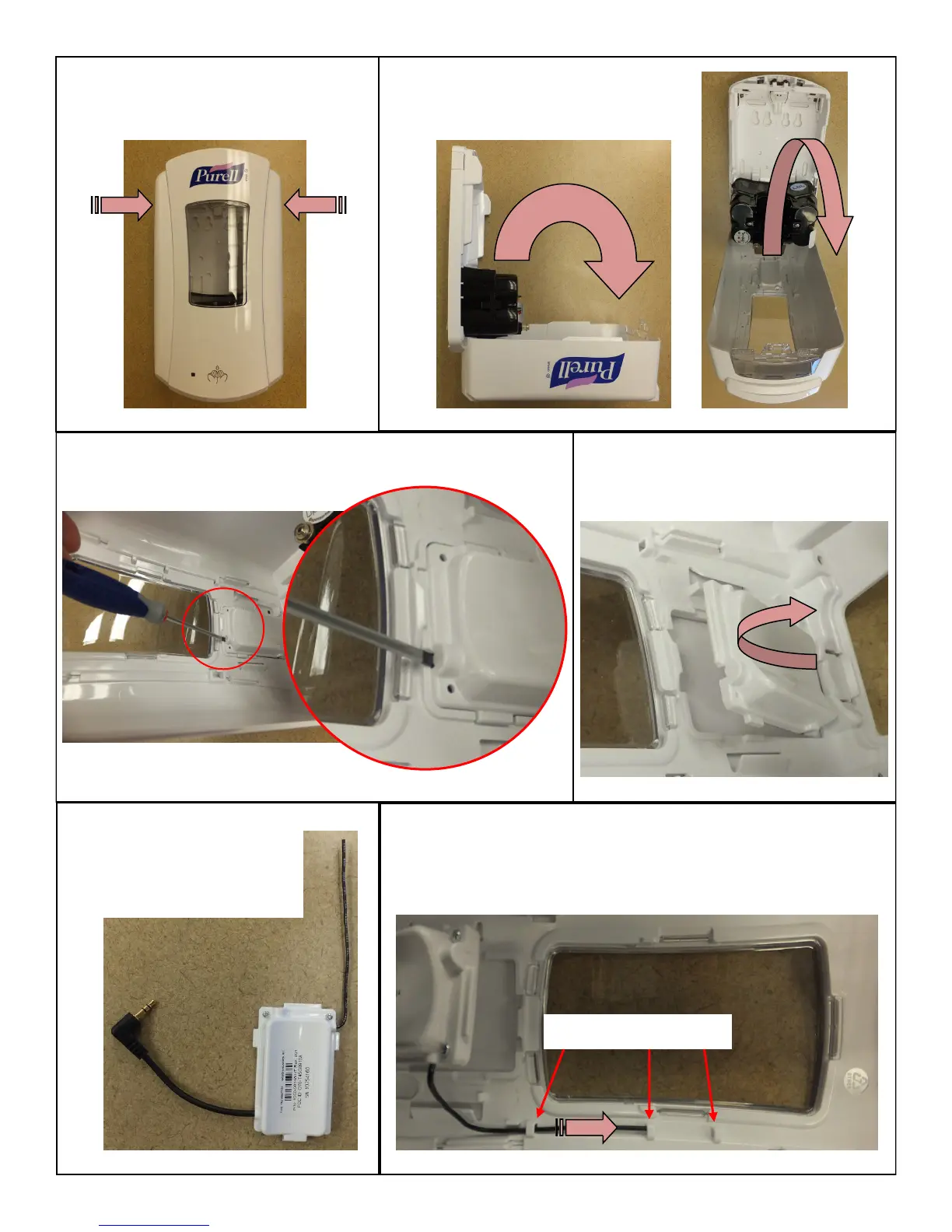

1.
Press the LTX door latches inward
to release the door.
2.
Pull the top of the door forward.
3.
Use a athead screwdriver to li the slot
cover away from the cabinet. 4.
Remove and discard the
slot cover.
5.
Remove the LTX trans-
mier module from the
packaging and straighten
the antenna wire.
6.
Align the transmier module base into the ng in the door,
and feed the antenna wire up through the retainierslots.
Antenna wire retainer slots
