GOK EN61-DS.2 User Manual

Low pressure regulator Type EN61-DS.2
4 / 8 part no. 01 153 53

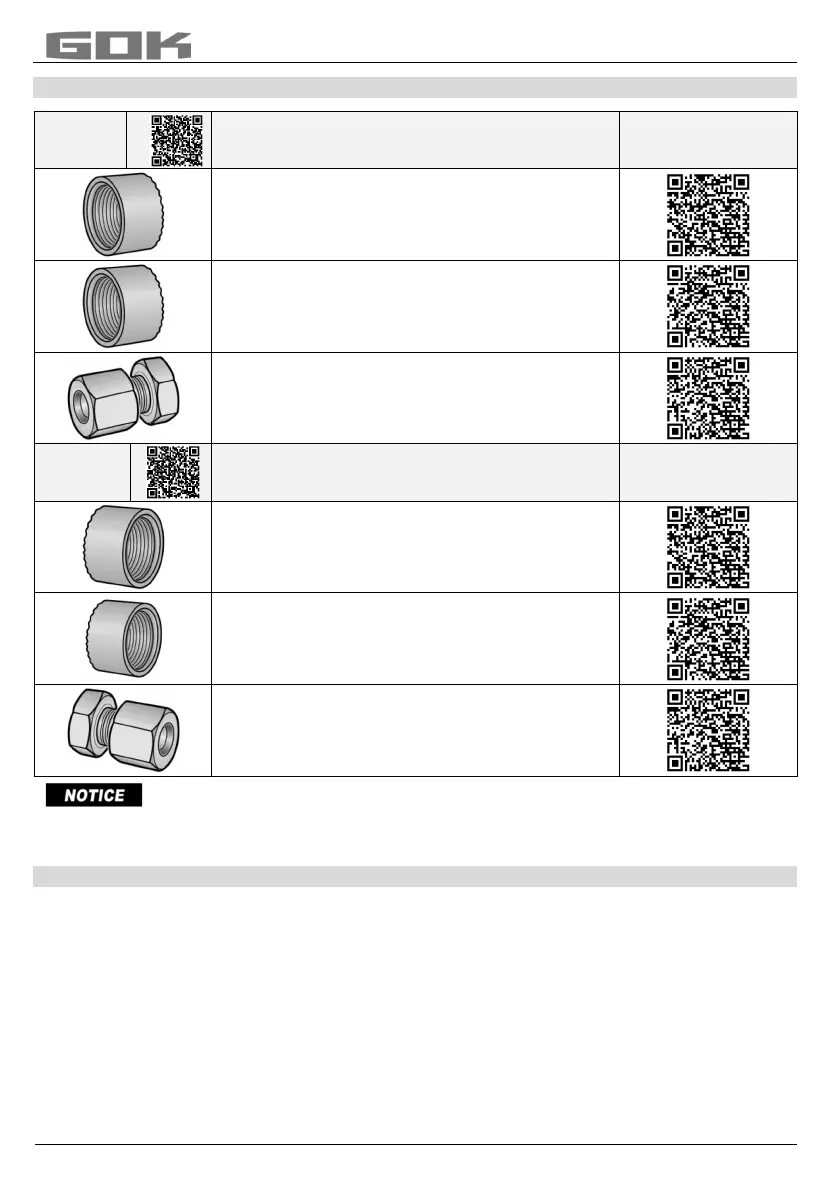

CONNECTIONS
Inlet,
optional
Trading name and dimensions
acc. to standard
Installation notes
Female thread, cylindrical
• G.14 = optionally Rp 1/4, Rp 3/8, Rp 1/2,
Rp 3/4, Rp 1, Rp 1 1/4, Rp 1 1/2, Rp 2
Cylindrical female thread
• G.37 = F G 1/4, G 3/8, G 1/2, G 3/4 or G 1
• For a screw-in connector with O-ring
Compression fitting
• G.15 = compr. fit 8, 10
• G.22 = compr. fit 12, 15, 18, 22, 28 or 35
Outlet,
optional
Trading name and dimensions
acc. to standard
Installation notes
Female thread, cylindrical
• H.7 = optionally RP 1/4, RP 3/8
Screw-in connector
• H.22 = G 1/4, G 3/8, G 1/2, G 3/4 or G 1
• For a screw-in connector with O-ring
Compression fitting
• H.8 = compr. fit 12, compr. fit 15, compr. fit 18,
compr. fit 22, compr. fit 28, compr. fit 35
•
H.9 = compr. fit 8, compr. fit 10
Alternatively, other connections can be obtained from the manufacturer on request.
ASSEMBLY
Before assembly, check that the product is complete and has not suffered any damage during
transport.
ASSEMBLY must be carried out by a specialised company.
See USER QUALIFICATION!
The specialised company and the operator must observe, comply with and understand all of
the following instructions in this assembly and operating manual. For the system to function
as intended, it must be installed professionally in compliance with the technical rules
applicable to the planning, construction and operation of the entire system.
