VII. DISASSEMBLY
Fold Down and Lock the Tiller
6. Push in and turn the tiller lock clockwise 90 degrees. See #1 on figure 16.
This will lock the front wheel to keep it from turning side to side to help control while
carrying.

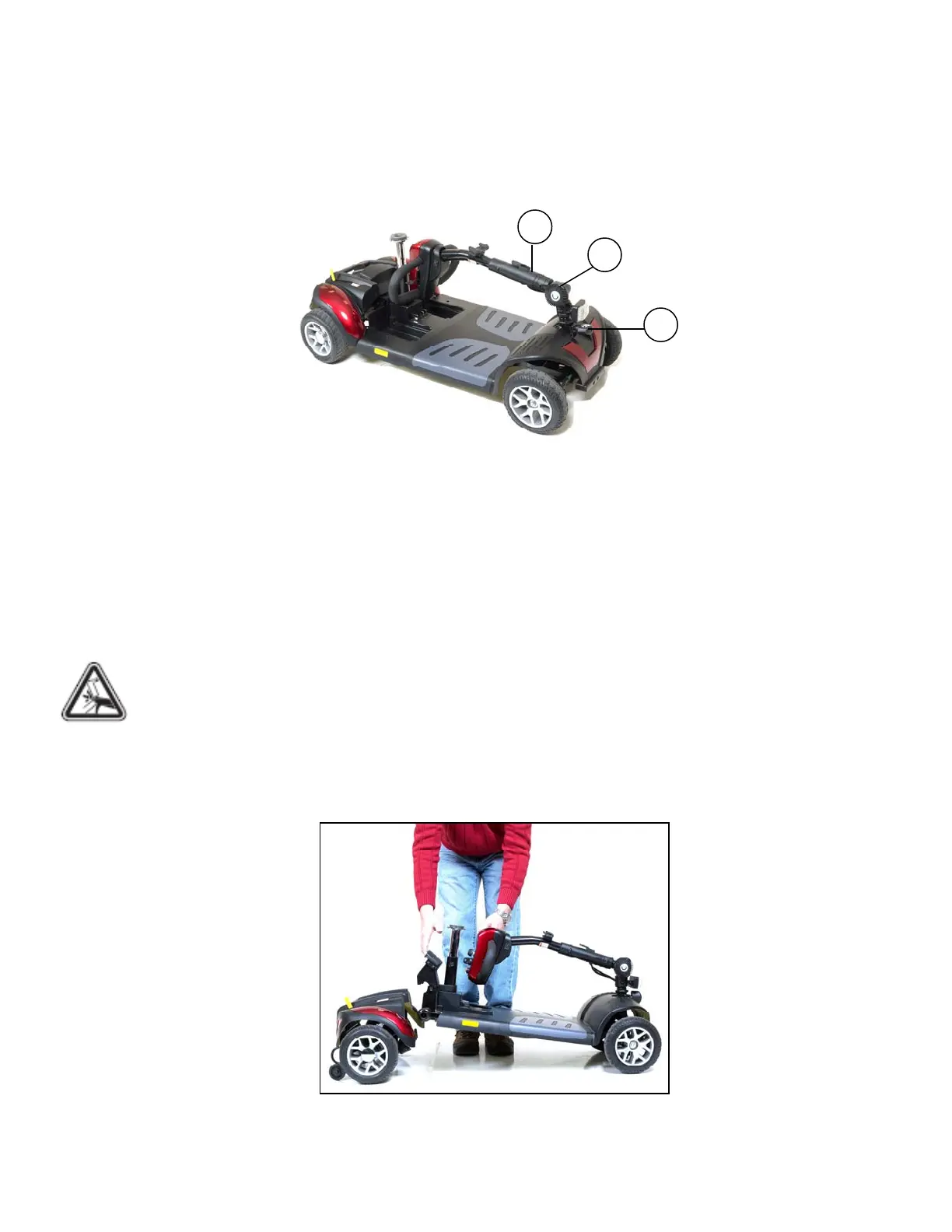

Figure 16. Lowered Tiller
6. Loosen tiller adjustment knob and fold the tiller down flat. See #2 on Figure 16. Then
tighten the adjustment knob to secure the tiller in its new position. Once the tiller is
lowered and locked, you may use it as a handle for easy transportation. Grab it by the
plastic on the tiller. See #3 on Figure 16.
Separate the Drivetrain from the Frame
WARNING! Be careful not to pinch your fingers between the frames. This area is
a pinch-point and requires your full attention.
7. Pull up on the drivetrain release lever with one hand to unlock the front and rear
frame sections. See Figure 17.
8. Pull the front frame up and off of the drivetrain. See figure 17.
Figure 17. Separating the Drivetrain and Frame
1
3
2
