HARDWARE NEEDED (ACTUAL SIZE)
3/8-16 X 7.00 HHCS, ZINC GR 5
1B-6484-10
22
3/8" WASHER
701-50
QTY. 2
36
3/8-16 LOCKNUT
901-28
QTY. 1
42
WASHER 0.38 ID X
1.25 OD NYLON
3M-6883-00
QTY. 2
34
34
9/16”
TOOLS NEEDED
9/16”
36
36
42

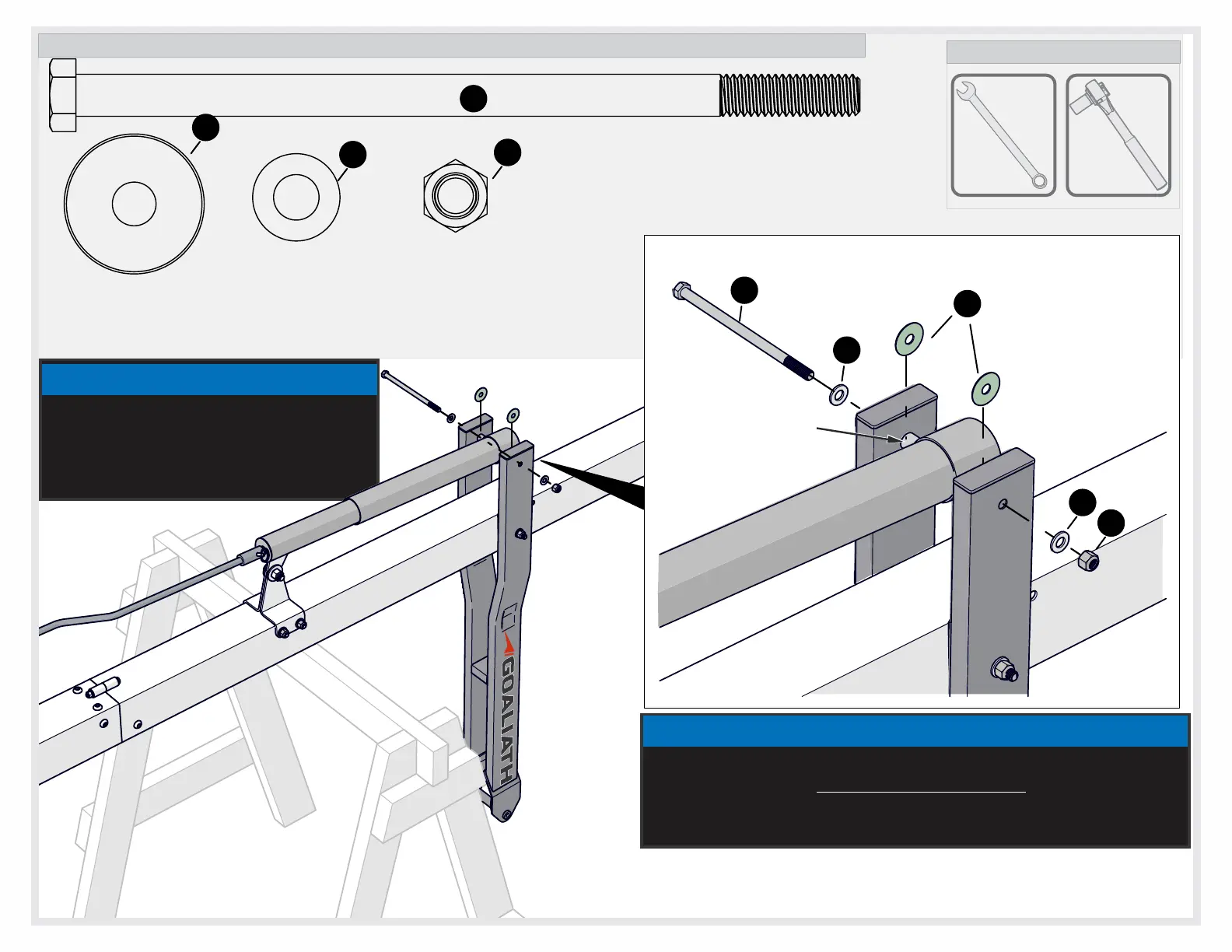

Pivot actuator up and attach to the lower board arm assembly.
Tighten hardware but back off half a turn once you feel the
hardware is snug. Make sure Nylon Washers (#34) are installed
between the arms and Actuator pivot tube as shown.
NOTE
Pivot
Tube
(#16)
19
If needed extend the actuator by turning
the handle clockwise until the actuator
Pivot tube hole lines up with the holes
on lower board arm.
NOTE
QTY. 1
22
To Next Page
