30
Screw #31
Detail B
10
HARDWARE NEEDED (ACTUAL SIZE)
31
31
31
31
31
7. Check all nuts and bolts and make sure everything is
tightened properly.DO NOT over tighten pivot points,
snug is tight enough.

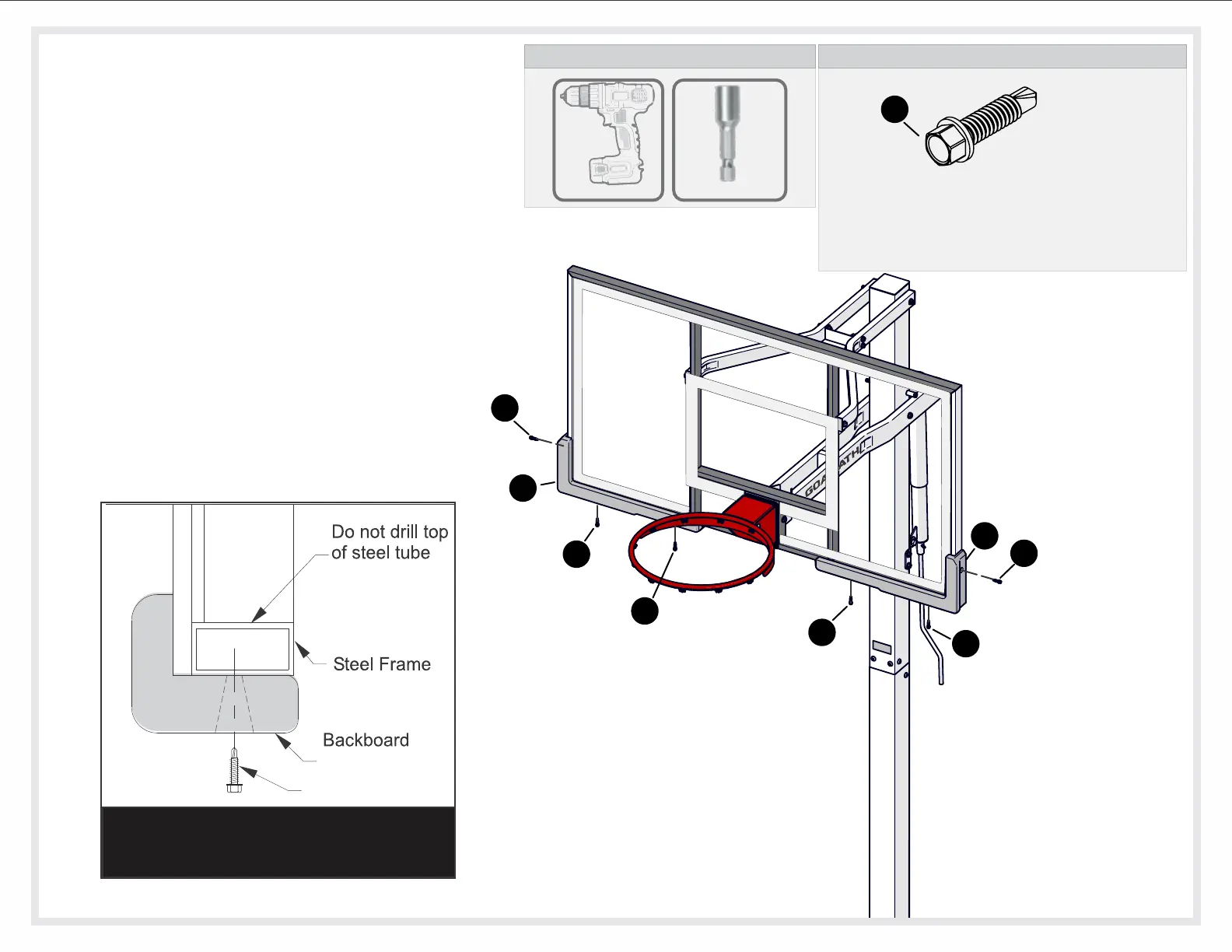

8. Use the Backboard Pads (#44) and (#45) as a template and
mark the hole locations on the backboard frame. See Detail B.
10. Secure Backboard Pads (#10) and (#11), as shown, using
screws (#31). Note: Tighten screws tight but, do not over
tighten.
9. Drill 9/64" pilot holes into steel backboard frame. See
Detail A. Do not drill through both sides of
backboard tube frame.
Note: Cordless drill recommended for screw installation.
Do not over tighten screws causing screws to strip.
Note: Screws (#31), used in step 10, are Self Drilling
screws and can be installed without drilling pilot holes.
However, it will be easier to install screws if you drill
9/64” pilot holes. WEAR SAFETY GLASSES if drilling holes.
Note: To install screws, it will be easier if you use a
cordless drill with 5/16” socket (instead of Phillips head).
Pad #10 & #11
31
TOOLS REQUIRED
Cordless Drill
Socket Adapter
11
31
#10 X 1.0 ZINC SELF DRILLING /
SSELF TAPPING SCREW
1B-6479-00
QTY. 6
To Next Page
