goliath IGNITE B2256EF - Securing the Pole to Anchor Bolts

25

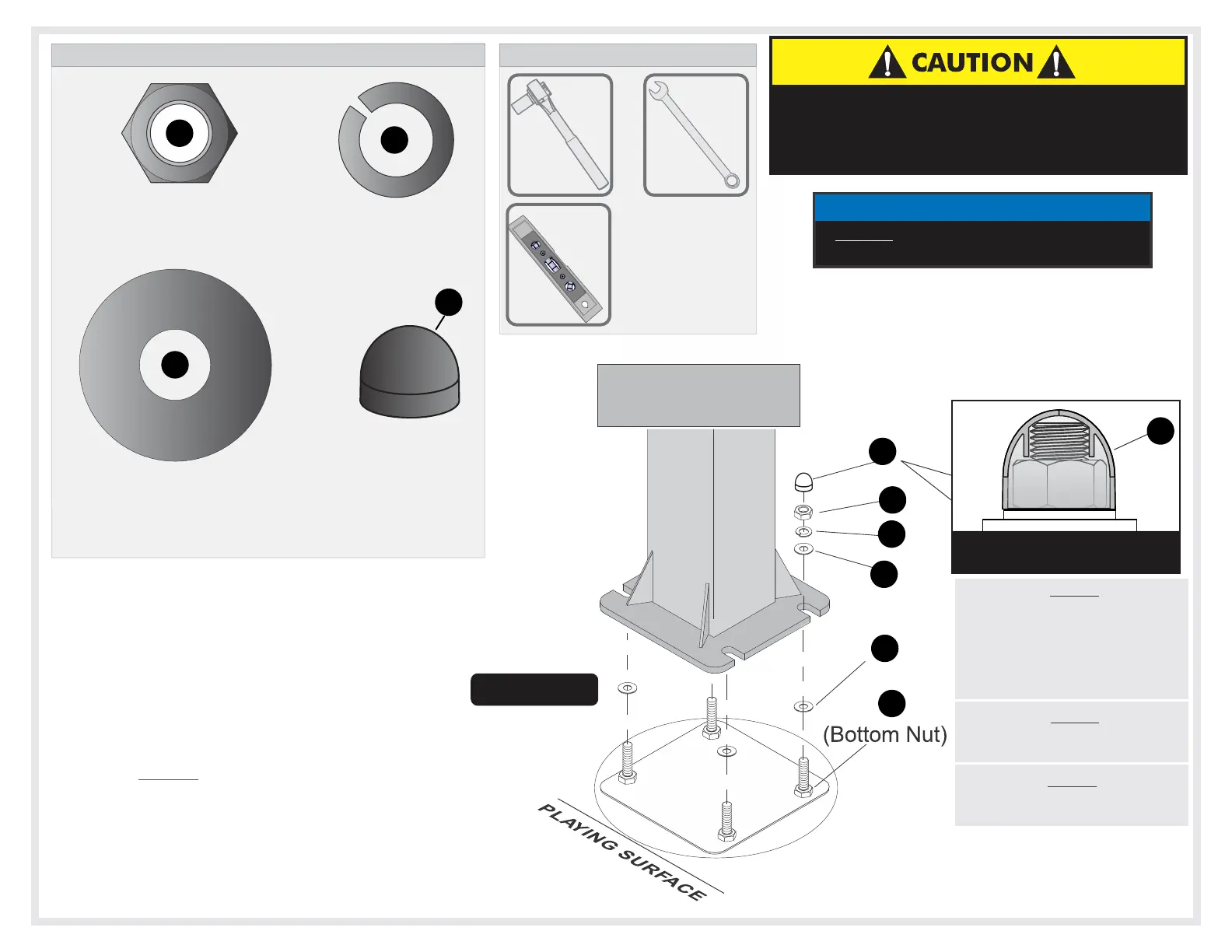

Figure 10
T
NOTE:
If basketball system needs to be
moved, do not try to salvage
caps. Caps (#48) will be tight,
please remove with plyers and
discard. New caps will come in
new anchor system.
NOTE:
If (#48) caps are missing for any
reason please call customer service.
DETAIL A
PLACING THE POST ON THE ANCHOR SYSTEM
REQUIRES AT LEAST TWO CAPABLE ADULTS.
POLE WILL WANT TO LEAN WHILE ATTEMPTING TO
STAND IT UP ON ANCHOR BOLTS.
NOTE:
Bottom nuts #45 can be used for
leveling system.
4. Push on Thread Protector Cap 48 until it is
securely in place. Cap may be tight, push
hard but DO NOT hit with a hammer! See
Detail A.
3. Lift post onto anchor system and secure with
hardware as shown. Tighten Fasteners finger
tight, leave loose enough to level pole. Place a
level on pole and adjust bottom nuts 45 until
pole is level (left to right and front to back).
Tighten top four hex nuts 45 tight.
Let concrete cure for a
MINIMUM of 72 hours
before installing pole.
5/8" FLAT WASHER
2B-6834-00
(QTY. 8)
*Hardware located in Anchor kit box
48
47
45
46
5/8"-11 HEX NUT
2B-6097-00
(QTY. 4)
5/8" SPLIT LOCK
WASHER
2B-6099-00
(QTY. 4)
5/8" THREAD
PROTECTOR
PLASTIC CAP
3M-9040-01
(QTY. 4)
HARDWARE NEEDED (ACTUAL SIZE)
TOOLS NEEDED
15/16”
OR
15/16”
Level
DO NOT REMOVE BOTTOM NUTS #45 THAT
YOU INSTALLED IN STEP 2 (PAGE 4).
NOTE
48
45
46
47
47
45
48
