CODEPROX-N
www.golmar-seguridad.es

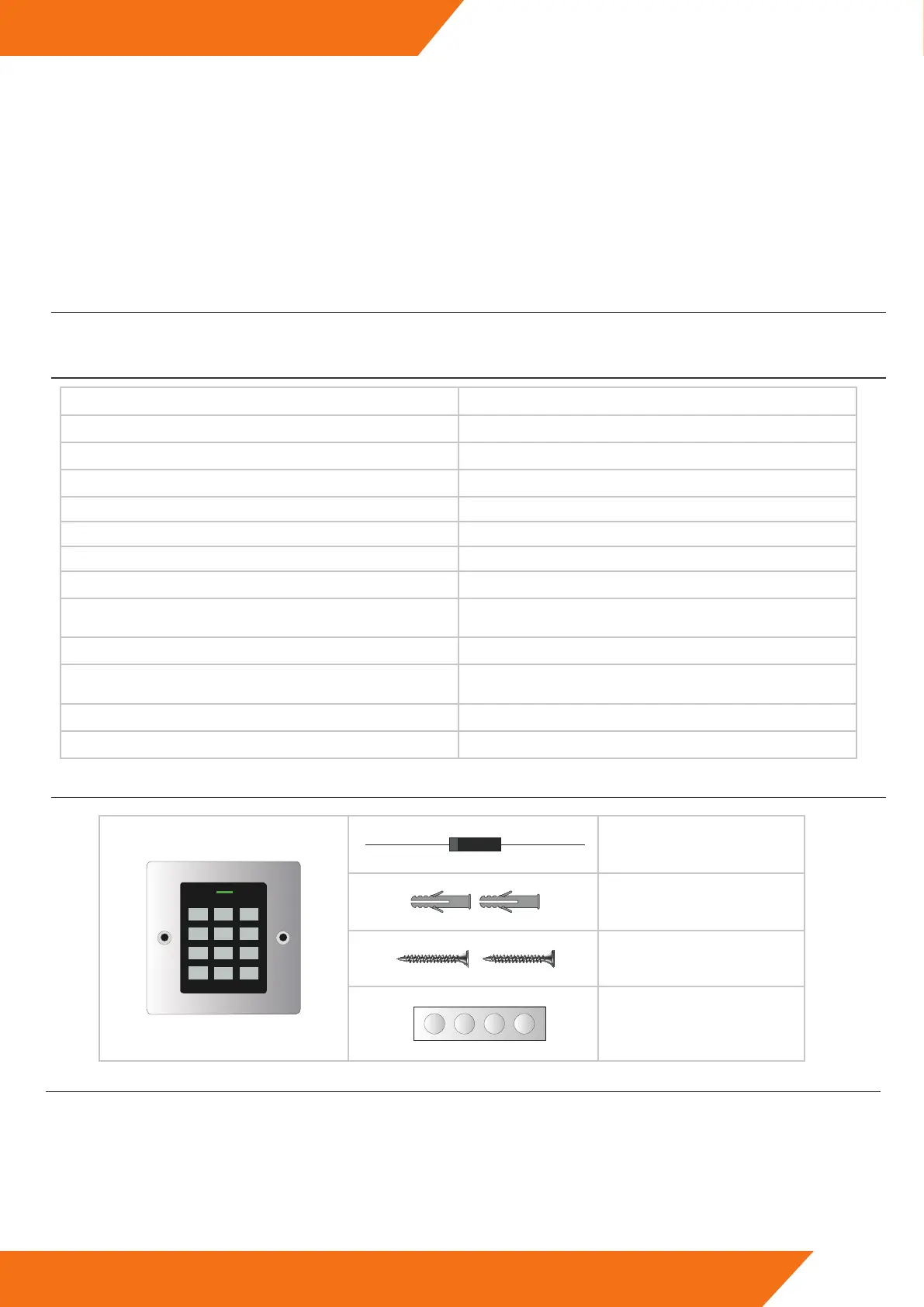

2.INTRODUCTION
4.PRODUCT CONTENT
Installation manual for CODEPROX-N reader. Proximity and PIN reader for stand-alone and slave operation.
3.SPECIFICATIONS
Material Stainless steel and black ABS plastic
Protection degree IP-66
Input voltage 12/18Vdc
Current Standby current: ≤ 30mA / Active: ≤ 120mA
Capacity 990 users
Keypad 12 keys
Reading frequency EM 125KHz
Reading range 0-6cm
Relay
NO, NC, common
2A max.
Transmission format Wiegand 26
Dimension (H x W x D):
Electronics: 48(W) x 62(H) x 25(D)mm.
Electronics plus front cover: 86(W) x 86(H) x 25(D)mm
Working temperature range: -40 ~60° C
Working humidity range: 10-98% (non-condensing)
Lector CODEPROX-N
Diode.
Fixing blocks.
Screws.
Screw cover labels.
1
2 3
4
5 6
7
8 9
*
0 #
13.2.Programming ........................................................................................................................................................ 10
13.2.1.Programming card ........................................................................................................................................ 10
13.2.2.Programming PIN ......................................................................................................................................... 11
14.Types of installation ........................................................................................................................................11
14.1. Stand-alone installation ................................................................................................................................... 11
14.2.Installation on Nexa panel ................................................................................................................................ 12
5.INSTALLATION
is reader is intended for mounting/integration in Nexa panels, which requires the use of an adapter module.
However, it can also be mounted independently on a specic embedding box (universal embedding box is not valid).
See chapter “14. TYPES OF INSTALLATION” to proceed.

golmar CODEPROX-N Specifications

General

Brand	golmar
Model	CODEPROX-N
Category	IP Access Controllers
Language	English
