NOTE: e door opener (AP) does not activate the lock release until the pulse on the CODEPROX-N reader has been nished. To avoid opening
delays set the minimum pulse time to 1 second at the reader:

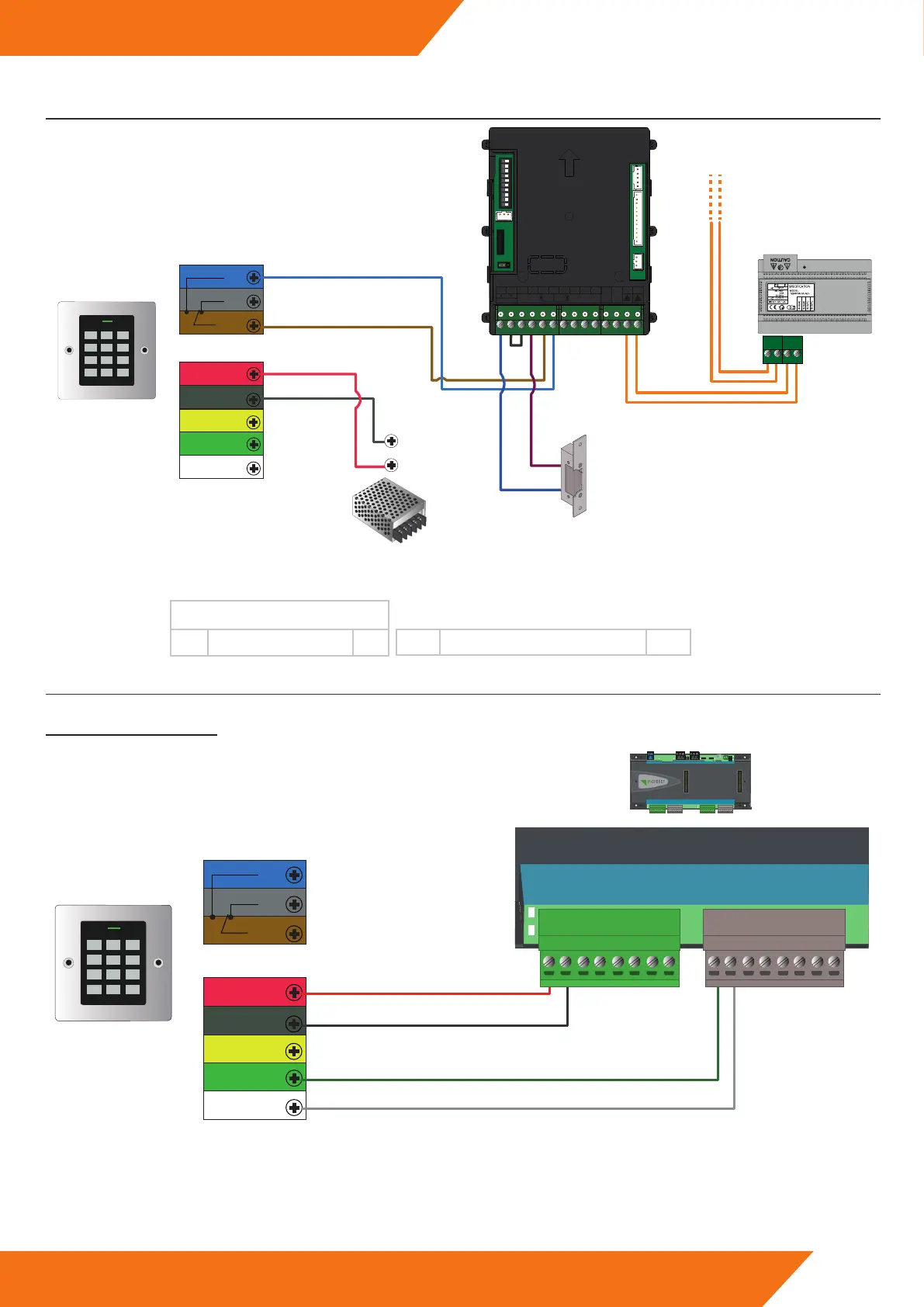

12.CONNECTION DIAGRAM WITH VIDEO DOOR SYSTEM
NC
COM
NO
OPEN
GND
D1
DO
Blue
Grey
Brown
Red
Yellow
Green
Black
+12V DC
+12V
GND
AP+
+
AP+
C1
NA1
AP-
C2
NA2
GND
BUS
Relé 2Relé 1
_
12Vdc
1
2
BUS
NC2
CCTV
1 2 3 4 5 6 7 8 9 10
ON
RST
GND
CLK
SDA
3V
Aout
BUS(M)
BUS(PL)
AP+
AP-
+ NA1
-
C1
Lock release
12Vdc/270mA
White
1
2 3
4
5 6
7
8 9
*
0 #
Enter administrator mode
*
MASTER CODE
#
4
1
#
13.WIEGAND
13.1. CONNECTION DIAGRAM
e following chapter describes how to use the CODEPROX-N reader in an iP Opener system with a Wiegand controller.
NC
COM
NO
OPEN
GND
D1
DO
Blue
Grey
Brown
Red
Yellow
Green
Black
+12V DC
White
Door 1
12V+ 0V REX+ REX-/DS- DS+
C
NC NO WO W1 GREEN LED RED LED BUZZER LED 3 TAMPER 0V
Door 1
12V+ 0V REX+ REX-/DS- DS+
C
NC NO WO W1 GREEN LED RED LED BUZZER LED 3 TAMPER 0V
Door 2
12V+ 0V REX+ REX-/DS- DS+
C
NC NO WO W1 GREEN LED RED LED BUZZER LED 3 TAMPER 0V
1
2 3
4
5 6
7
8 9
*
0 #
