Tekna Uno monitor, T-540 Uno and T-740 Uno telephones are described on

this annex; as well their programming procedures. System assembly and

wiring is detailed on the instructions manual (T631/PLUS ML or T500SE ML)

that's enclosed with the door panel.

Tekna Uno monitor, T-540 Uno and T-740 Uno telephones are fully compatible

with Tekna Plus monitor, T-540 Plus and T-740 Plus telephones. However,

see the instructions manual

(T631/PLUS ML "page 115" or T500SE ML "page 116") that's enclosed with

the door panel.

If the distance from the door panel to the farest monitor or telephone is longer

than 200 meters, or the building has more than 200 apartment units, a

RDPlus/UnoSE repeater must be installed.

a Uno communications resistor must be setting with the SW1

configuration dip switch of the door panel,

IMPORTANTNOTICE

f.

i.

j.

l.

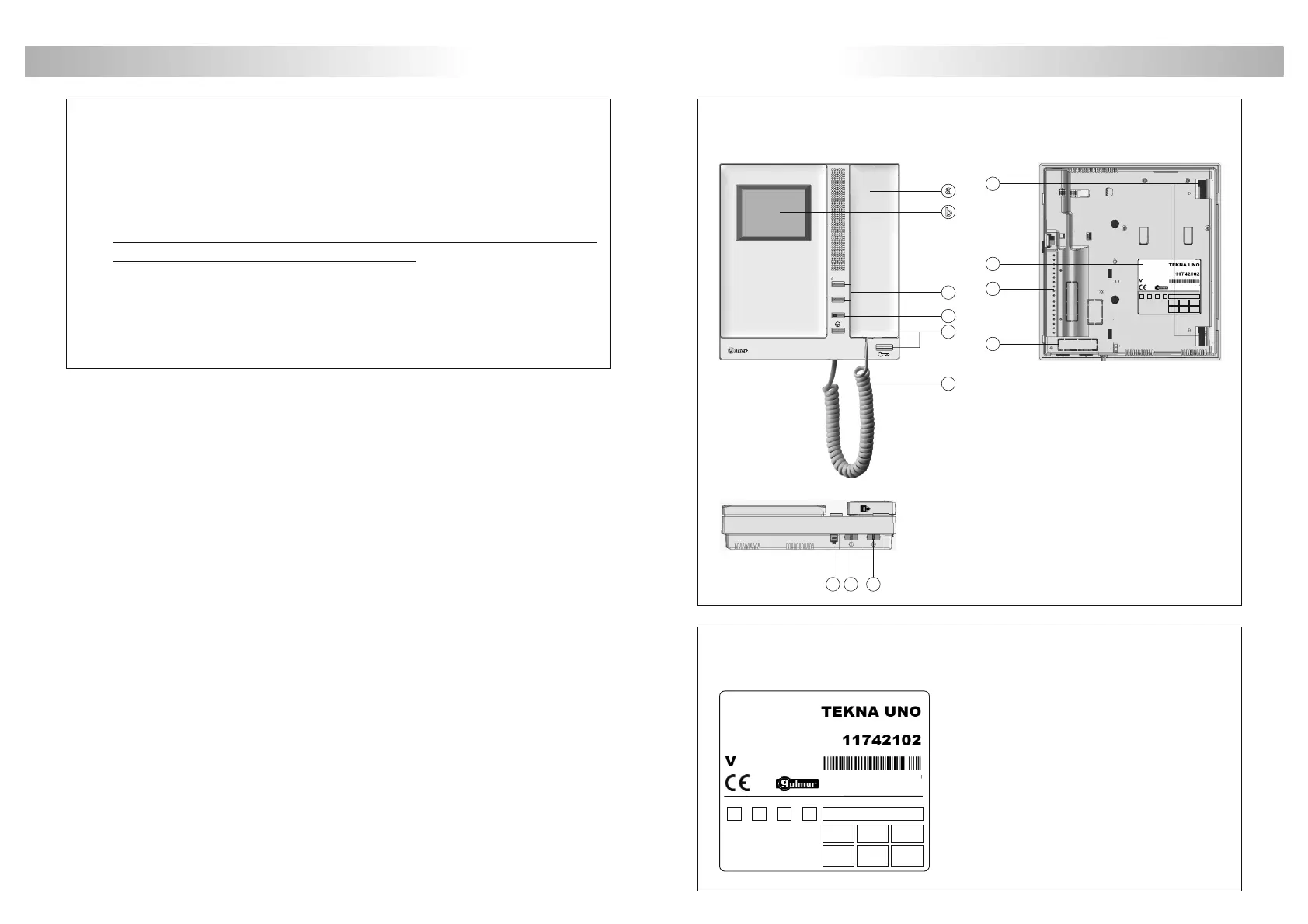

escriptionoftheTeknaUnomonitor.

Handset.

B/Worcolorscreen(dependingonthemodel).

Dummypushbuttons.

On-Offlightindicator.

Functionpushbuttons.

Cord.

Attachmentholes.

Identificationlabel.

Connectingpoints.

CN2connector.

Cableslot.

Contrastcontrol(colorcontrolincaseof

colorscreen).

Brightnesscontrol.

escriptionoftheidentificationlabel.

MONITORDESCRIPTION

For an easiest repair, replacement or increasement of the

existing monitors, fill the indentifying label information.

MASTER: master monitor.

SLAVE: slave monitor.

INTER: not available.

A1: not available.

CODE: push button code (*).

STAIR: backbone code (building) (*).

(*) Refer to the instructions manual

(T631/PLUS ML or

T500SE ML) that's enclosed with the door panel.

00000000000

.xx

CODE

REF.

MASTERINTER A1 SLAVE CODE

ESCALERA

STAIR

PISO

FLOOR

PUERTA

DOOR

ATENCIÓN

Altatensión.Noabrirlatapa.

Manipularsóloporpersonal

delserviciotécnico.

WARNING

Highvoltage.Don'topencover.

Handleonlybytechnicalservice.
