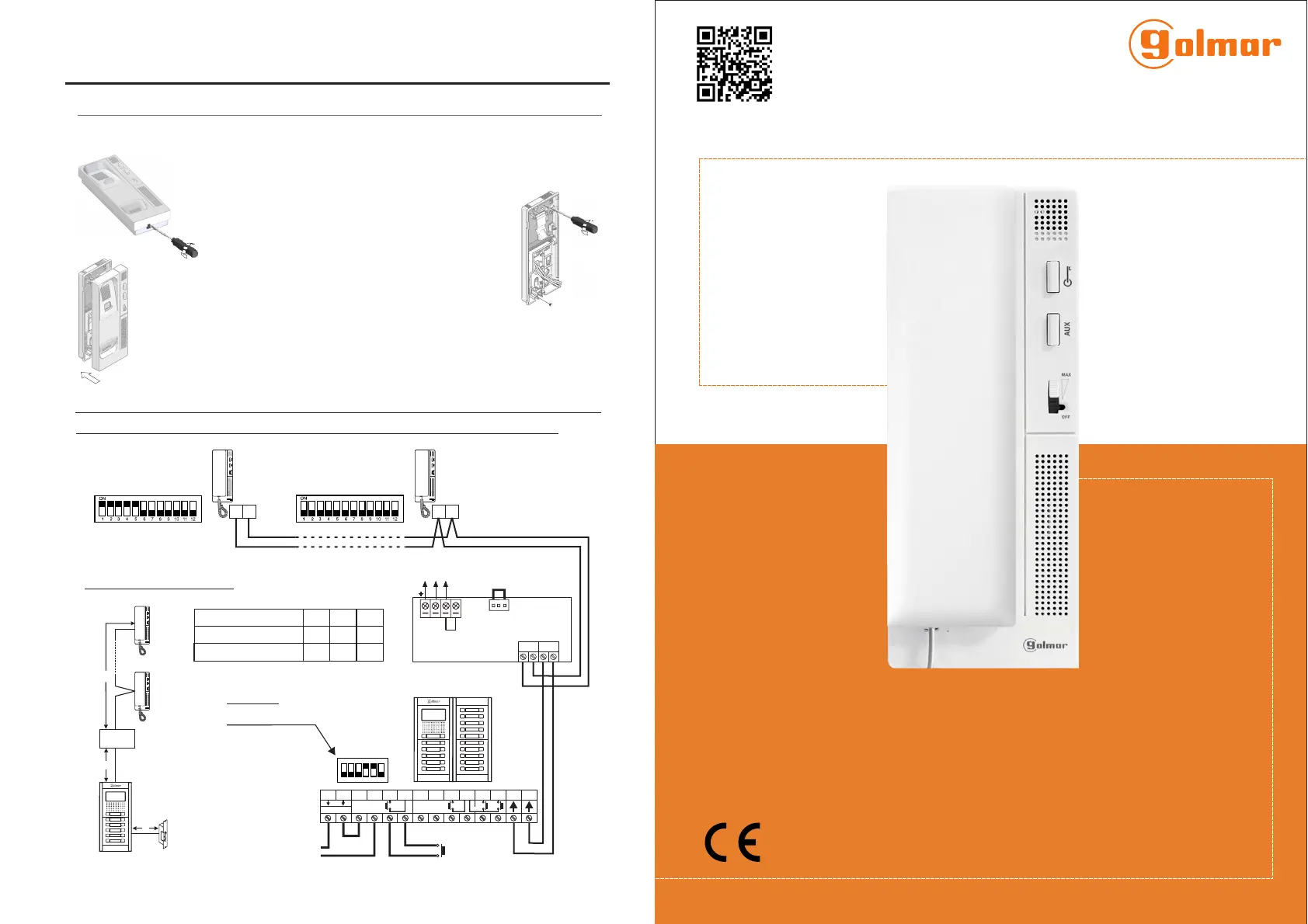

golmar T562 GB2 Quick Guide

4
*
( )
T562 TEL ONGB2 EPH E
QUICK GUIDE
T562 G 2B TELEPHONE
TELEPHONE INSTALLATION
*
( )
To open the telephone ainsert plain
screwdriver and gently asinto the slots lever
shown in the d .rawing
To secure directly to the wall, drill two 6mm. holes at
the specified positions. Use 6mm. wall plugs and
Ø3.5 x 25mm screws.
Pass the installation wires through the corresponding
hole and connect them to the terminal block. Close
the telephone as shown on the picture. Once the
telephone is closed, connect the handset using the
telephone cord and put it on the cradle.
Avoid placing the telephone near sources of heat, in dusty locations or smoky environments.The
telephone can be secured using an electrical embedding box or directly to the wall.
Installation for 32 apartments/T562 GB2 telephones and Golmar D.C. lock release.
Access paneldoor
NA2
+
AP-
C1
NA1
AP+
C2
AP+AP-
P1 P2
BUSBUS
Relay 2
Relay 1
_
12Vdc
Lock release
max. 12 Vdc/270mA.
ON
1 2 3 4 5 6
AP
SW1
CODE 0
Twisted pair 2x0.75mm
Twisted pair 2x1mm
60m
A
60m
B
80m 80m
Cable
2
2
10m
C
15m
IMPORTANT: Configure the
dip switch as shown in the
diagram.
*
( )
*
( )
INSTALLATION DIAGRAM
CO 31DE
Distances and Cross-Sections:
T562
A
C
B
L1 L2
T-562 GB2
L1 L2
T-562 GB2
MasterMaster
For further information see the “T562 GB2 (code 50121599)” user manual.
https://doc.golmar.es/search/manual/50121599
*
( )
T562
C d. 501215o Web 99 T G 2 E562 B N GR REV.0 11 6
Golmar se reserva el derecho a cualquier modificación sin previo aviso.
Golmar se réserve le droit de toute modification sans préavis .
Golmar reserves the right to make any modifications without prior notice.
golmar@golmar.es www.golmar.es
50121895
Sistemas de comunicación S.A.
FA- 2GB /A
Main
100~240Vac
N L
CN
BUS (M) BUS(PL)
FA- 2GB /A
L
