protected against further use. Repairing, such as assembling
and disassembling the housing is only allowed to skilled
professionals. By repairing it yourself you will loose all
warranties and there is a risk of electric shock and short
circuit.
• Motion sensors are not suitable for use as components of an
alarm system. They can trigger false alarms if the installation
place has been chosen unfavourably.
• For working with mains voltage, attend to the effective VDE
advices. In doubt, let the product be installed by a trained
Engineer.
2 Description and Function:
This product is an infrared motion sensor for indoors and
outdoors and is specied as installation material. It reacts to
heat radiation (infrared radiation) of moving objects that enter
the detection area of the sensor, eg. people and animals, etc.
The sensor must „see“ the area which is monitored. Thermal
radiation propagates in a straight line, but is stopped by glass or
other solid objects.
Entering the detection area of the sensor switches the connec-
ted electrical consumer on and after a (adjustable) time off again
automatically. A built-in photocell prevents working of the motion
sensor during sunlight. In addition, the ambient brightness can
be adjusted by a regulator.

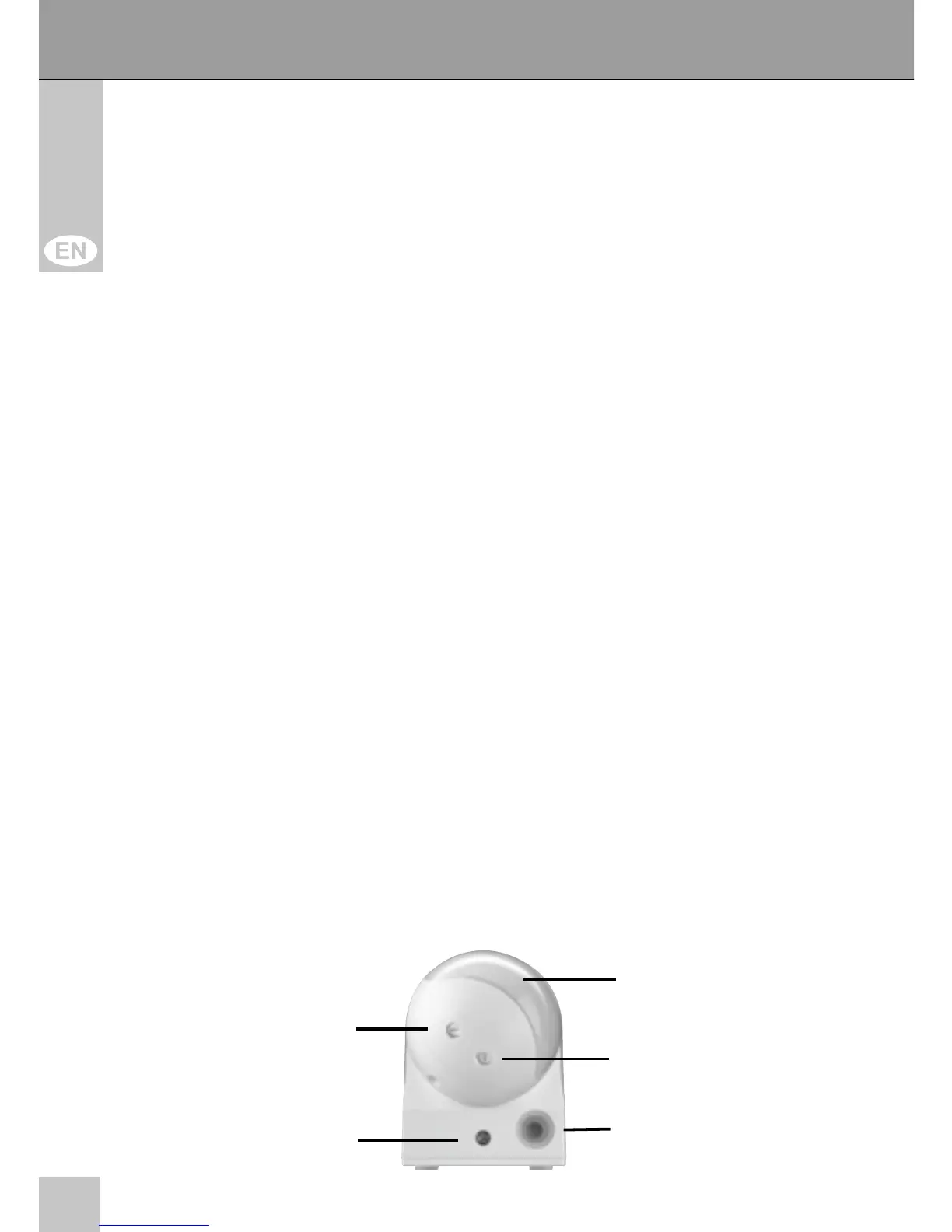

95174 / 96000: sensor
lighting photosensi-
time vity
cable drain
mounting
screw
