Rudder gyro gain setting

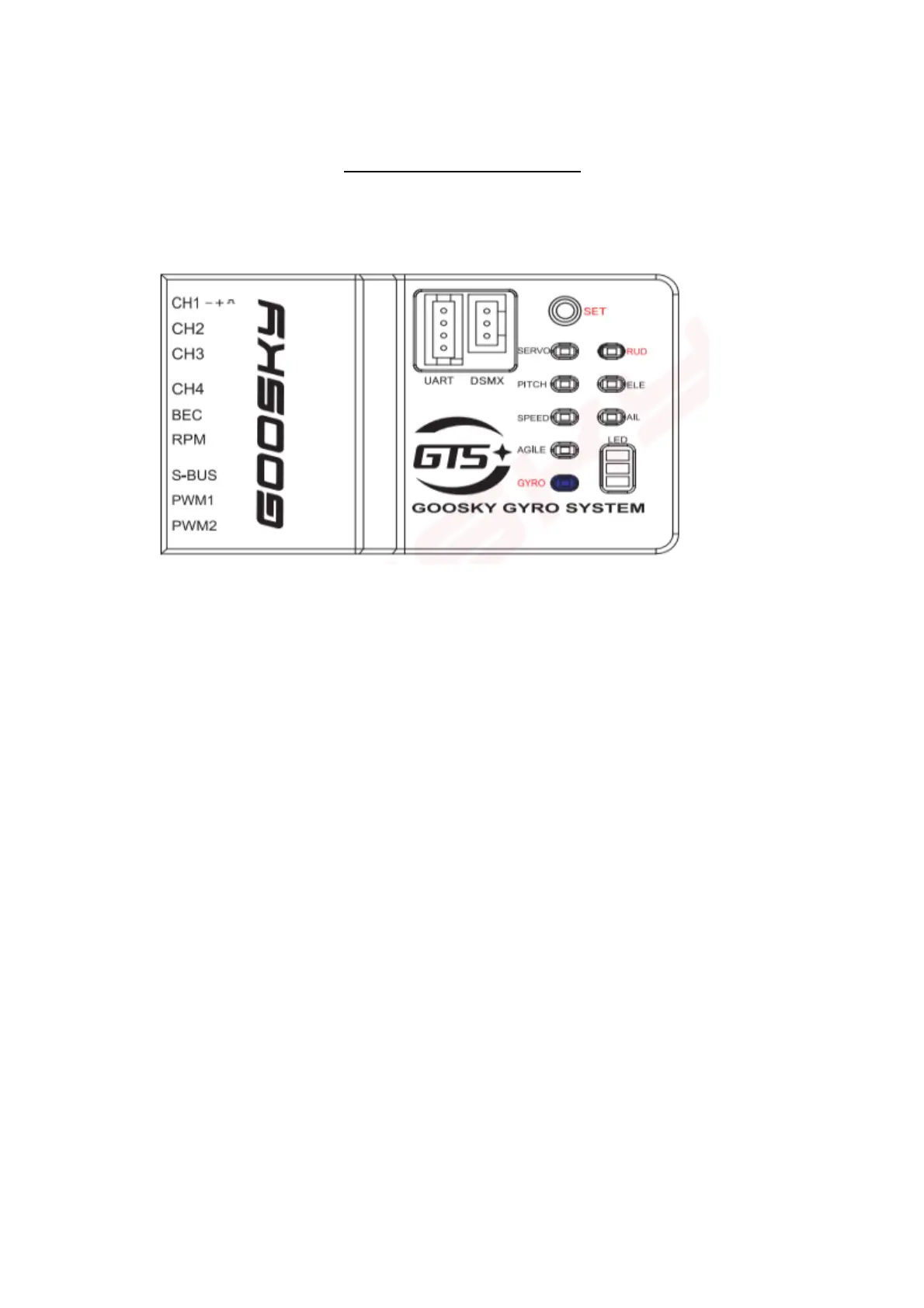

RUD light is solid-on → click SET → GYRO light flashes
Press and hold the SET button for 3 seconds to enter the adjustment mode, short
press the SET button until the indicator light RUD is solid-on and the GYRO light
flashes. The factory default rudder gain is 5 and you will see the BLUE light flashing 5
times followed by a pause.
You can use the Elevator stick of the transmitter to raise and lower the setting, forward
stick giving a higher setting (higher gain) and back stick to give a lower setting. The
number of consecutive flashes represents the setting level. The highest setting is 9
and the lowest setting is 1 flash (lowest gain).
After completing setting changes, press and hold the SET button for 3 seconds to exit
and save, then the indicator light turns off and you are ready to fly. Or to move to the
next setting, click the SET button.
