50
Figure 3- 26
Figure 3- 27

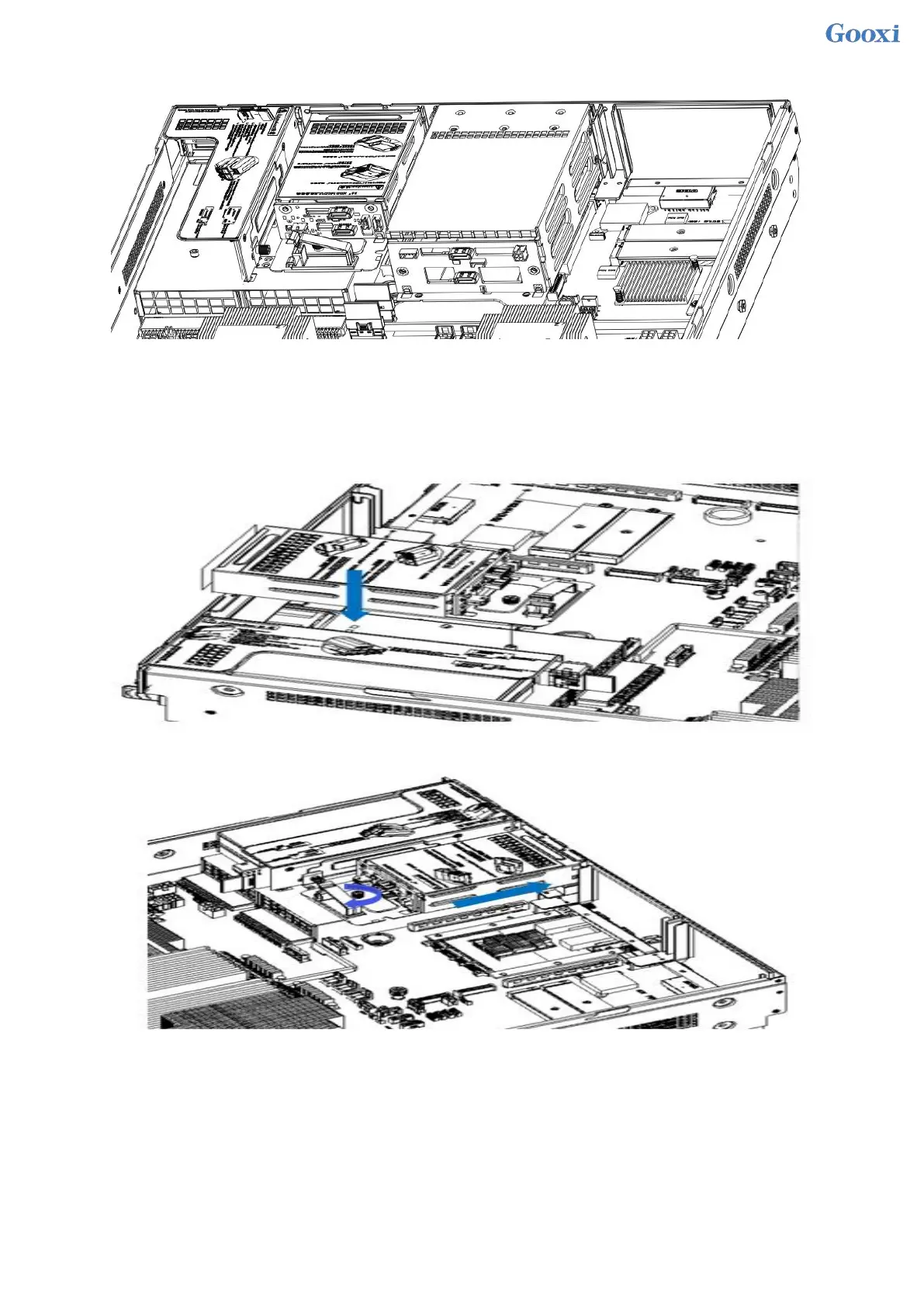

Rear 2.5-inch hard disk enclosure installation
1. Place vertically downward and align with the guide pin at the lower end
2. After placing it flat, push it in the direction of the arrow to the end.
3. Lock the captive screw
Figure 3- 28
Figure 3- 29
3.11 Installation of Power Module
Steps: Push the power supply to the end in the direction of the arrow, and after the shrapnel wrench on the right
makes a clicking sound, it means the installation is in place;
