7
Pedal(L) 1 17 Computer
1
8
Adjustment Knob 1 18 Fixing Bolt
2
9
Seat post 1 19 Handlebar
1
10
M8 Nylock nut 3

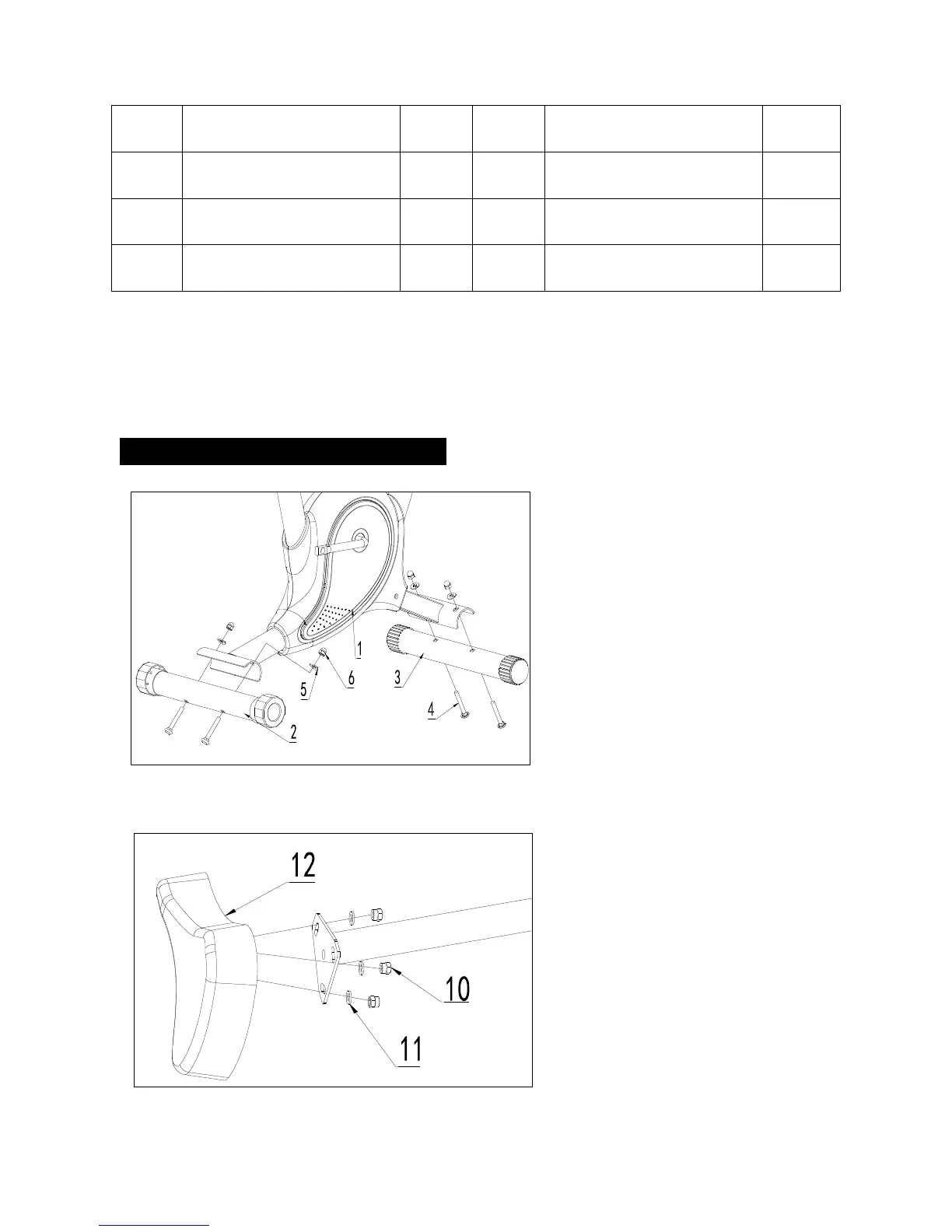

ASSEMBLY INSTRUCTIONS
1.
Attach the Front Stabilizers (pt. 3) to
the Main Frame (pt. 1) using 2 sets of M8
Domed Nuts (pt. 6),
Ø
8 Curved Washers
(pt.5) and M8x60mm Carriage Bolts (pt.
4). Slide the Rear Stabilizer (pt.2) into the
Main Frame (pt. 1), making sure the open
side of the bracket is facing up, as shown,
then fix with 4pcs
Ø
8 Washer (pt. 5), 2pcs
M8x60mm Carriage Bolts (pt. 4).and 2
sets of M8 Domed Nuts (pt. 6).
2.
Fix the Seat (pt. 12) to the Seat post
by using the three sets of Washers (pt.
11) and three Nylock Nuts (pt. 10)
located under the seat.
