3.

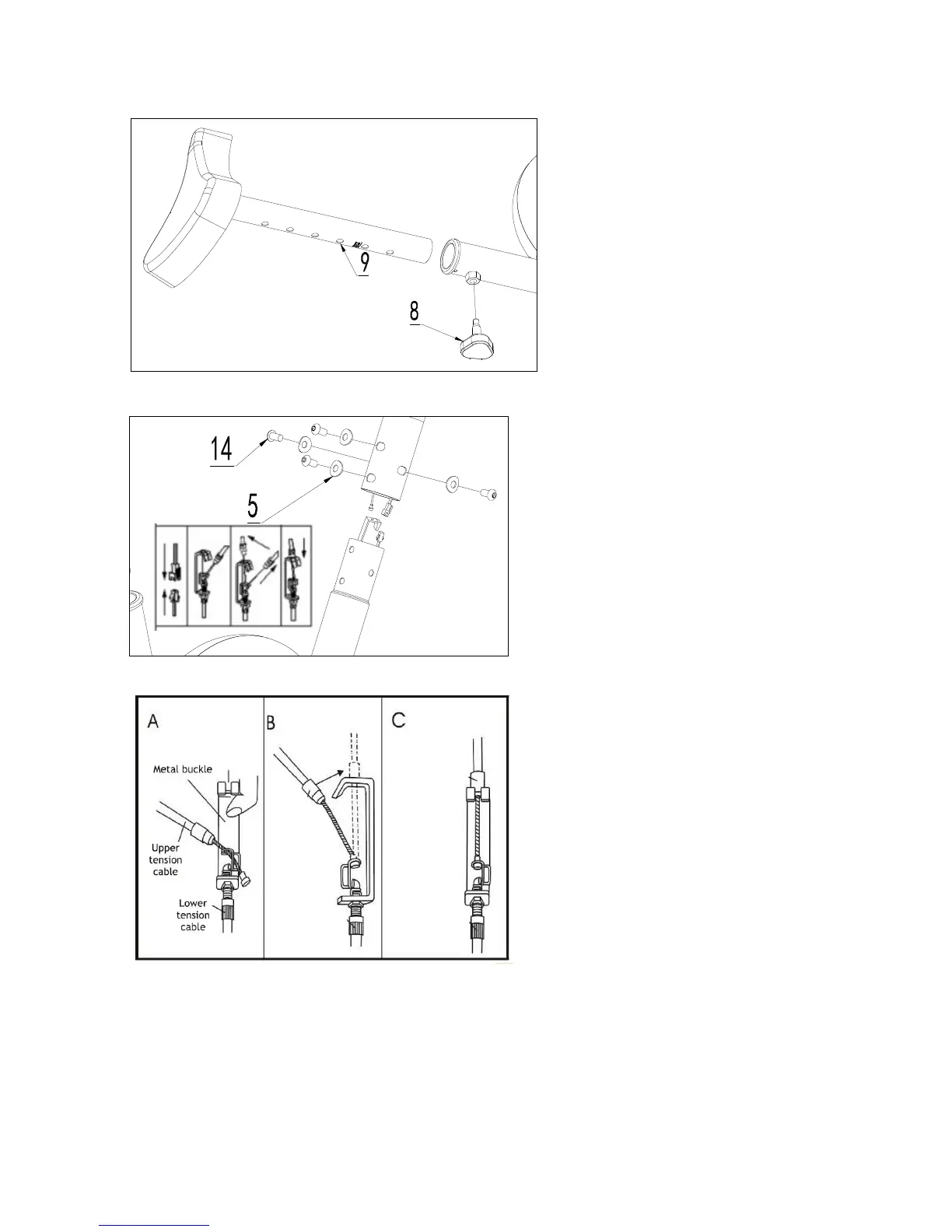

Insert the Seat Post (pt. 9) into the
Seat Post housing and line up the
holes (The correct height adjustment
can be made when the bike is fully
assembled) Secure the seat in position
with the Adjustment Knob (pt. 8).
4.
Take the Front Post (15)and connect the
Upper Computer Wire with Lower
Computer Wire(See picture A,B,C) .Then
Slide the Front Post into the front post
housing, then fix with 4 allen key Bolts
(pt. 11) and
Washer. Be careful not to
cut the sensor wires.
